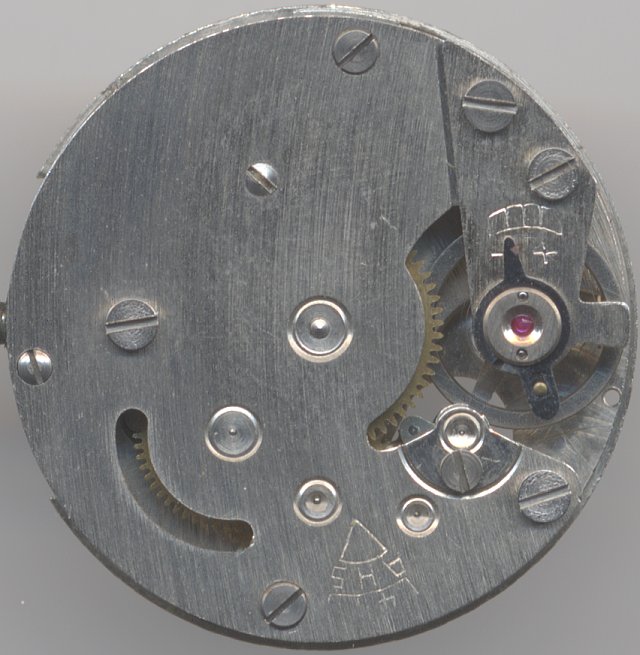

AHS 41
 |
| AHS 41 |
|
Description
The AHS caliber 41 is similar in size and functions to the
Caliber 40. The only difference is,
that the balance wheel runs in synthetic jewels, which is good for the
precision, but bad for the survival of bad shocks.
This movement is also available in different versions; the one displayed here
has got a double plate on the balance.
 |

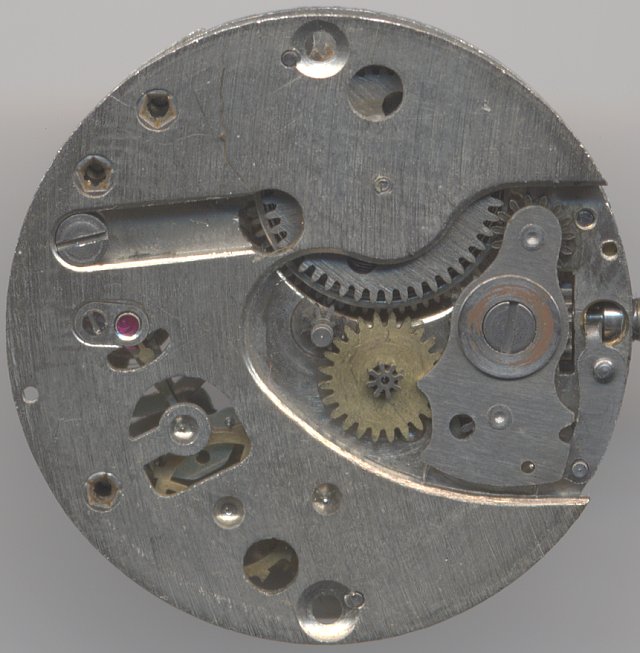

| dial side view |
|
Technical data
| Manufacturer | AHS |
| Caliber | 41 |
| Number of jewels | 4 |
| Escapement | pin lever |
| Balance | Nickel |
| Shock protection(s) | none |
| Balance cock direction | clockwise |
| Hairspring stud | fixed |
| Regulator type | Long regulator arm |
| Movement construction | Fork, Escapement wheel, Fourth wheel, Third wheel, Center wheel, Mainspring barrel |
| Features | s |
| Functions | Hour, minute, small second |
| Beats per hour | 18000 |
| Size | 101/2''' |
| Image in Flume Werksucher | 1962 26 |
|
| Factsheet |

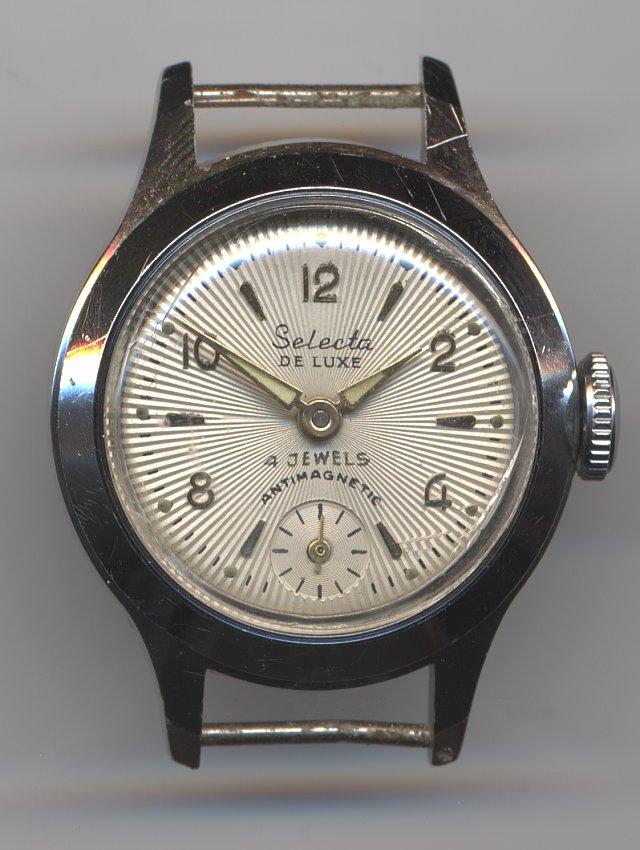

Usage gallery
