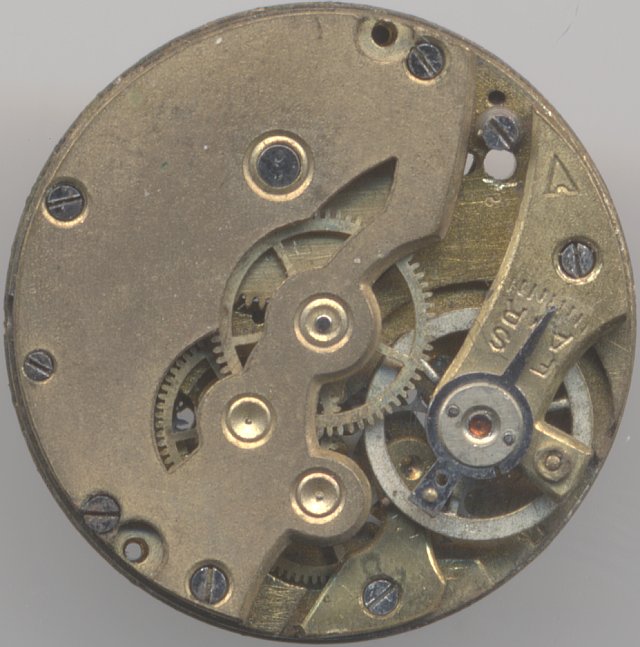

AM 575
 |
| AM 575 |
|
Description
This is another movement from the Adolf Michel S.A. under the roof of the Ebauches
Trust organization. It is not marked any further, except the two letters "JF" below the
balance. The Flume Werksucher from 1947 identifies it as AM 575.
It is a very simple cylinder movement with only one jewel on the balance cock. On the dial
side, there is a rocking bar winding mechanism, and the ratched wheel is only safed by a spring.
Nevertheless, watches with those kind of movements were worn for many years, you only should't pay
too much attention to precision and reliability.
 |

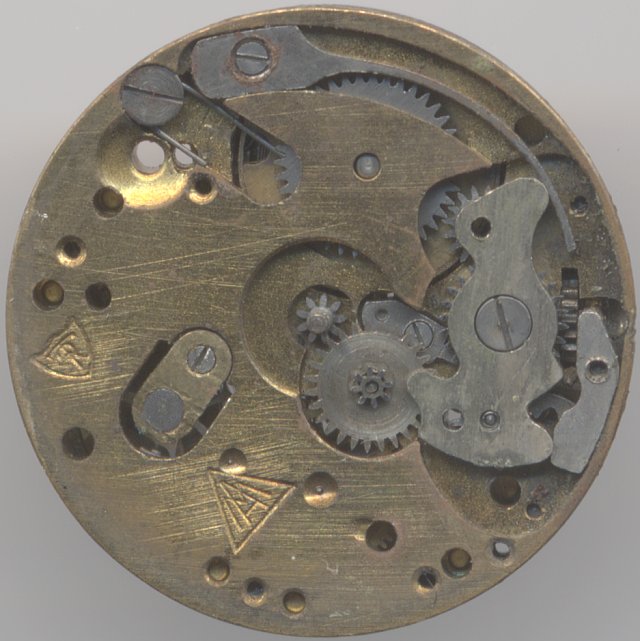

| dial view |
|
Technical data
| Manufacturer | AM |
| Caliber | 575 |
| Number of jewels | 1 |
| Escapement | cylinder |
| Balance | Nickel |
| Shock protection(s) | none |
| Balance cock direction | clockwise |
| Hairspring stud | fixed |
| Regulator type | Long regulator arm |
| Movement construction | Escapement wheel
Fourth wheel, Third wheel, Center wheel, Mainspring barrel |
| Functions | Hour, minute |
| Beats per hour | 18000 |
| Size | 83/4''' |
| Image in Flume Werksucher | 1947 98 |
|
| Factsheet |
