Arogno 2
 |
| Arogno 2 |
|
Description
A very old handwinding movement with cylinder escapement is the Arogno 2, which was
made probably in the 1920ies.
On the movement side, you see the typical attributes of an old cylinder movement: Slanted
bridges, a safety clutch in an antique shape, a non shock protected balance with long
regulator arm on the cock and of course the gilt color of the plates.
 |

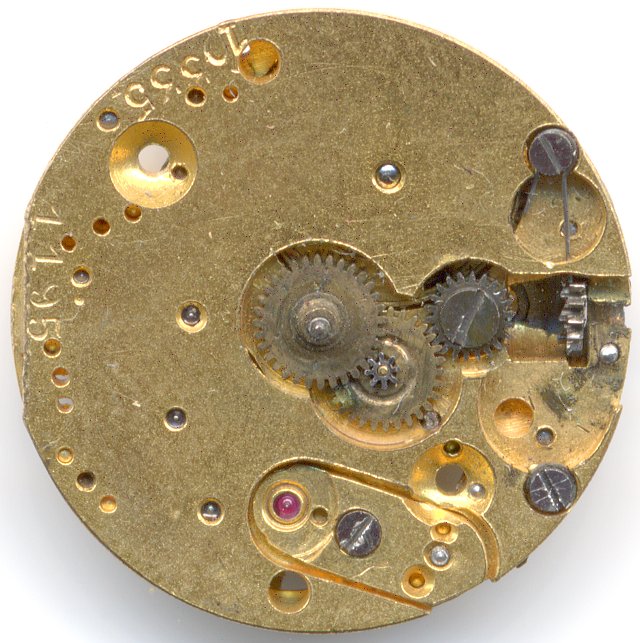

| dial side view |
|
On the dial side, this unmarked movement offers a small surprise: Here, a yoke winding system
is used already - without pin for function chance (winding vs. time setting).
Technical data
| Manufacturer | Arogno |
| Caliber | 2 |
| Number of jewels | 10 |
| Escapement | cylinder |
| Shock protection(s) | none |
| Balance cock direction | counterclockwise |
| Hairspring stud | fixed |
| Regulator type | Long regulator arm |
| Movement construction | Escapement wheel
Fourth wheel, Third wheel, Center wheel
Mainspring barrel |
| Winding mechanism | yoke |
| Functions | Hour, minute |
| Beats per hour | 18000 |
| Size | 9''' (measured: 19,6 mm) |
| Image in Flume Werksucher | 1947 96 |
|
| Factsheet |
