AS 1001
 |
| AS 1001 |
|
Description

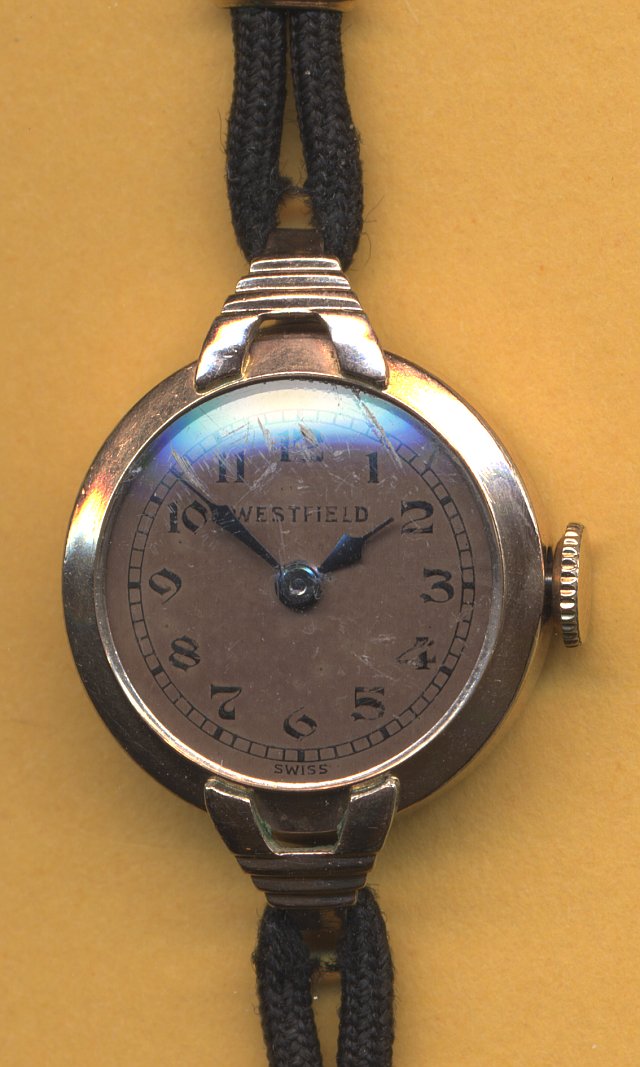

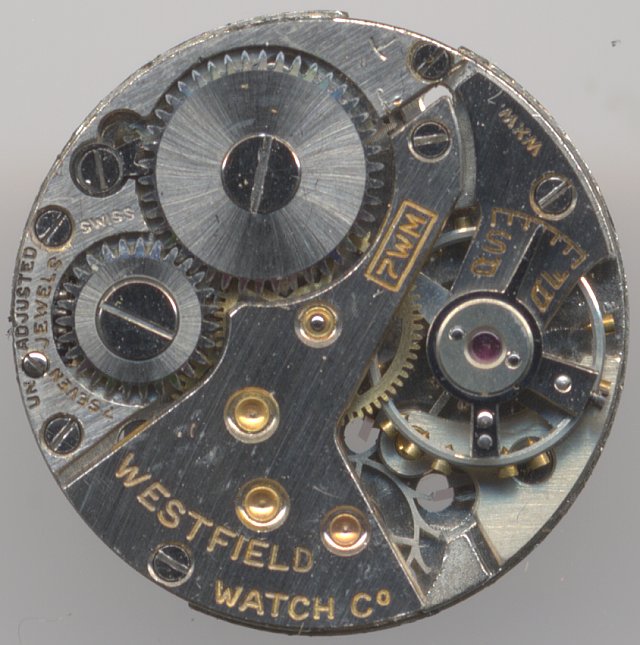

The AS 1001 shown here was in that 7-jewel version a movement, which was made probably
for the export into the USA. The import code "WXW" was used by Westfield.
The bearings are not made of synthetic rubis, but by metal bushings. Only
the balance staff and the anchor pallets were left as synthetic rubis.
The rest of this movement is a classical constructed tiny ladies' watch movement,
which represented the technical state of the art of the thirties and fourties.
 |

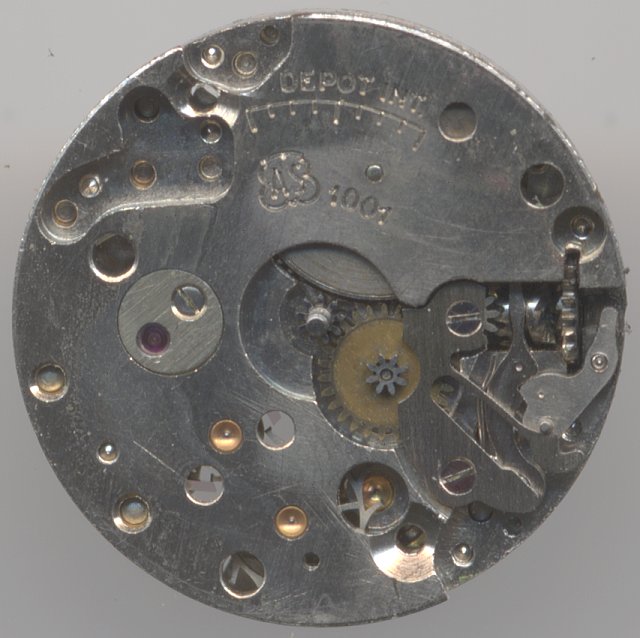

| dial side view |
|
Technical data
| Manufacturer | AS |
| Caliber | 1001 |
| Number of jewels | 7 |
| Escapement | Anchor with pallets |
| Balance | Nickel screw balance |
| Shock protection(s) | none |
| Balance cock direction | clockwise |
| Hairspring stud | fixed |
| Regulator type | Long regulator arm |
| Movement construction | Fork
Escapement wheel, Fourth wheel, Third wheel, Center wheel
Mainspring barrel |
| Functions | Hour, minute |
| Beats per hour | 18000 |
| Size | 73/4''' |
| Image in Flume Werksucher | 1947 18 |
|
| Factsheet |
Usage gallery
