AS 1012 / Dugena 870
 |
| AS 1012 |
|
Description
This is a rather old but high quality form movement of a ladies' watch. It was available in
different versions, with Glucycur screw balance as well as with ring balance and
shock-protected chatons.
Dugena marked this movement as
Dugena 870 and Consul as
Consul 55.
 |

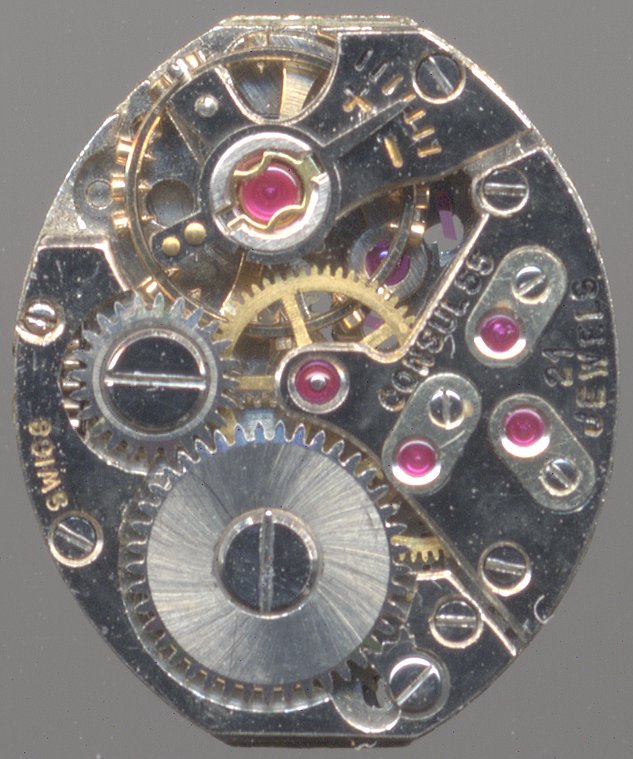

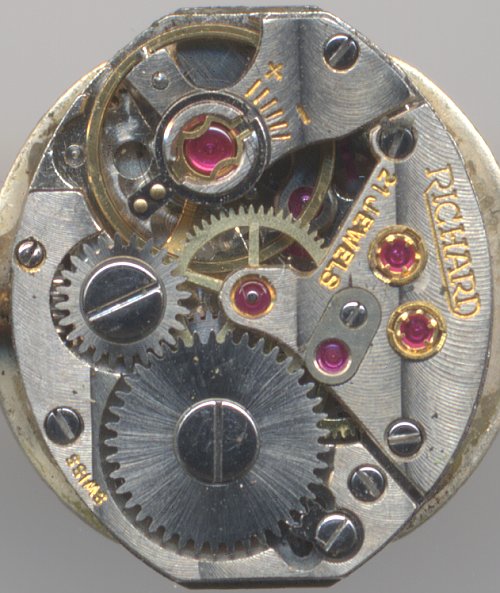

| AS 1012 21 Jewels, screwless balance |
|
 |

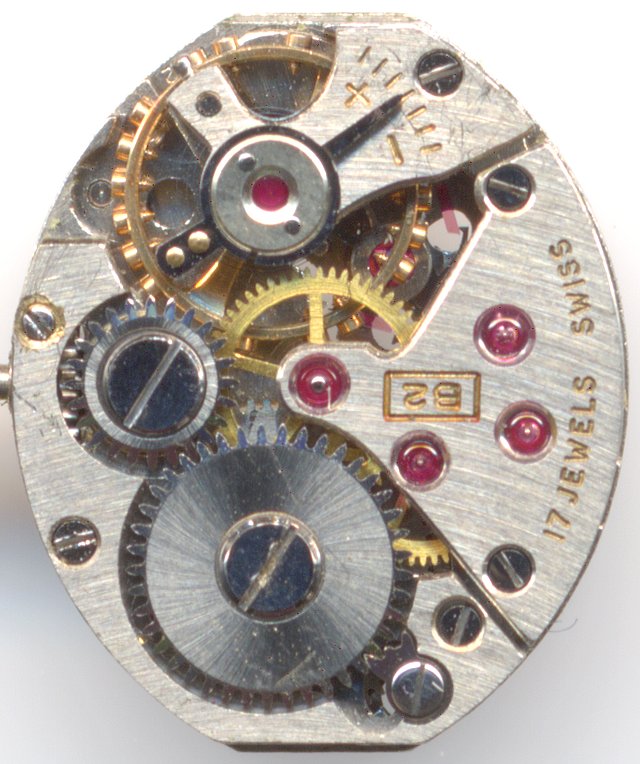

| early version without shock protection |
|
 |

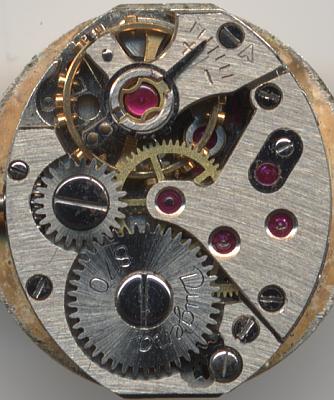

| AS 1012 17 Jewels / Dugena 870 |
|
 |

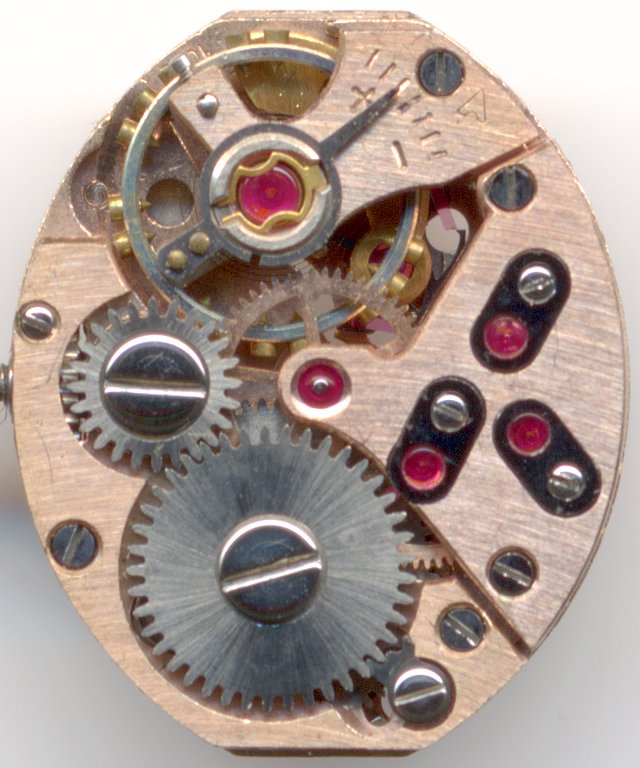

| Version with normal screw balance |
|
 |

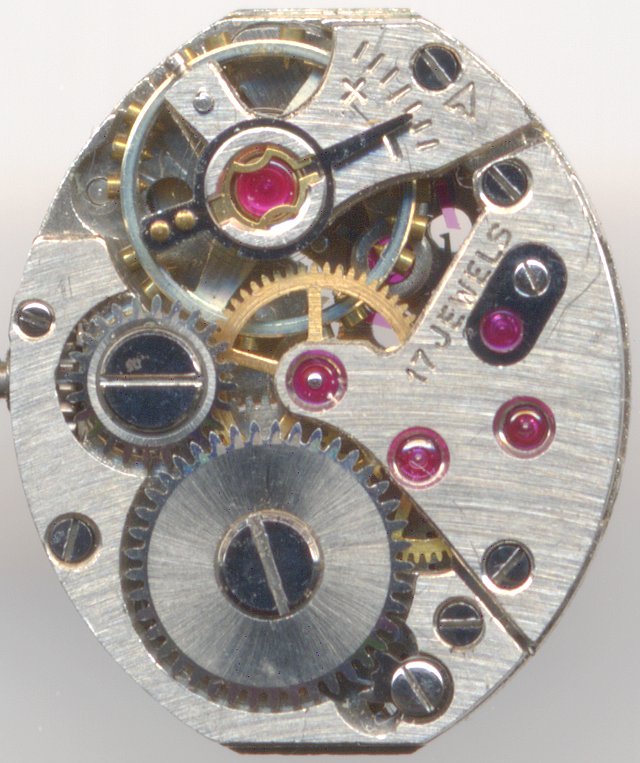

| Version with normal screw balance and 17 jewels |
|
 |

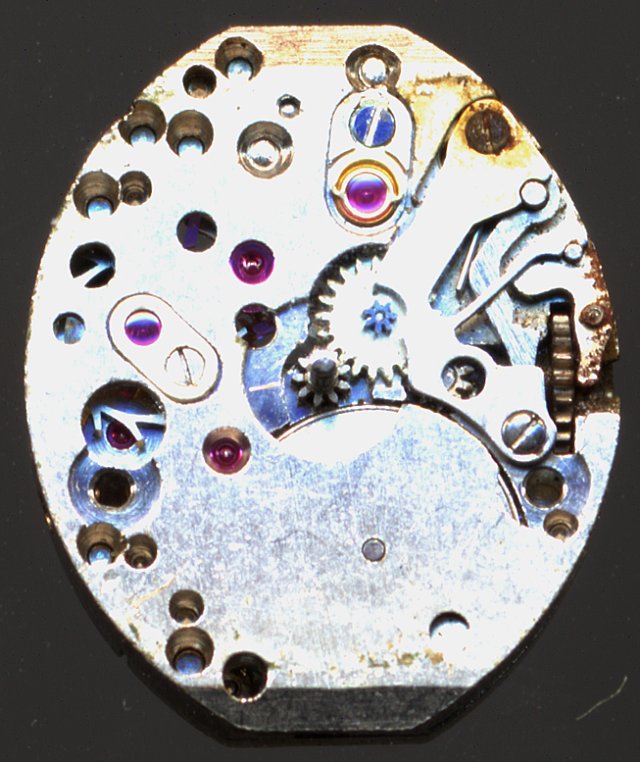

| dial view |
|
 |

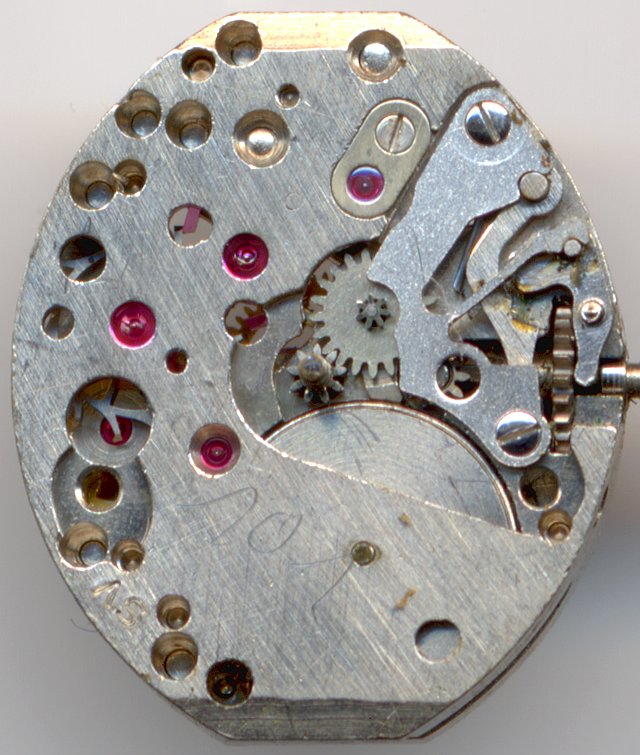

| dial view, version without shock protection |
|
 |

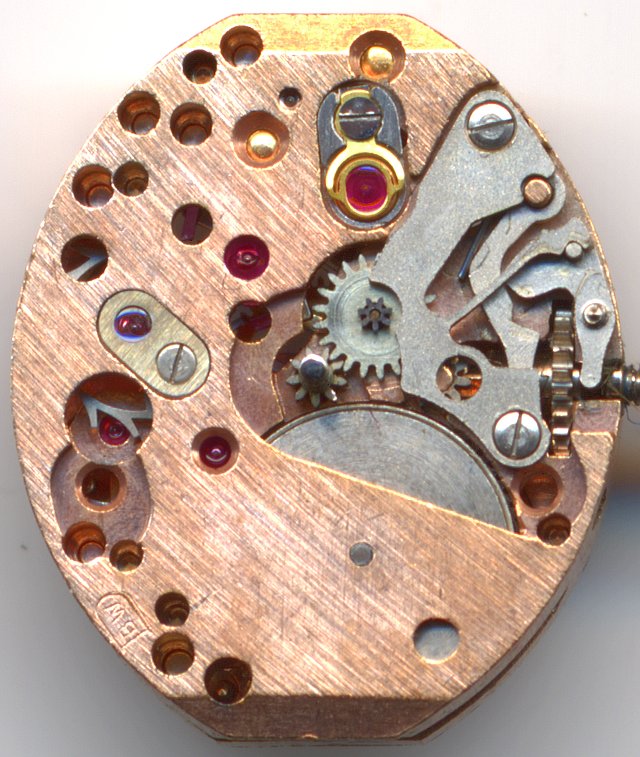

| dial side view, version with normal screw balance |
|
 |
| dial side view, version with normal screw balance and 17 jewels |
|
Technical data
| Manufacturer | AS |
| Caliber | 1012 |
| Number of jewels | 17/21 |
| Escapement | Anchor with pallets |
| Balance | Glucydur / Glucydur screw balance |
| Shock protection(s) | Incabloc,none |
| Balance cock direction | counterclockwise |
| Hairspring stud | fixed |
| Regulator type | Long regulator arm/Hairspring key |
| Movement construction | Fork
Escapement wheel, Fourth wheel, Third wheel, Center wheel
Mainspring barrel |
| Construction type | solid construction |
| Bridge shape | Jetski, 4 gears |
| Winding mechanism | yoke |
| Setting lever spring | 3 holes |
| Functions | Hour, minute |
| Beats per hour | 18000 |
| Size | 51/2''' (measured: 12,8 x 15,0 mm) |
| Production time | 1936 - 1960 |
| Image in Flume Werksucher | 1949 19 |
|
| Factsheet |

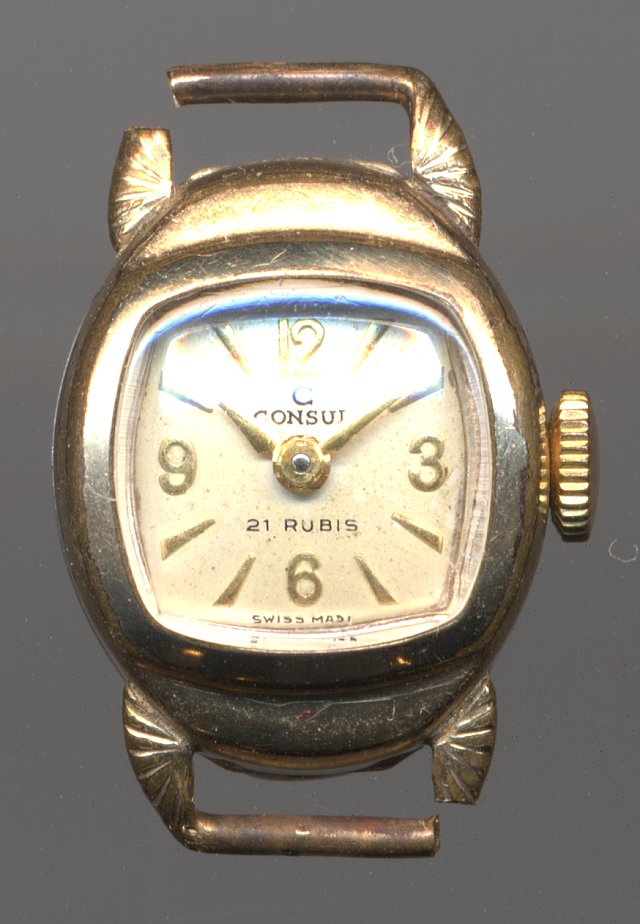

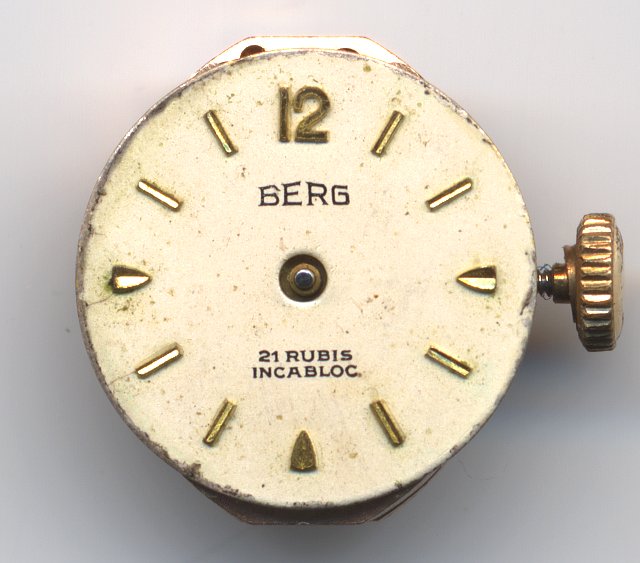

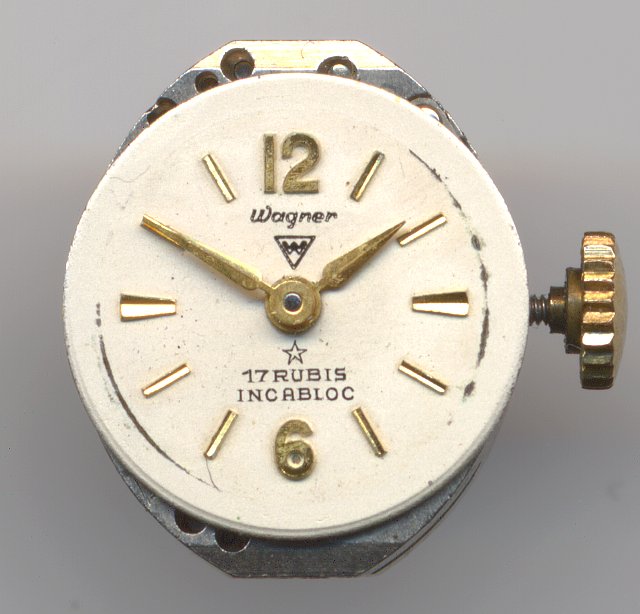

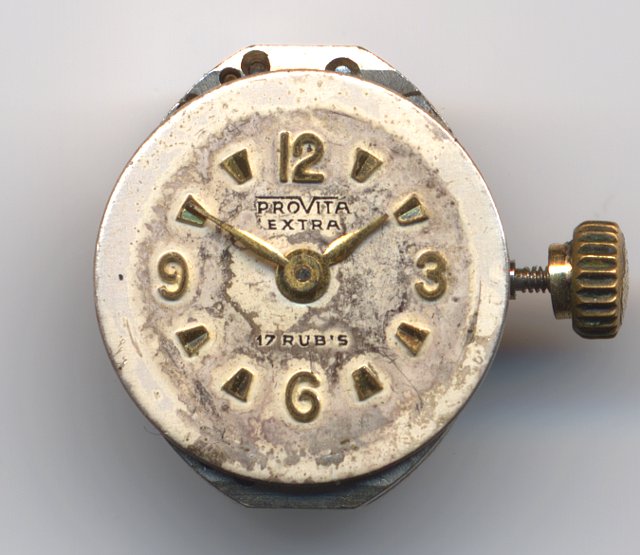

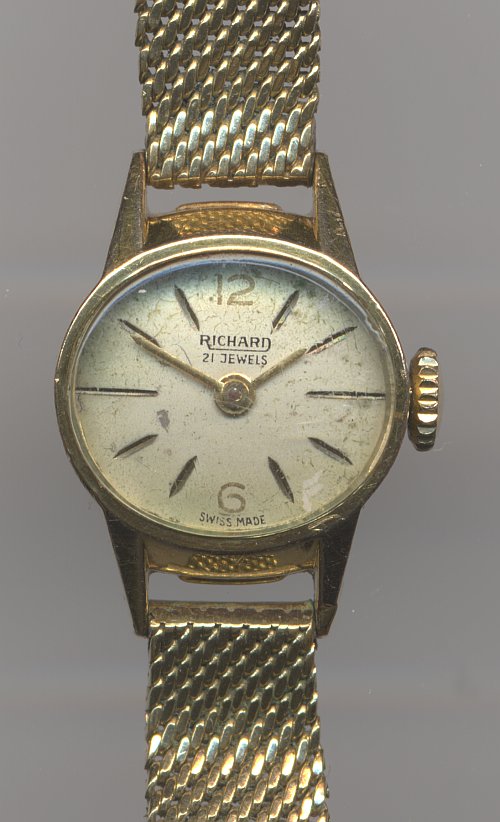

Usage gallery
This movement in the non-shock-protected version,
in the version with normal screw balance and in the
version with 17 jewels and normal screw balance were donated by
Harald Hoeber.
Thank you very much!
