AS 1051
 |

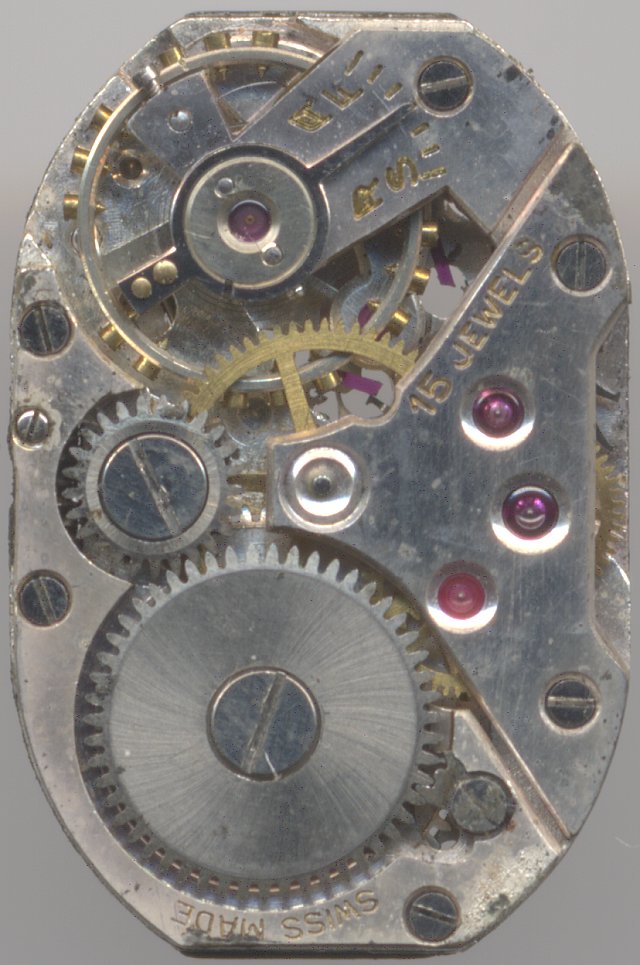

| AS 1051 |
|
Description
The AS 1051 is a ladies' watch form movement, which still has got the
older, larger size of 5 3/4 x 8 3/4 lignes. Due to its sice and the missing
shock protection, it was probably made in the 1940ies.
 |

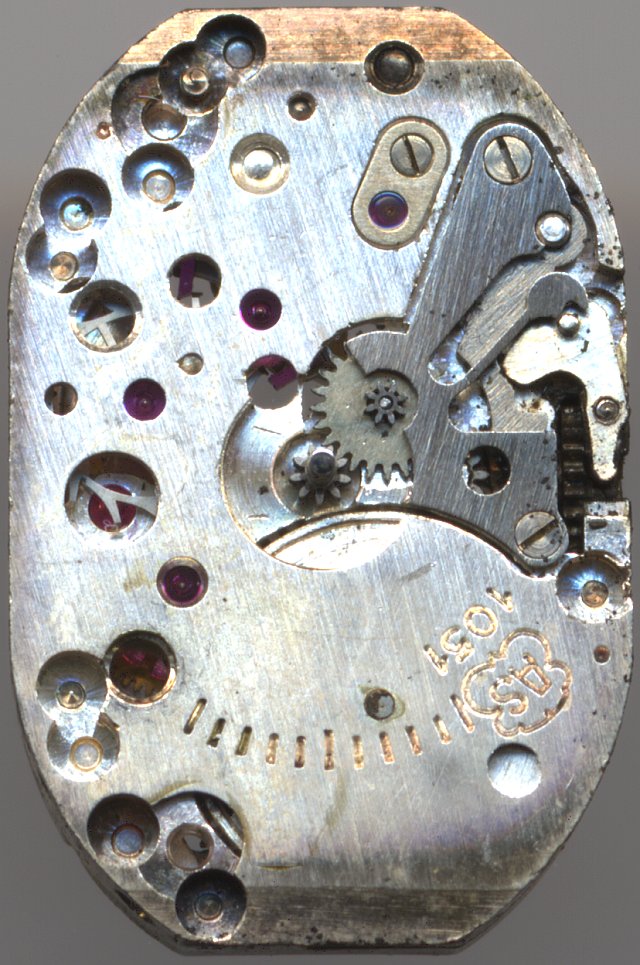

| dial side view |
|
Technical data
| Manufacturer | AS |
| Caliber | 1051 |
| Number of jewels | 15 |
| Escapement | Anchor with pallets |
| Balance | Nickel screw balance |
| Shock protection(s) | none |
| Balance cock direction | counterclockwise |
| Hairspring stud | fixed |
| Regulator type | Long regulator arm |
| Movement construction | Fork
Escapement wheel, Fourth wheel, Third wheel, Center wheel
Mainspring barrel |
| Functions | Hour, minute |
| Beats per hour | 18000 |
| Size | 53/4 x 83/4''' |
| Image in Flume Werksucher | 1947 119 |
|
| Factsheet |

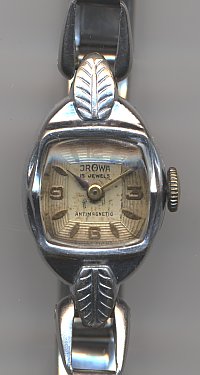

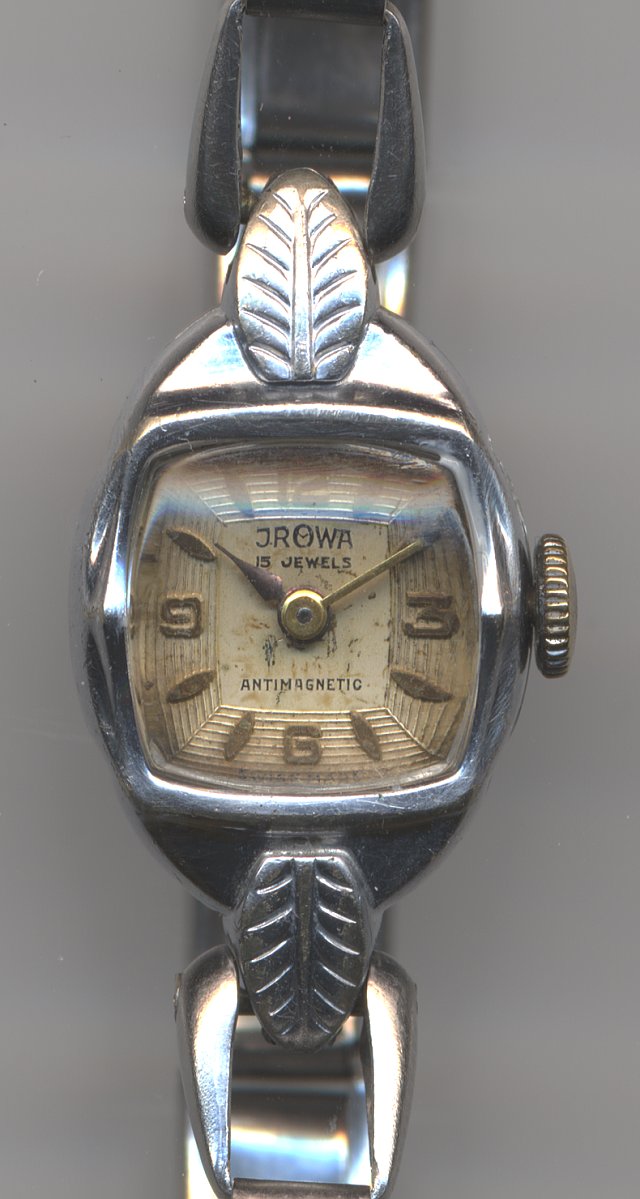

Usage gallery
