AS 1187
 |
| AS 1187 |
|
Description
The AS 1187 is an old movement can be seen as the precessor of several modern movements,
such as the
caliber 1686.
Since it offers a directly driven center second hand and uses a large minute wheel, it had
to be constructed in two layers, resulting in a large height.
With its screw balance, secured in an Incabloc-Shock protection system, with its large
regulator arm and the yoke winding system on the dial side, it was a classically made
movement.
 |

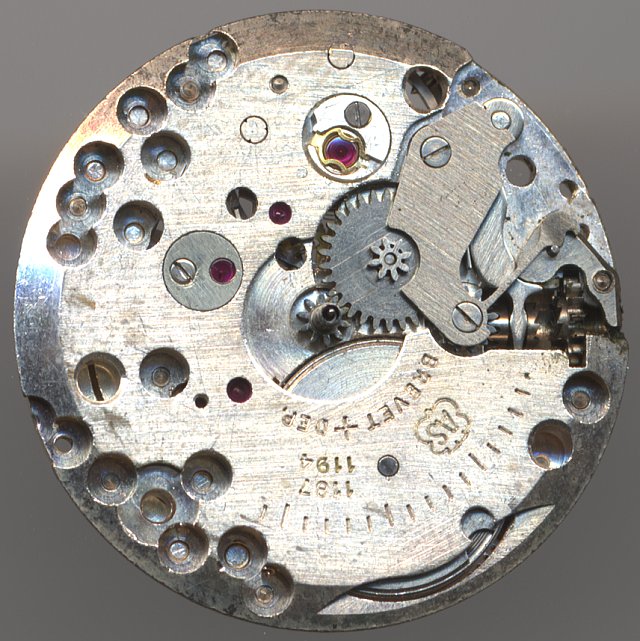

| dial side view |
|
Technical data
| Manufacturer | AS |
| Caliber | 1187 |
| Number of jewels | 15 |
| Escapement | Anchor with pallets |
| Balance | Nickel screw balance |
| Shock protection(s) | Incabloc |
| Balance cock direction | counterclockwise |
| Hairspring stud | fixed |
| Regulator type | Long regulator arm |
| Movement construction | Fork
Escapement wheel, Fourth wheel, Third wheel
Center wheel
Mainspring barrel |
| Features | SCD |
| Functions | Hour, minute, second |
| Beats per hour | 18000 |
| Size | 101/2''' |
| Image in Flume Werksucher | 1952 7 |
|
