AS 1240
 |
| AS 1240 |
|
Description
The AS 1240, probably made in the late 1940ies was a very nice ladies' watch movement,
which already had the ultra modern center second indictation.

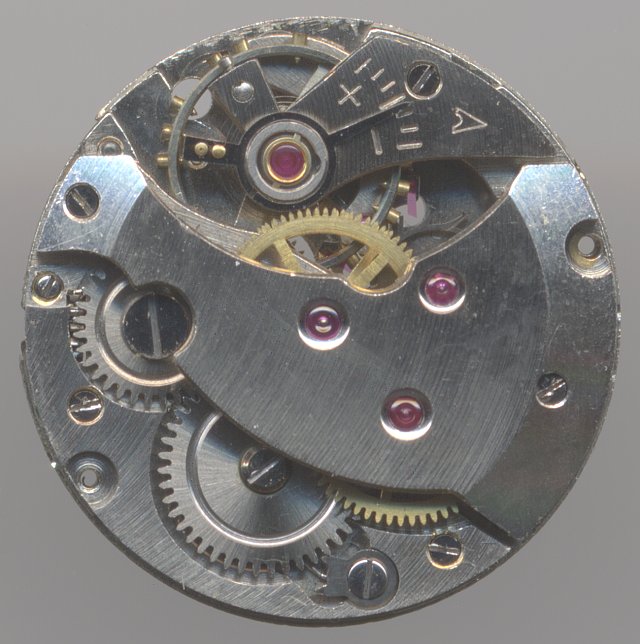

The center second is directly driven in the two-storeyed construction. This is not only
technically interesting (for example because of the very long axle of the anchor wheel), but
also visually very appealing because of the nicely top plate with its strips and its
angled edges.
The nickel screw balance is secured by a two-thigh shock protection system, maybe of
the type Monorex. This is an indication for its old age, too.
 |

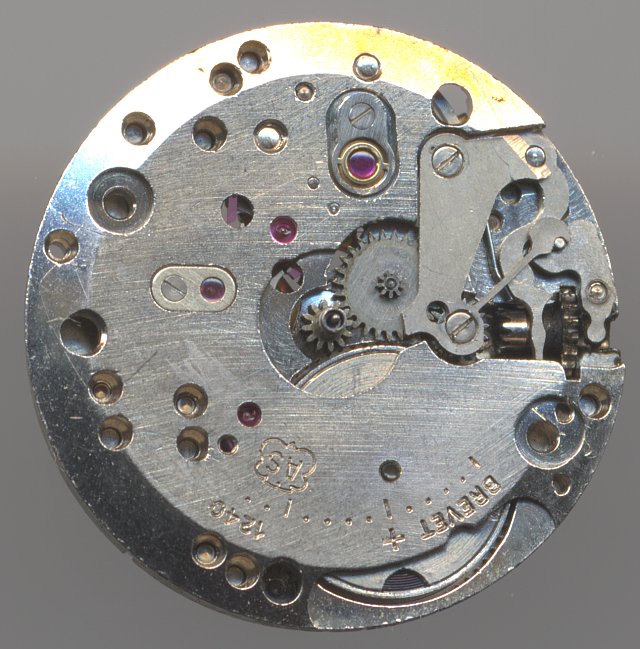

| dial side view |
|
Technical data
| Manufacturer | AS |
| Caliber | 1240 |
| Number of jewels | 15 |
| Escapement | Anchor with pallets |
| Balance | Nickel screw balance |
| Shock protection(s) | MOR? |
| Balance cock direction | counterclockwise |
| Hairspring stud | fixed |
| Regulator type | Long regulator arm |
| Movement construction | Fork
Escapement wheel, Fourth wheel, Third wheel
Center wheel
Mainspring barrel |
| Features | SCD |
| Functions | Hour, minute, second |
| Beats per hour | 18000 |
| Size | 83/4''' |
| Image in Flume Werksucher | 1952 2 |
|
| Factsheet |
