AS 1748/49
Description
In the 1960ies, AS experimented to find out if a winding mechanism, winding
in both directions is better, than a winding mechanism, winding only in one
direction. For this, in that movement, the winding mechanism was an
exchangeable module, located between "6" and "7".

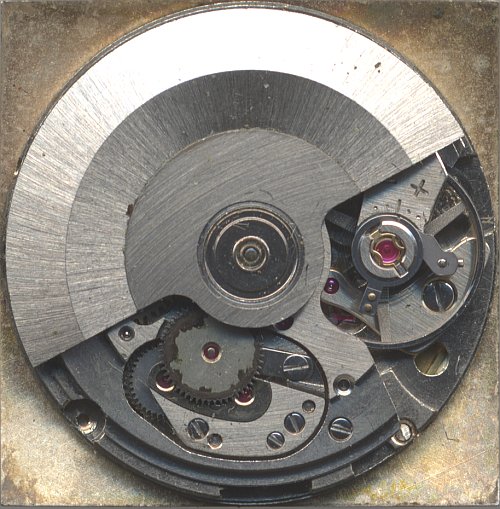

In the movement shown here, a caliber 1749, which extended the base caliber
AS 1748 by a date mechanism, the winding module for only one direction was
built in and so the movement winds only conterclockwise.
Technical data
| Manufacturer | AS |
| Caliber | 1748/49 |
| Number of jewels | 25 |
| Escapement | Anchor with pallets |
| Balance | Nickel |
| Shock protection(s) | Incabloc |
| Balance cock direction | clockwise |
| Hairspring stud | moveable |
| Regulator type | Hairspring key |
| Features | SCD,QG,AUT |
| Functions | Hour, minute, second, day, selfwinding |
| Beats per hour | 18000 |
| Size | 111/2''' |
| Image in Flume Werksucher | K3 184 |
|
| Factsheet |
Usage gallery
 |

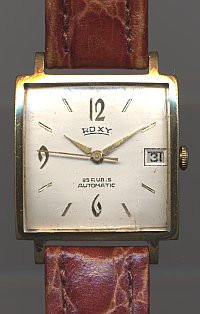

| Roxy Automatic |
|
