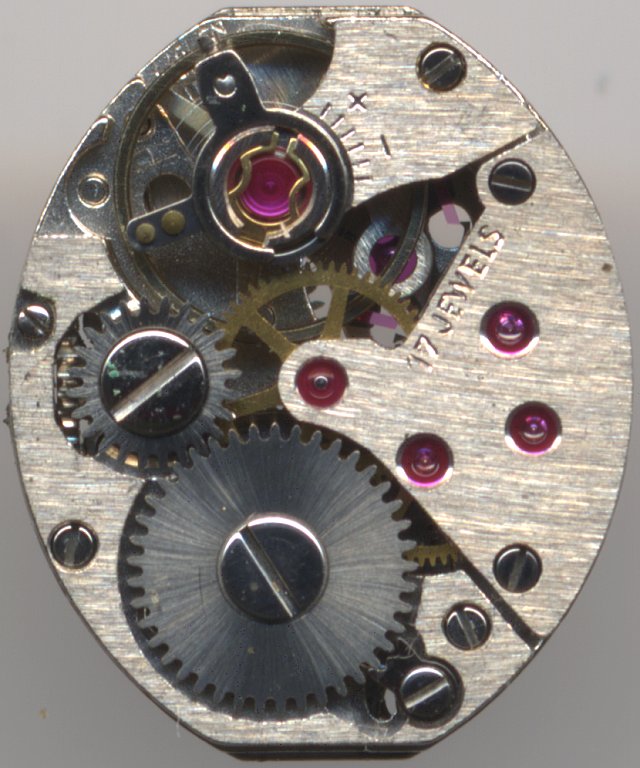

AS 1977
 |
| AS 1977 |
|
Description
The AS 1977, which was made in different Versions and by different
manufacturies (such as the
AS/INT 1977-2 or the
FHF/INT 1977-4), is certainly one of the
best developed ladies' form movements.
It uses seventeen jewels, an Incabloc shock protection and a moveable hairspring
stud. As on most movements of that size, only hours and minutes can be displayed.
 |

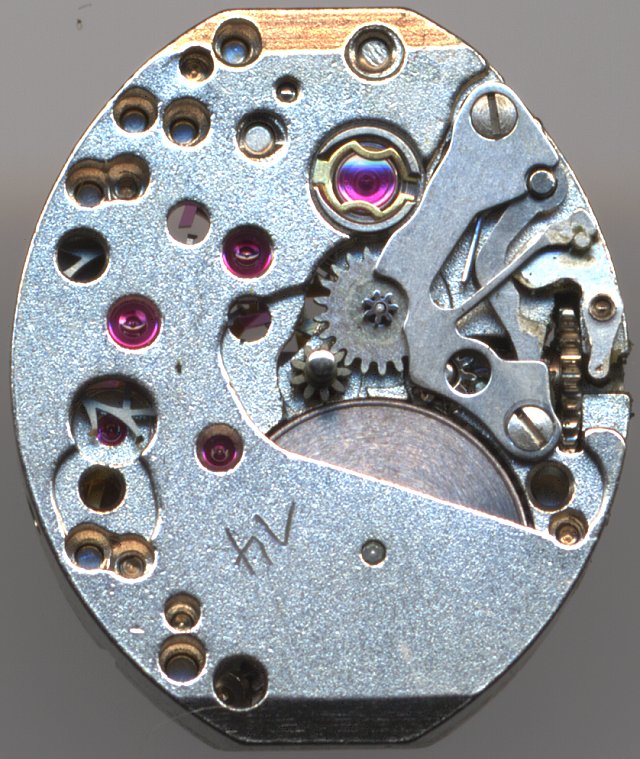

| dial side view |
|
Technical data
| Manufacturer | AS |
| Caliber | 1977 |
| Number of jewels | 17 |
| Escapement | Anchor with pallets |
| Balance | Nickel |
| Shock protection(s) | Incabloc |
| Balance cock direction | counterclockwise |
| Hairspring stud | moveable |
| Regulator type | Hairspring key |
| Movement construction | Fork
Escapement wheel, Fourth wheel, Third wheel, Center wheel
Mainspring barrel |
| Functions | Hour, minute |
| Beats per hour | 21600 |
| Size | 53/4 x 7''' |
| Image in Flume Werksucher | K3 77 |
|
| Factsheet |

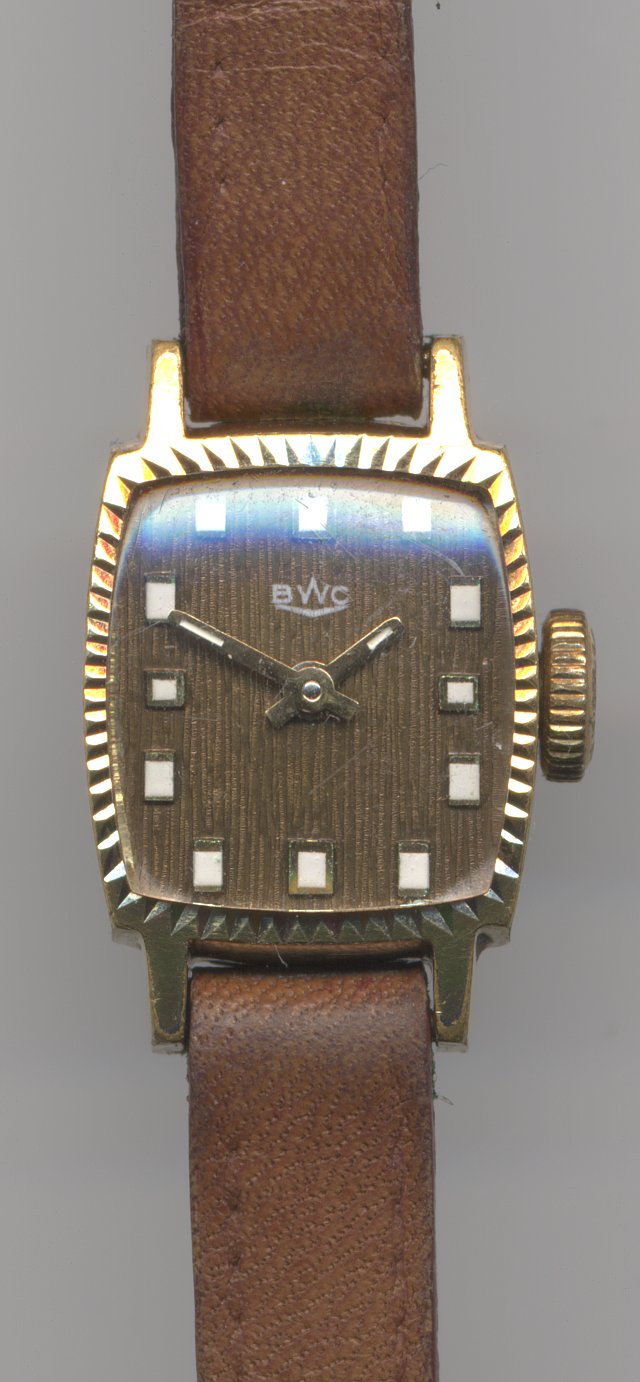

Usage gallery
