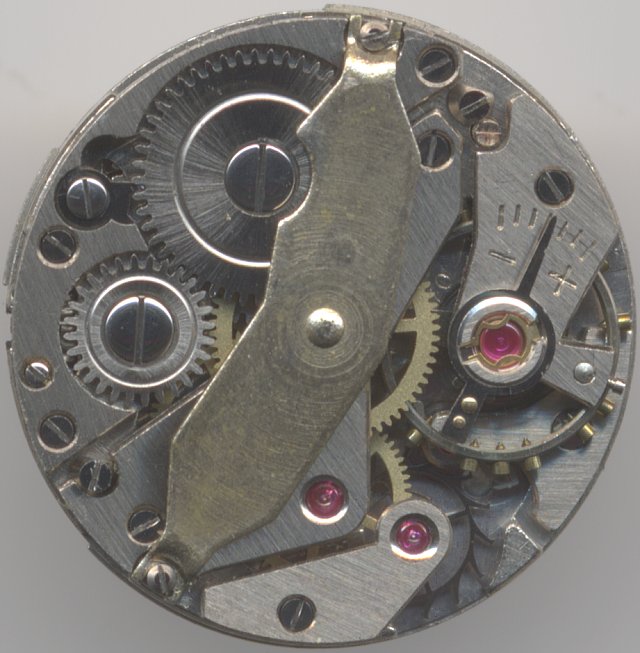

AS 970
 |
| AS 970 |
|
Description
The AS 970 is a very appealing and very well made ladies' watch movement, which partially
resembles of traditional movement manufacturing. The anchor wheel block (which was also available
in an alternative version with deck jewel) and the dial screws very much remind of the
former
caliber 676. Nevertheless, the AS 970 already
uses an Incabloc shock protection and drives a small decentral second hand. Other versions
use different shock protection systems, such as KIF Protechoc.
Some versions even use a kind of leaf spring, that attaches the movement to the case back
and preserves it against shocks.
This movement was available with a nickel screw balance and with a gold-tone Glucycur screw
balance. Later versions of this movement, which was listed in the Flume K3 with a diameter
of 8 3/4 lignes (in contrast to the measured 8 1/2 lignes), were available with a screw-less
balance, too, which means, that this movement was available over a long period of time.
During that time, there were also other versions made without seperate anchor wheel cock.
 |

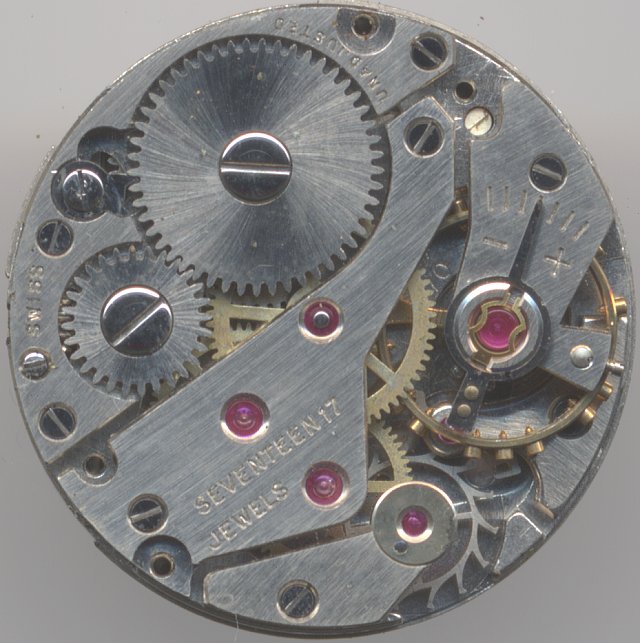

| Alternative version with Glucydur balance and anchor wheel deck jewel |
|
 |

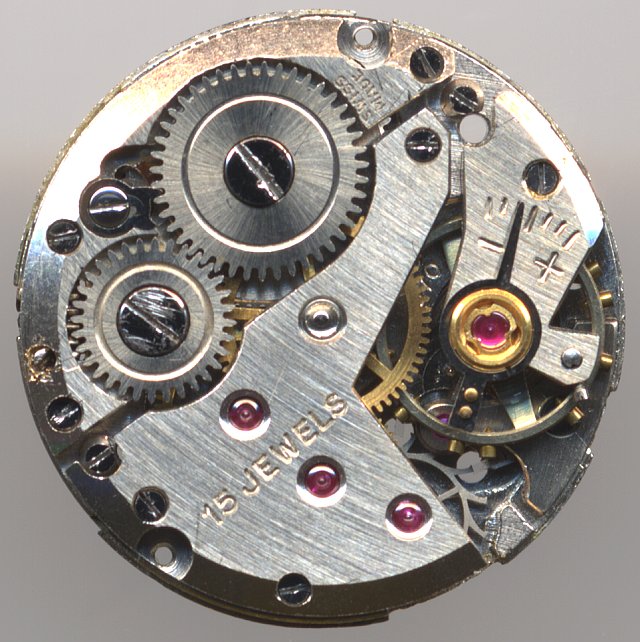

| Alternative version with KIF Protechoc and without anchor wheel cock |
|
 |

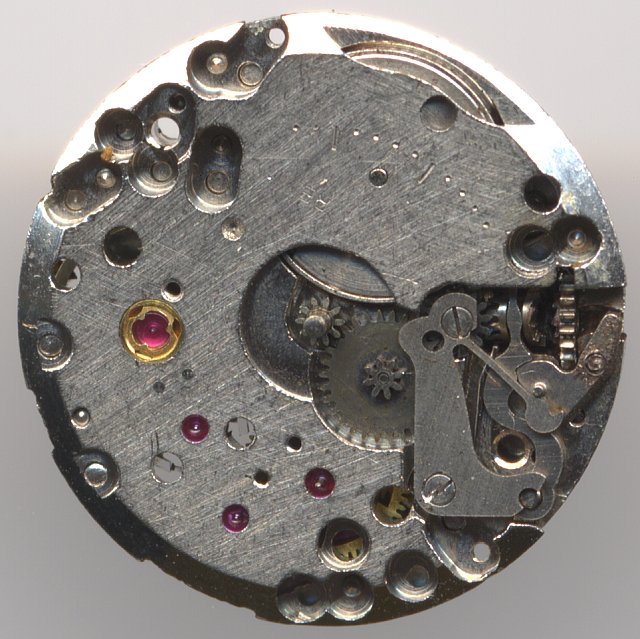

| dial side view |
|
Technical data
| Manufacturer | AS |
| Caliber | 970 |
| Number of jewels | 15/17 |
| Escapement | Anchor with pallets |
| Balance | Glucydur screw balance, Nickel screw balance |
| Shock protection(s) | Incabloc,KIF Protechoc |
| Balance cock direction | clockwise |
| Hairspring stud | fixed |
| Regulator type | Long regulator arm |
| Movement construction | Fork
Escapement wheel
Fourth wheel, Third wheel, Center wheel
Mainspring barrel Fork
Escapement wheel, Fourth wheel, Third wheel, Center wheel |
| Functions | Hour, minute, small second |
| Beats per hour | 18000 |
| Size | 81/2''' |
| Image in Flume Werksucher | 1947 23 |
|
| Factsheet |

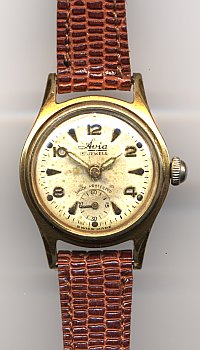

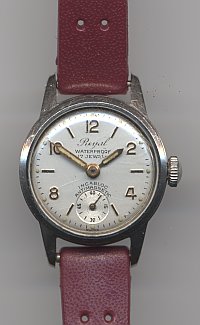

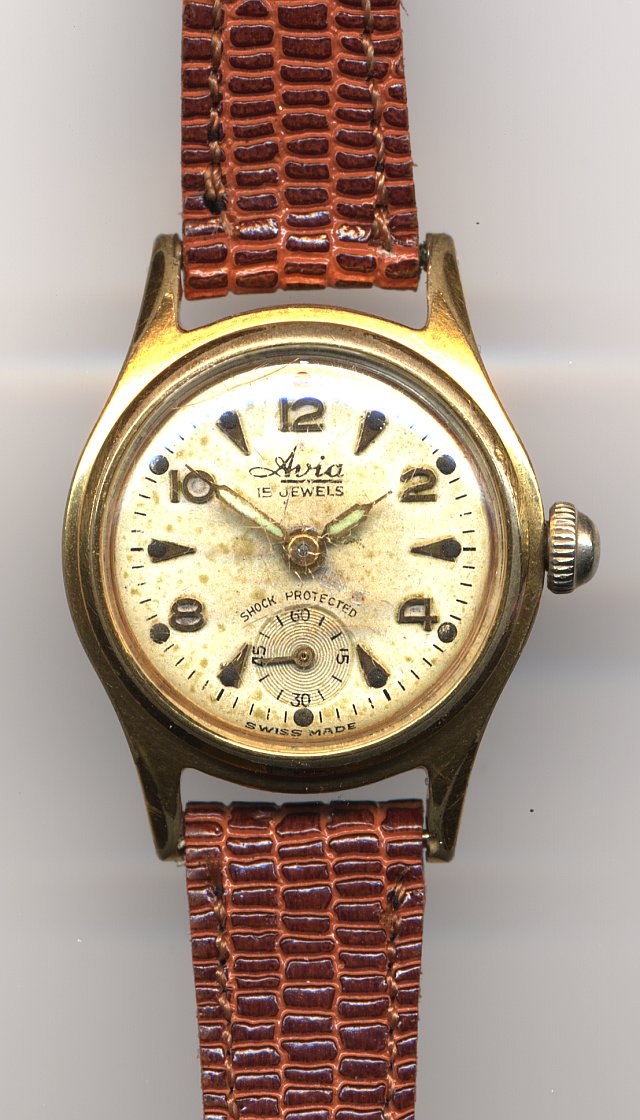

Usage gallery
