AS 976
 |

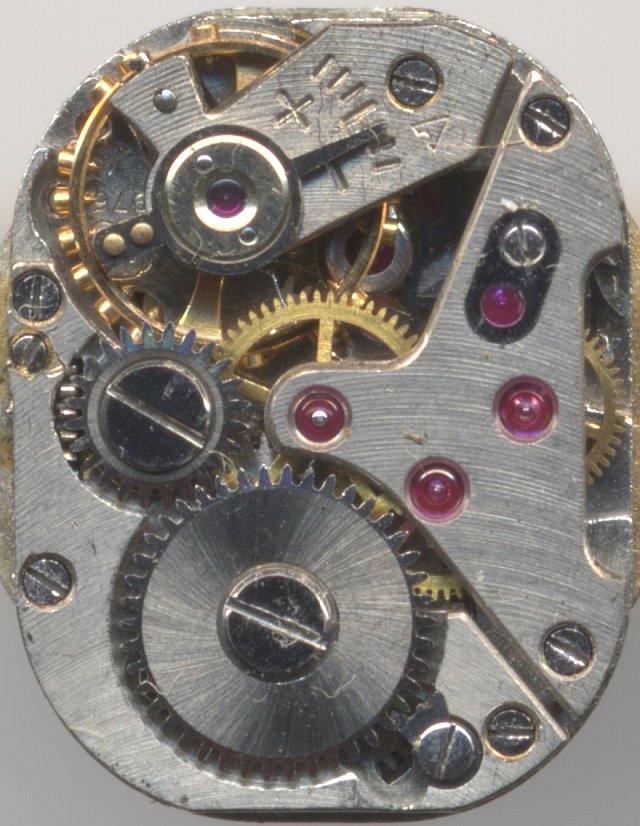

| AS 976 |
|
Description
The caliber 976 from AS was a tiny form movement, which was produced over a longer
period of time, as you can see from the pictures below. It is of a quite high quality.
 |

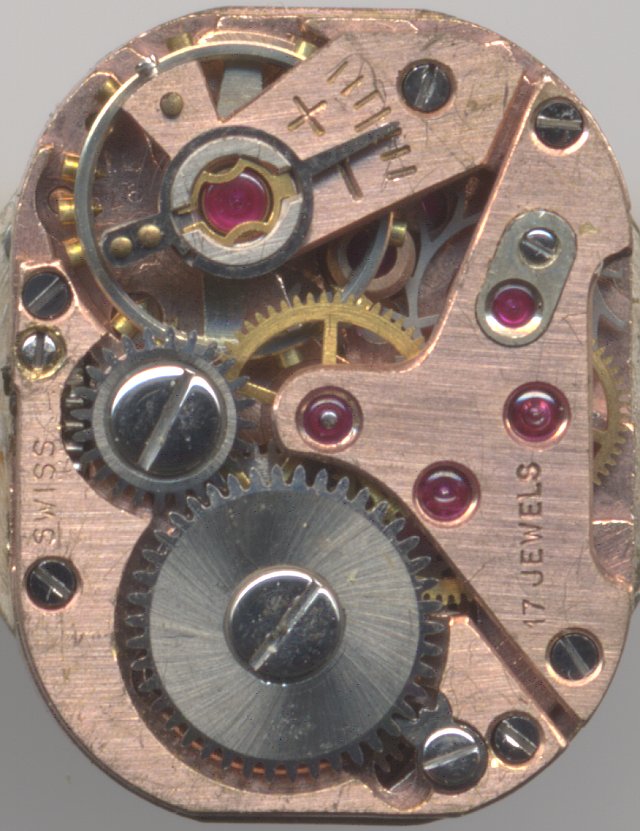

| different version |
|
 |

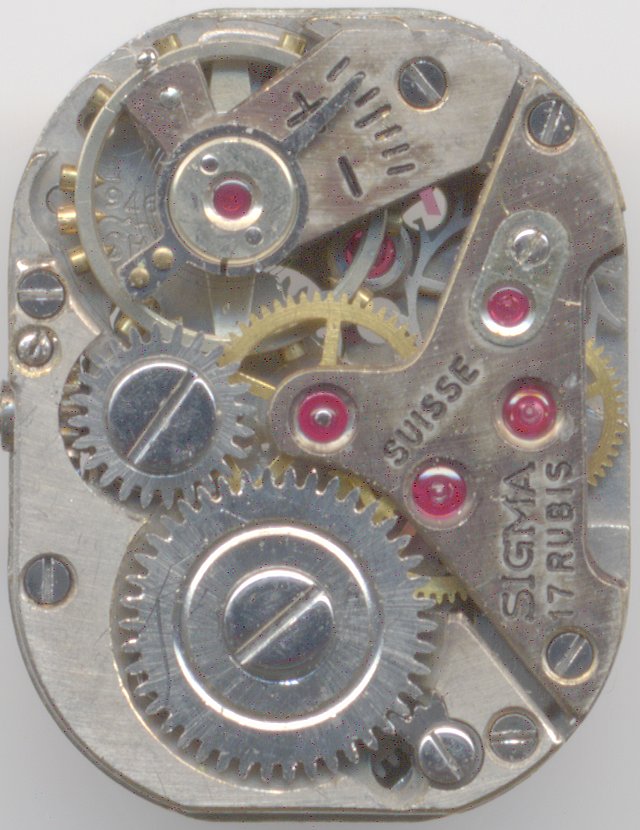

| older version without shock protection |
|
 |

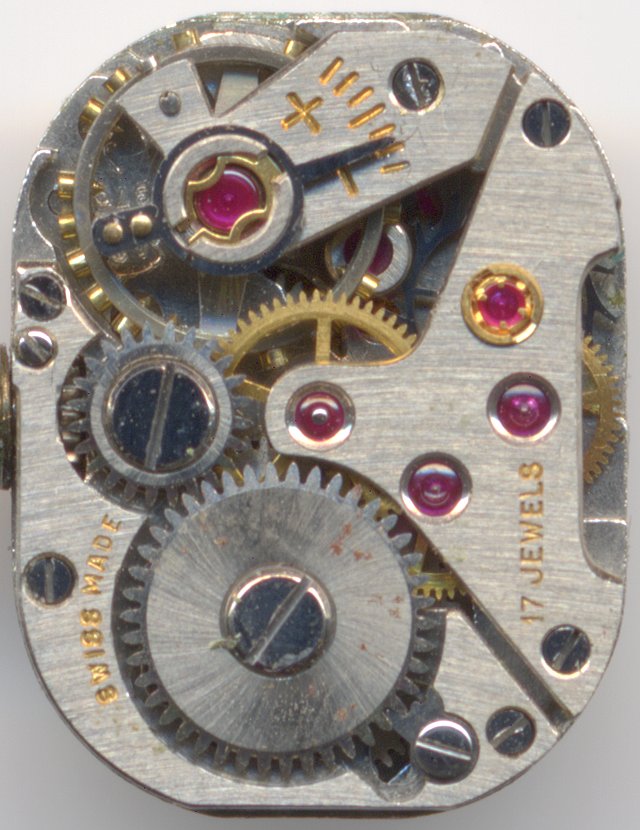

| different version with Girocap bearing |
|
 |

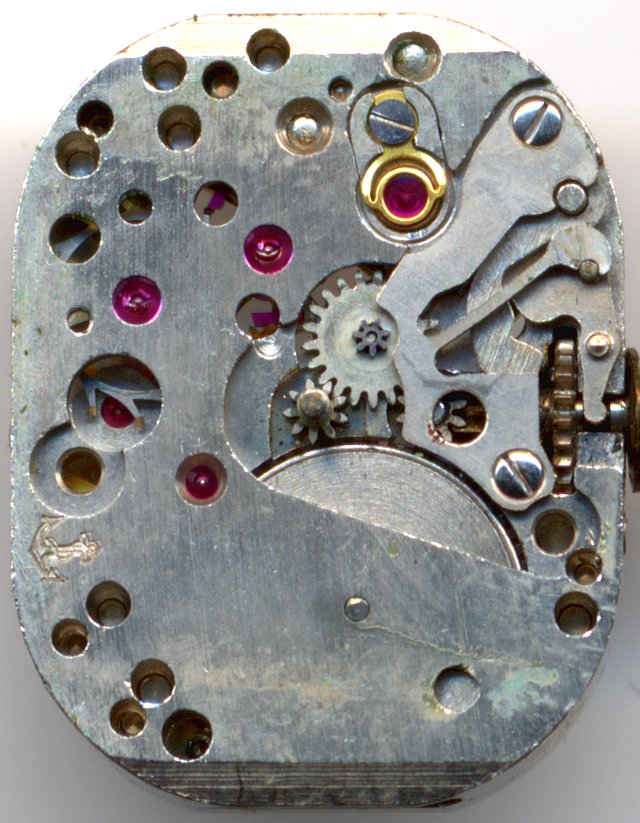

| dial side view |
|
 |

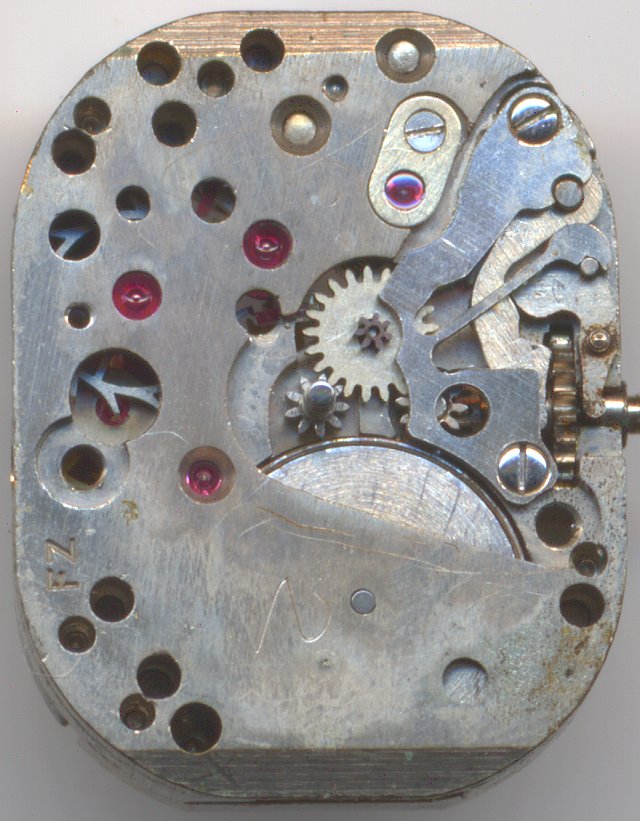

| dial side view of version w/o shock protection |
|
Technical data
| Manufacturer | AS |
| Caliber | 976 |
| Number of jewels | 17 |
| Escapement | Anchor with pallets |
| Balance | Glucydur screw balance, Nickel screw balance |
| Shock protection(s) | none,Incabloc |
| Balance cock direction | counterclockwise |
| Hairspring stud | fixed |
| Regulator type | Long regulator arm |
| Movement construction | Fork
Escapement wheel, Fourth wheel, Third wheel, Center wheel
Mainspring barrel |
| Winding mechanism | yoke |
| Setting lever spring | 3 holes |
| Functions | Hour, minute |
| Beats per hour | 18000 |
| Size | 5''' (measured: 12,2 x 15,6 mm) |
| Image in Flume Werksucher | 1947 118/120 |
|
| Factsheet |

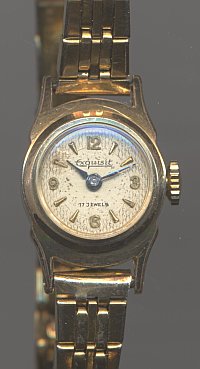

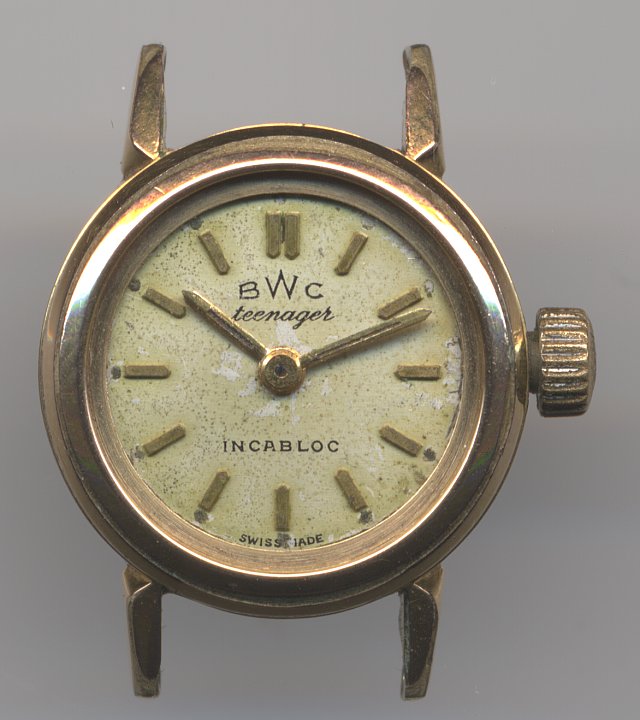

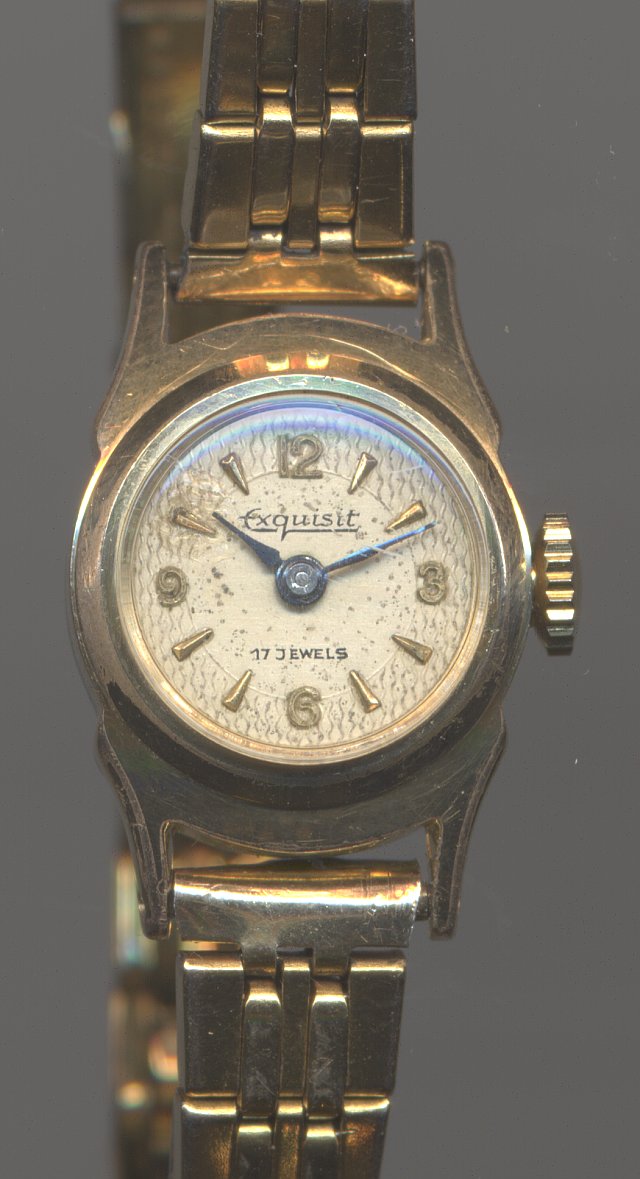

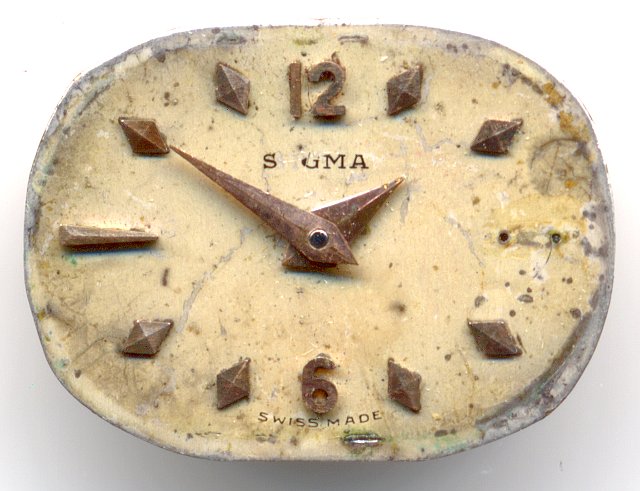

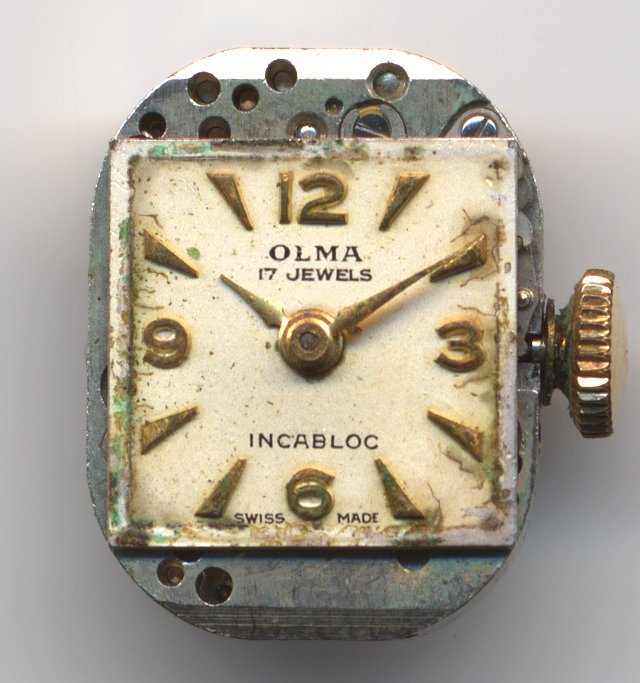

Usage gallery
This movement in the versions with a Girocap bearing and without shock protection were donated by
Harald Hoeber.
Thank you very much!
