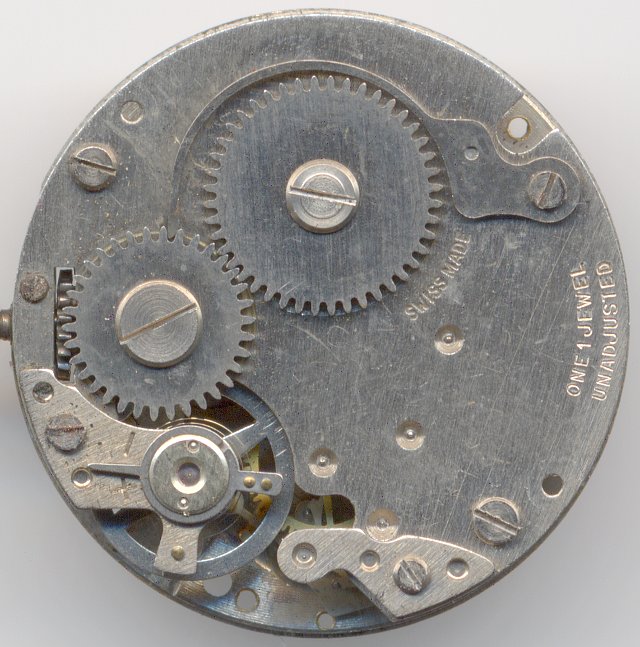

Baumgartner 34
 |
| Baumgartner 34 |
|
Description
The Baumgartner 34 is a pin lever movement with a diameter of 10 1/2 lignes and is almost
completely identical to the old model of the
Würthner 10 1/2.
The rather tiny ring balance controls a typical Roskopf-type pin lever movement, which
has got a small decentral seconds indication, but hour and minute hand are driven
indirectly by the mainspring barrel (which also serves as reduction gear). The click
of the mainspring is located on the movement side and only consists of one single spring,
which blocks the crown wheel.
On the dial side, there's a simple but efficient yoke winding mechanism - a detail, which is
a bit unusual for cheap pin lever movements.
 |

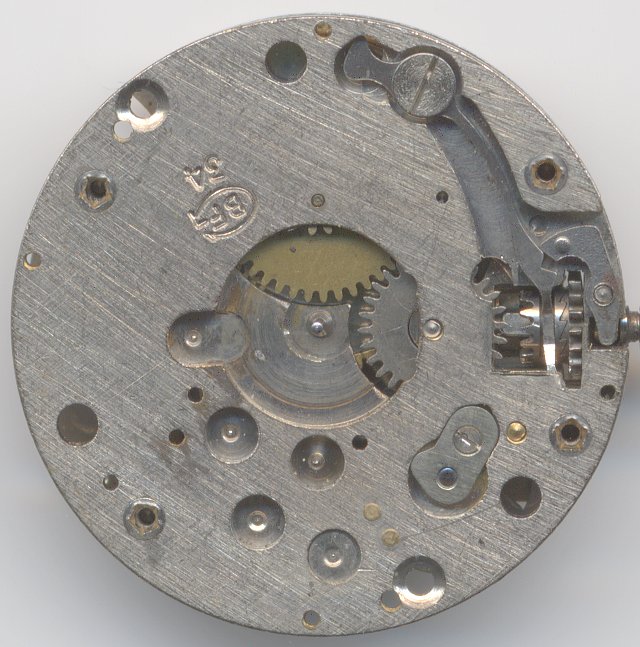

| dial side view |
|
Technical data
| Manufacturer | Baumgartner |
| Caliber | 34 |
| Number of jewels | 1 |
| Escapement | pin lever |
| Balance | Nickel |
| Shock protection(s) | none |
| Balance cock direction | counterclockwise |
| Hairspring stud | fixed |
| Regulator type | Long regulator arm |
| Movement construction | Fork
Escapement wheel, Fourth wheel, Third wheel, Large driving wheel, Mainspring barrel |
| Features | s |
| Functions | Hour, minute, small second |
| Beats per hour | 18000 |
| Size | 101/2''' (measured: 23,3 mm) |
| Image in Flume Werksucher | K3 64 |
|
| Factsheet |

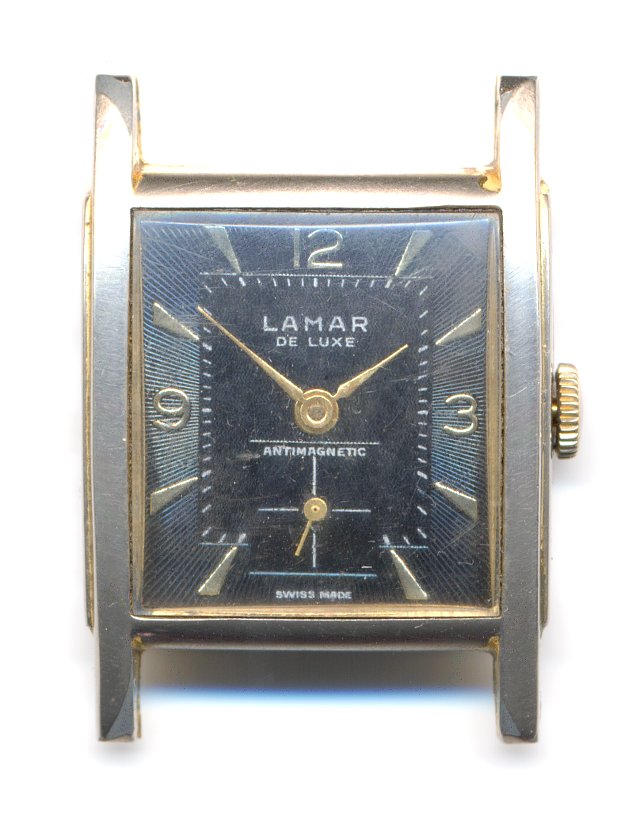

Usage gallery
