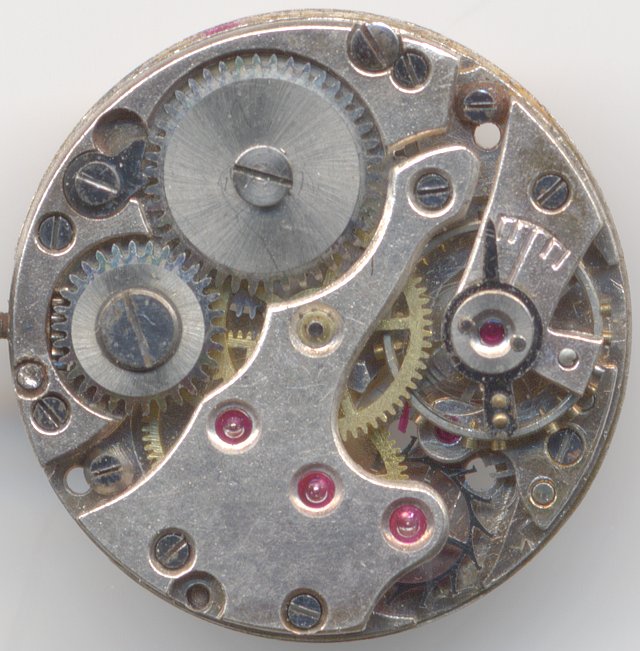

Bifora 84/1
 |
| Bifora 84/1 |
|
Description
The Bifora 84/1 is an early german pallet anchor movement, made in Schwäbisch Gmünd in the
watch factory of Joseph Bidlingmaier..
This movement is classical in all aspects - not only from the craftsmanship with the slanted
briges and their angled borders, but also of its construction:
The non shock-protected screw balance has got its hairspring connected to the balance cock. Its
effective length can be regulated by a long regulator arm. With the pallet lever escapement and
all gears beared in jewels, a good precision is guaranteed.
 |

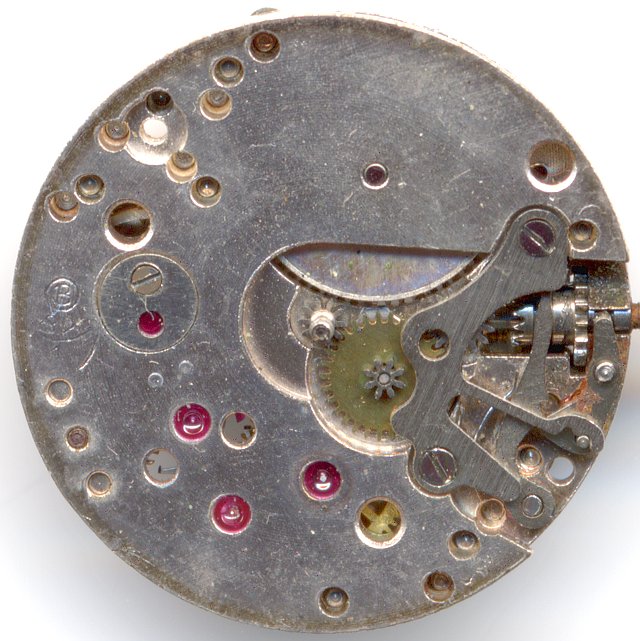

| dial side view |
|
On the dial side, there's a yoke winding system. On later movements, Bifora often uses
a rocking bar winding system, maybe due to cost reduction.
Technical data
| Manufacturer | Bifora |
| Caliber | 84/1 |
| Number of jewels | 15 |
| Escapement | Anchor with pallets |
| Balance | Nickel screw balance |
| Shock protection(s) | none |
| Balance cock direction | clockwise |
| Hairspring stud | fixed |
| Regulator type | Long regulator arm |
| Movement construction | Fork
Escapement wheel, Fourth wheel, Third wheel, Center wheel
Mainspring barrel |
| Winding mechanism | yoke |
| Setting lever spring | 3 holes |
| Features | s |
| Functions | Hour, minute, small second |
| Beats per hour | 18000 |
| Size | 83/4''' (measured: 19,2 mm) |
| Image in Flume Werksucher | 1947 21 |
|
| Factsheet |
