Buser 75
 |
| Buser 75 |
|

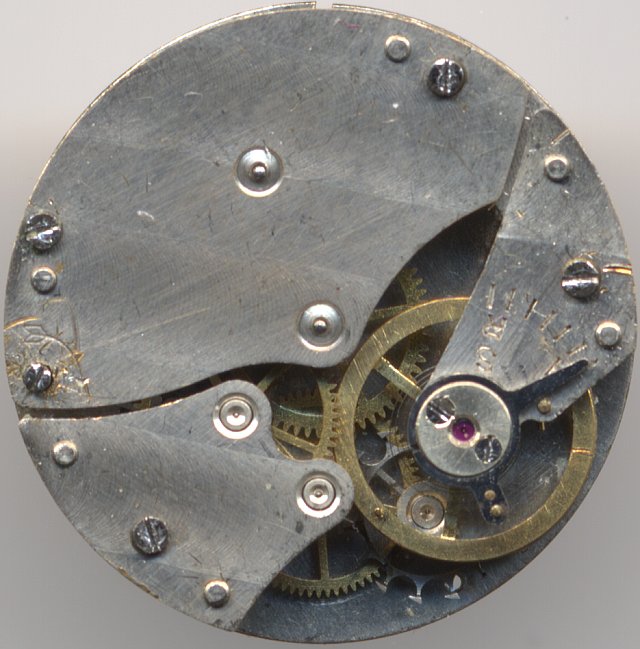

A rather late but technically not uninteresting cylinder movement is the
Buser caliber 75 with 8 3/4 lignes. It is nowhere marked, but could be identified with
the help of the Flume Werksucher of 1947.
This cylinder movement still runs near perfect today, that's something, which most
other cylinder movements don't achive.
On the dial side, you can't see much but an interesting kind of shock protection for
the balance. The rocking bar winding mechanism and the dials for the hands are
below the dial plate - that is pretty unusual!
 |

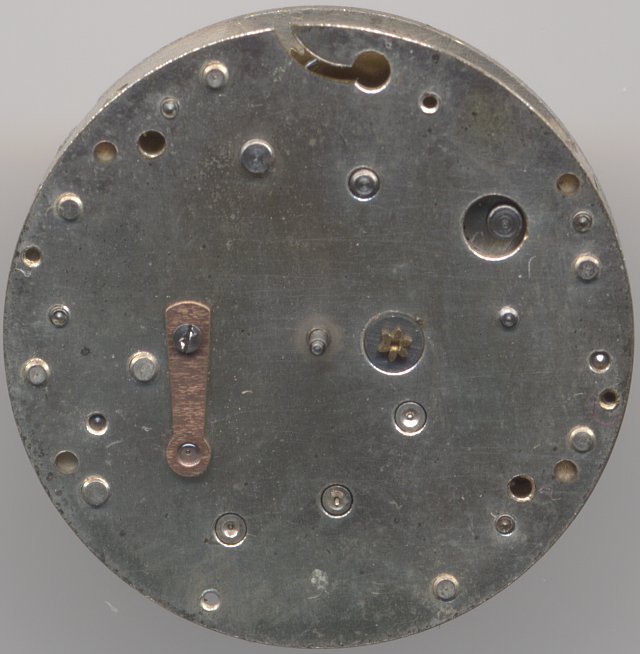

| dial side view |
|
Technical data
| Manufacturer | Buser |
| Caliber | 75 |
| Number of jewels | 4 |
| Escapement | cylinder |
| Shock protection(s) | none |
| Balance cock direction | clockwise |
| Hairspring stud | fixed |
| Regulator type | Long regulator arm |
| Movement construction | Escapement wheel
Fourth wheel, Third wheel
Center wheel, Mainspring barrel |
| Features | s |
| Functions | Hour, minute, small second |
| Beats per hour | 18000 |
| Size | 83/4''' |
| Image in Flume Werksucher | 1947 99 |
|
| Factsheet |
Usage gallery
