Cupillard 233
 |

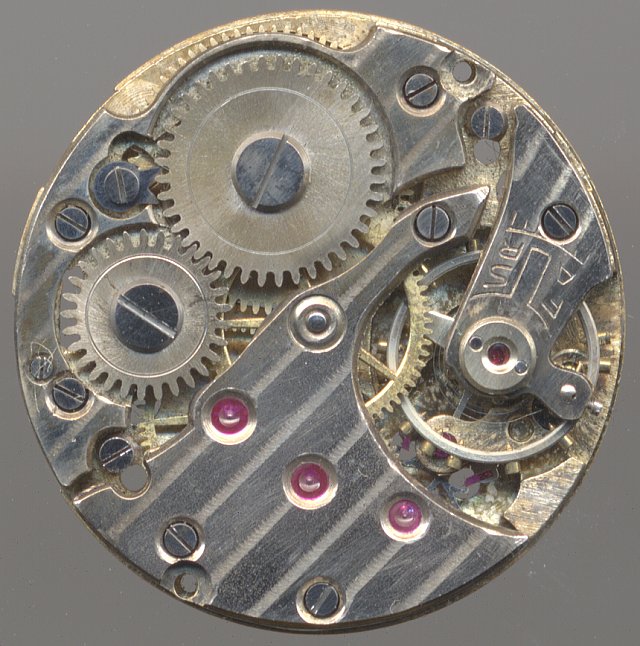

| Cupillard 233 |
|
Description
The Cupillard 233 is an old french handwound movement, which was produced for several decades.
When in 1965 the
France Ebauches was founded and
the Ebauches Cupillard were part of them, the caliber 233 was produced from then on as
FE 233-60.
The caliber 233 is a 15-jewel movement with decentral second hand at "6". The strips on the
plate are visually appealing and especially the silvering of the plates is very nice. You can
see it also on those spots, which decolored over the time. With a silver floor cloth they start
shining again.
Technically, this movement resembles clearly the state-of-the-art of the 1940ies with its
non shock-protected screw balance, the 15 jewels, the yoke winding system and the sugar loaf screws
for the dial.
 |

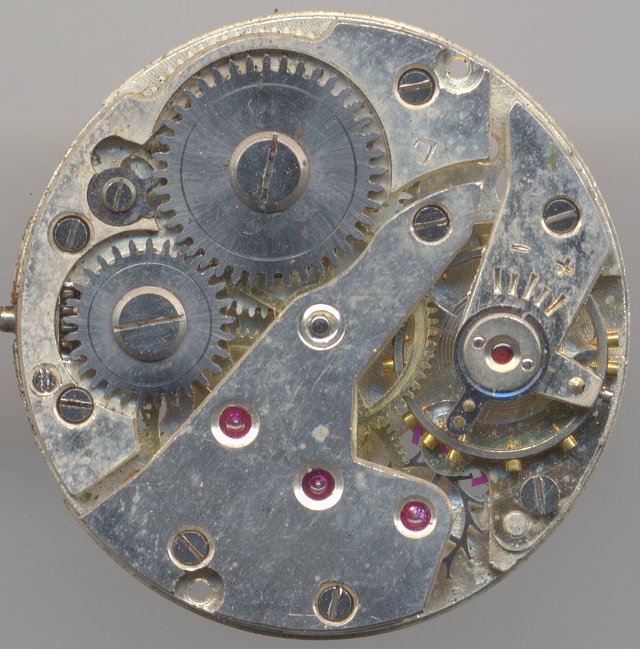

| modern version with different bridge |
|
 |
| modern version with Incabloc shock protection |
|
Newer versions of that movement used a differently shaped gear bride and an Incabloc
shock protection system. The best version even contained a gold-toned Glucydur balance
with screws.
 |

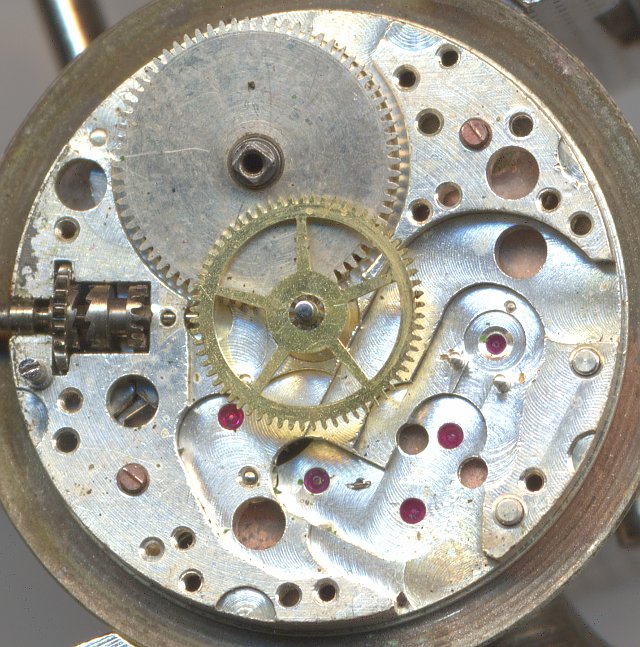

| main plate |
|
 |

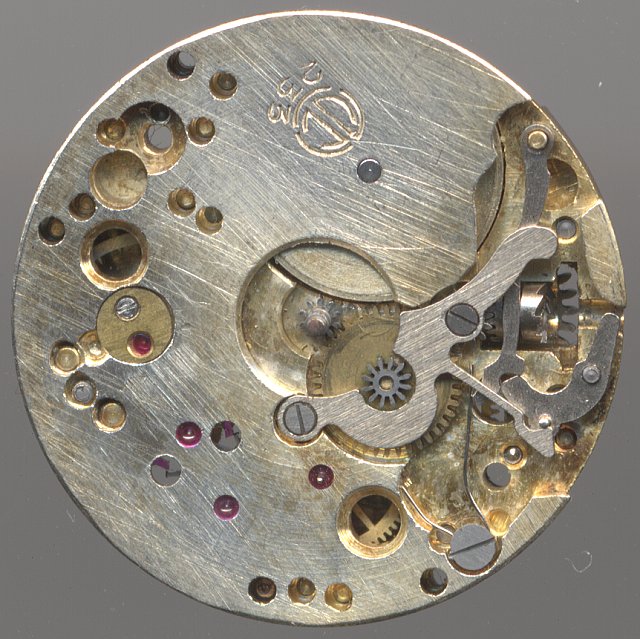

| dial side view |
|
 |

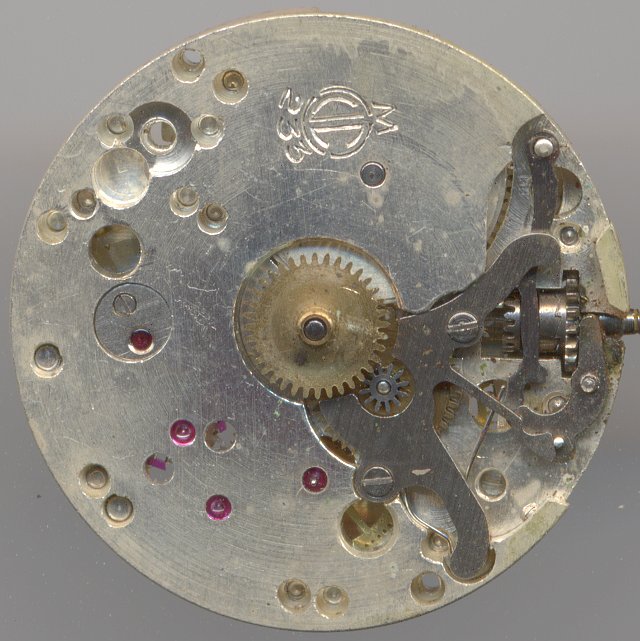

| dial side view, modern version |
|
You can spot minimal differences between the old and the more modern version on the
dial side.
 |

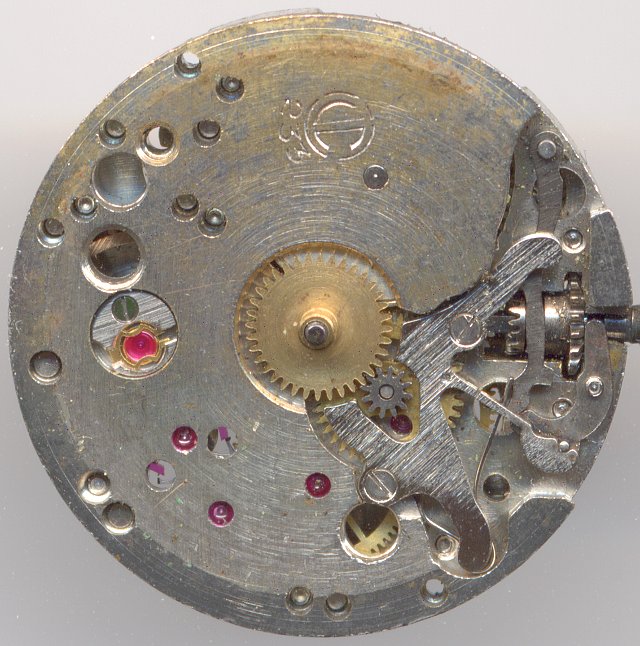

| dial side view, even more modern version |
|
Technical data
| Manufacturer | Cupillard |
| Caliber | 233 |
| Number of jewels | 15 |
| Escapement | Anchor with pallets |
| Balance | Nickel screw balance, Glucydur screw balance |
| Shock protection(s) | Incabloc,none |
| Balance cock direction | clockwise |
| Hairspring stud | fixed |
| Regulator type | Long regulator arm,Hairspring key |
| Movement construction | Fork
Escapement wheel, Fourth wheel, Third wheel, Center wheel
Mainspring barrel |
| Features | s |
| Functions | Hour, minute, small second |
| Beats per hour | 18000 |
| Size | 101/2''' |
| Image in Flume Werksucher | 1947 27 |
|
| Factsheet |

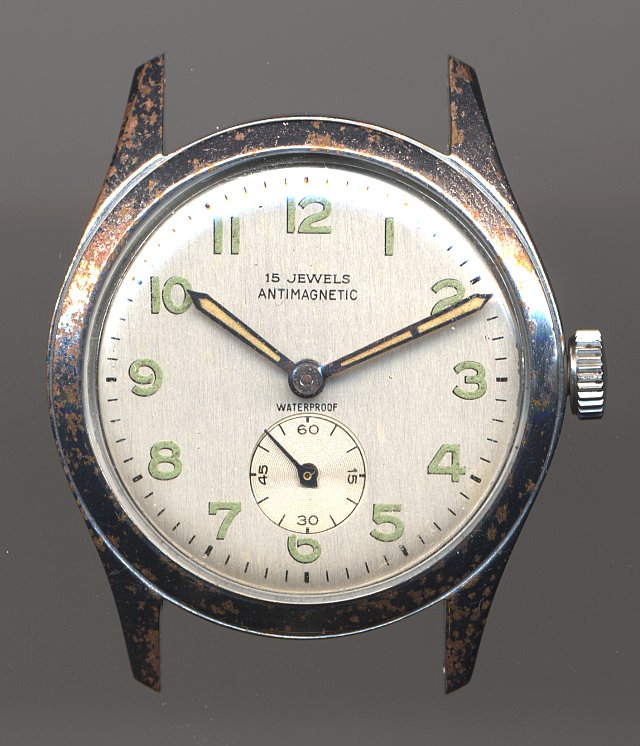

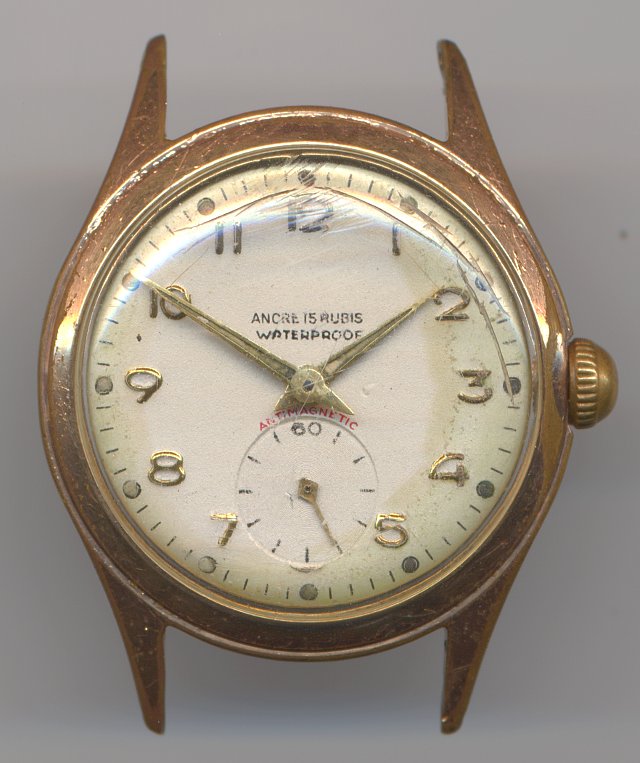

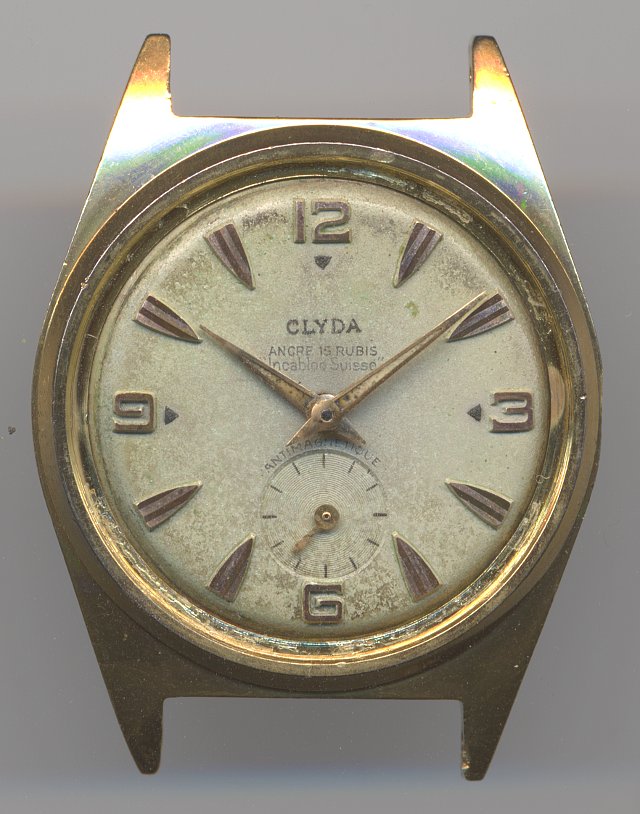

Usage gallery
