DuRoWe 89
 |
| DuRoWe 89 |
|
Description

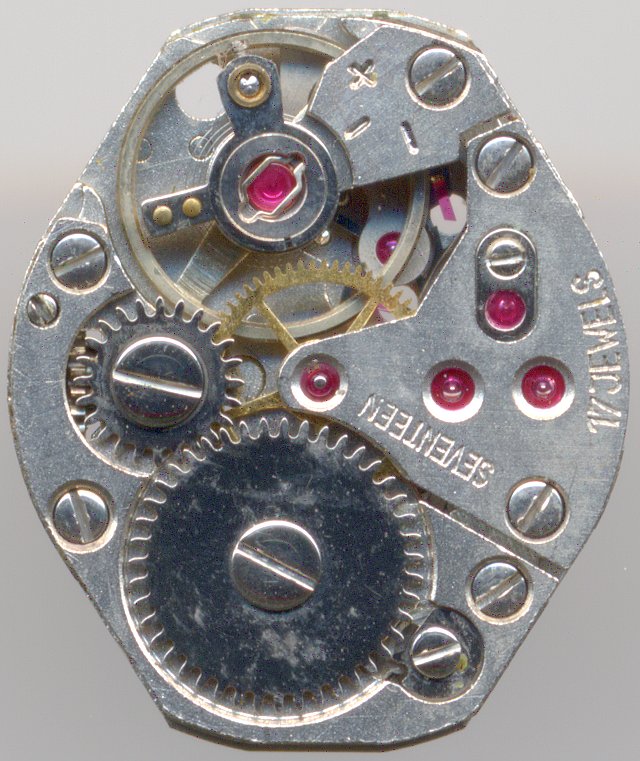

The ladies' watch form movement DuRoWe 89 was a typical representative of that
category, which was extremely popular in the 1960ies and 1970ies.
Noteworthy on this movement is, that minute wheel, third wheel and fourth wheel are arranged
on one line.
The rest of this movement is business as usual: Shock protected ring balance (beared in
inhouse Duro-Swing shock protections), pallet anchor escapement, hairspring with moveable stud,
regulation only directly on the hairspring key and one cap jewel for the escapement wheel.
 |

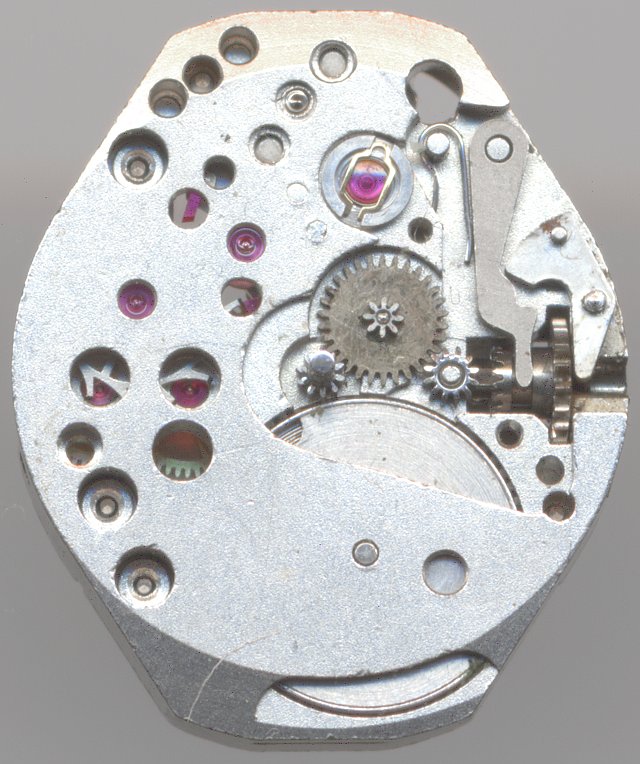

| dial side view |
|
On the dial side, you see the yoke winding system (unfortunately incomplete on the specimen
shown here).
Technical data
| Manufacturer | DuRoWe |
| Caliber | 89 |
| Number of jewels | 17 |
| Escapement | Anchor with pallets |
| Balance | Nickel |
| Shock protection(s) | Duro-Swing |
| Balance cock direction | counterclockwise |
| Hairspring stud | moveable |
| Regulator type | Hairspring key |
| Movement construction | Fork
Escapement wheel, Fourth wheel, Third wheel, Center wheel
Mainspring barrel |
| Winding mechanism | yoke |
| Functions | Hour, minute |
| Beats per hour | 18000 |
| Size | 63/4 x 8''' (measured: 15,0 x 17,8 mm) |
| Image in Flume Werksucher | K3 86 |
|
| Factsheet |
