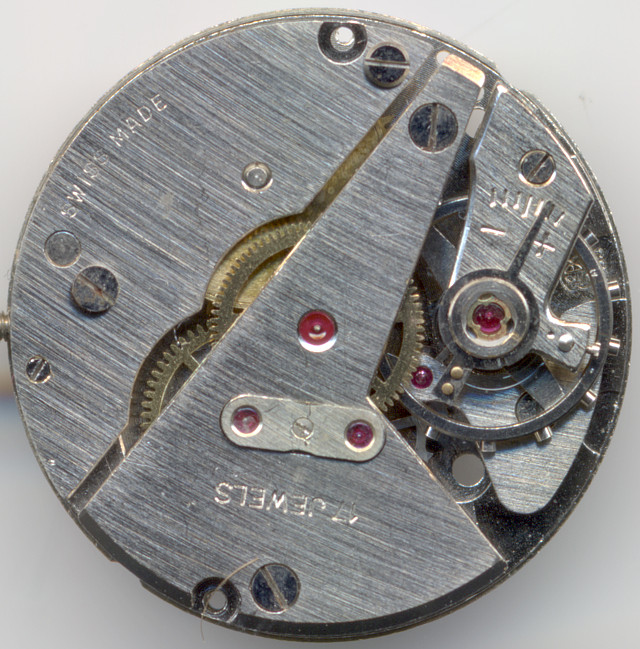

EB 1553

EB 1553
EB 1553

Description

Ebauches Bettlach was always a producer of pin lever movements. Many of them were rather simple, but some, like this caliber 1553, were quite good. This movement reminds in its construction even of good pallet anchor lever movements of that time. It contains a KIF-Protechock shock protections system, a long regulator arm and deck jewels for the gears to reach the number of seventeen jewels. Even the rocking bar winding mechanism on the dial side looks better than on many other pin lever movements

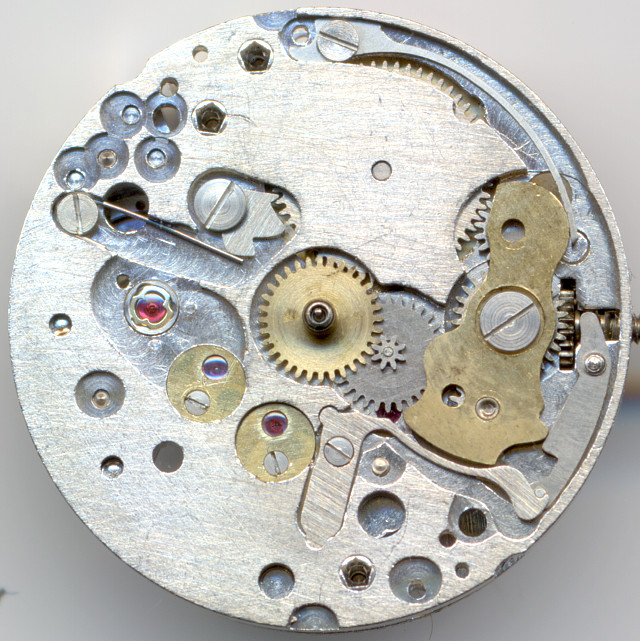

dial view
dial view



Technical data

ManufacturerEB
Caliber1553
Number of jewels17
Escapementpin lever
BalanceNickel
Shock protection(s)KIF Protechoc
Balance cock directionclockwise
Hairspring studfixed
Regulator typeLong regulator arm
Movement constructionFork
Escapement wheel, Fourth wheel, Third wheel
Center wheel
Mainspring barrel
FeaturesSCD
FunctionsHour, minute, second
Beats per hour18000
Size101/2'''
Image in Flume Werksucher 1962 25
Factsheet

Usage gallery

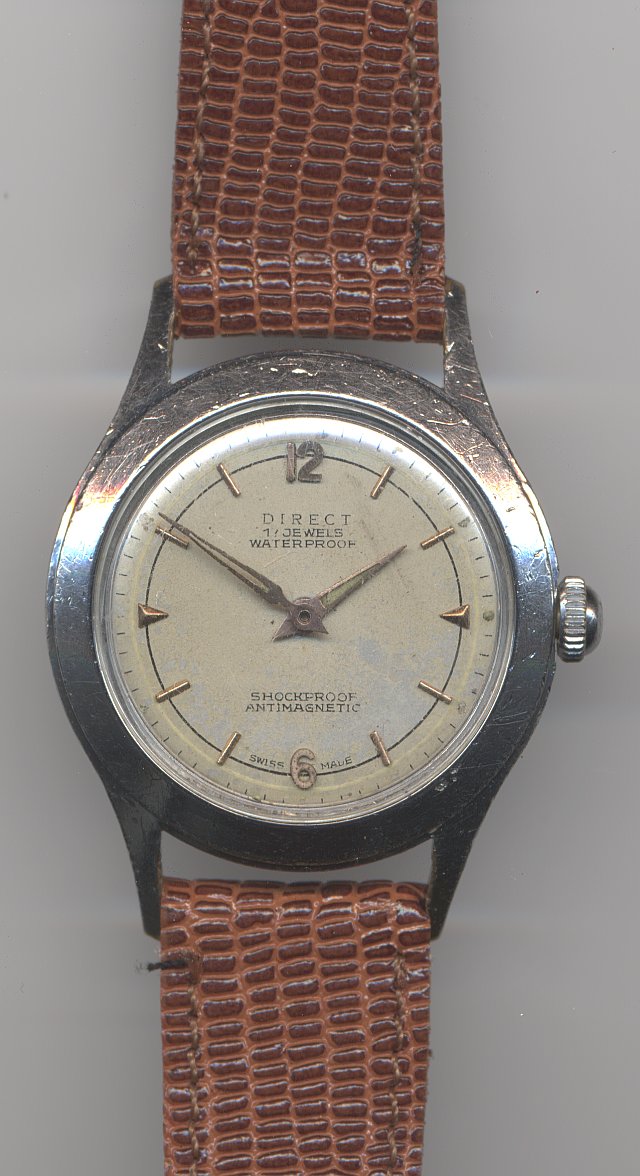

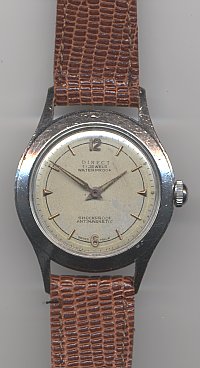

Direct mens' watch
Direct mens' watch
