EB 8021-68
 |
| EB 8021-68 |
|
Description

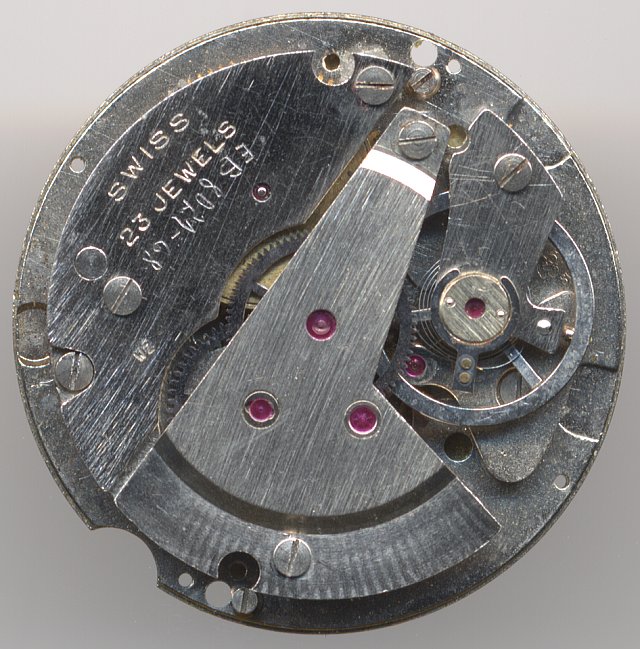

This pin lever movement from Ebauches Bettlach is a real "stone grave".
The caliber 8021-68 contains the extraordinarily high number of 23 jewels, even, although it is
just a pin lever movement. The trick is, that as usually done with these movements, it contains
deck jewels almost everywhere.
Since on pin lever movements have to be cheap, too, the costs have to be saved otherwise. Here,
it is done on those items, which cannot be seen or advertized. There's for example the pier construction,
which is much cheaper than a solid movement, and there's also the missing shock protection, which
is responsible, that the specimen shown here is dead.
The EB 8021-68 indicates hours, minutes and seconds and the date. The date advances slowly and cannot
be quick-adjusted.
 |
| dial side view |
|
Technical data
| Manufacturer | EB |
| Caliber | 8021-68 |
| Number of jewels | 23 |
| Escapement | pin lever |
| Balance | Nickel |
| Shock protection(s) | none |
| Balance cock direction | clockwise |
| Hairspring stud | fixed |
| Regulator type | Hairspring key |
| Movement construction | Fork
Escapement wheel, Fourth wheel, Third wheel
Center wheel
Mainspring barrel |
| Construction type | pillar construction |
| Bridge shape | Straight bridge with sector, 3 gears |
| Winding mechanism | Rocking bar |
| Features | SCD,QG |
| Functions | Hour, minute, second, day |
| Beats per hour | 18000 |
| Size | 111/2''' |
| Image in Flume Werksucher | K3 - |
|
| Factsheet |

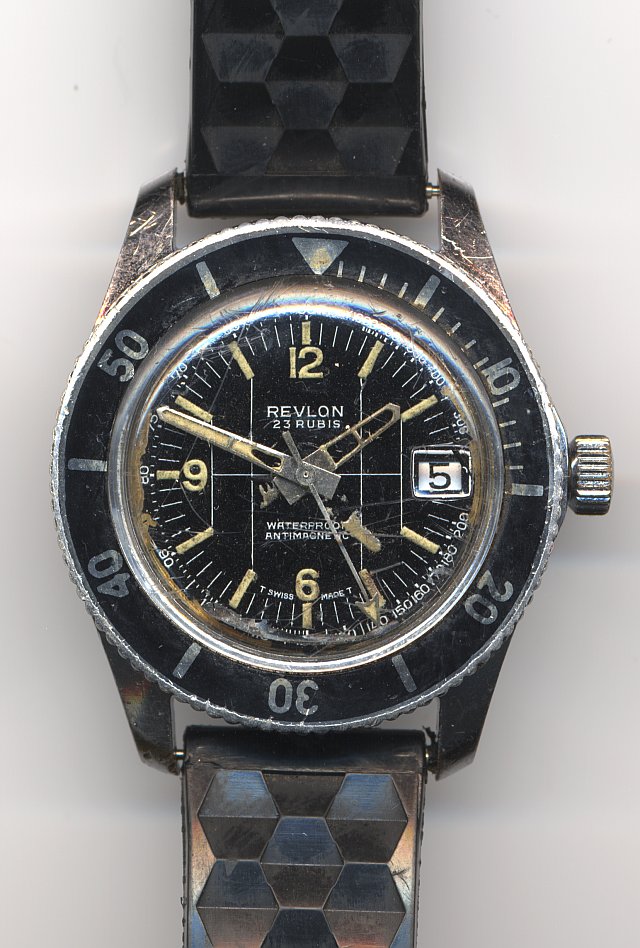

Usage gallery
