EB 8341 / Kienzle 074/20
 |
| EB 8341 / Kienzle 074/20 |
|
Description
The EB 8341 is with a diameter of only 7 lignes (the official measurings are even only
6 3/4 lignes) a very small pin lever movement with a number of constructive oddities:
The non shock secured balance, more precisely the hairspring, is connected to a very unusually
shaped movable stud. The pin lever is adjustable, too, the mainspring can be removed by just
removing one screw and the complete winding mechanism is located below the plates!
As you can easily see, all these measures are very interesting in a constructive way, but
for a watchmaker they are a nightmare, especially, since the movement builds pretty high and
is made in pier construction.

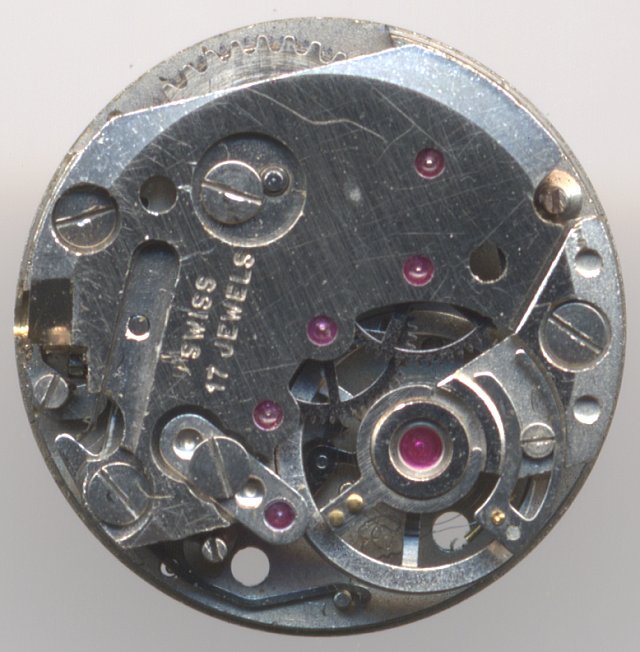

On the 17 jewels specimen shown here, the balance axle is broken due to the missing shock
protection.
 |

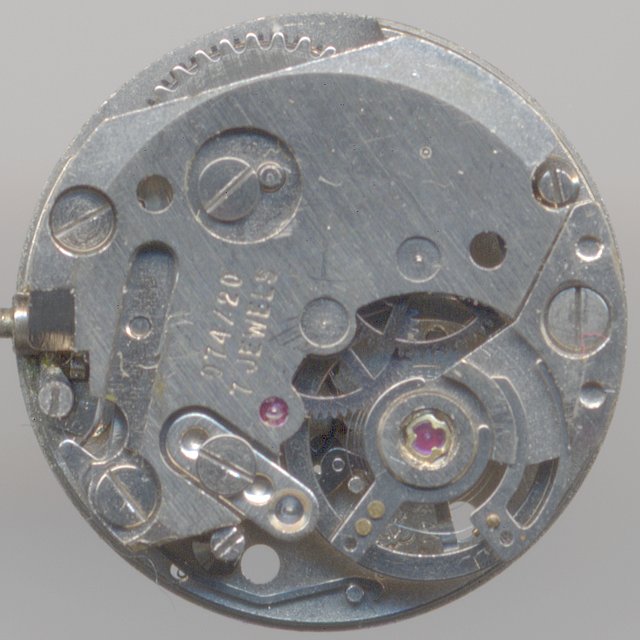

| version with 7 jewels and shock protection |
|
 |

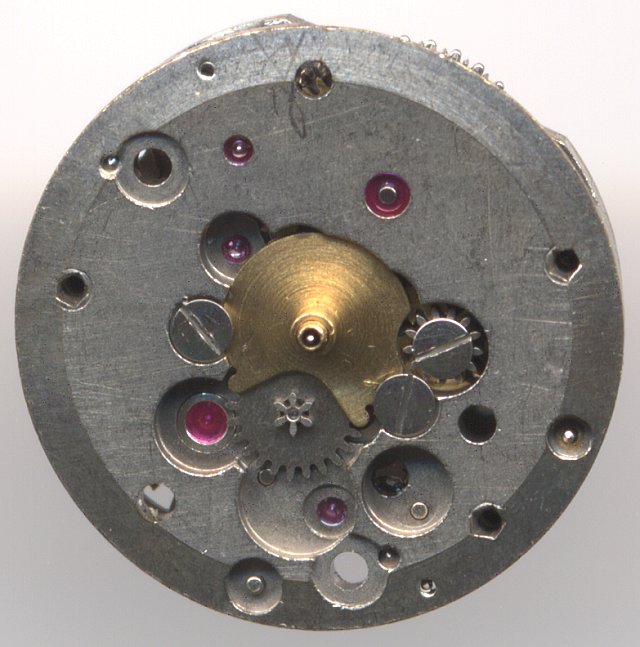

| dial side view |
|
 |

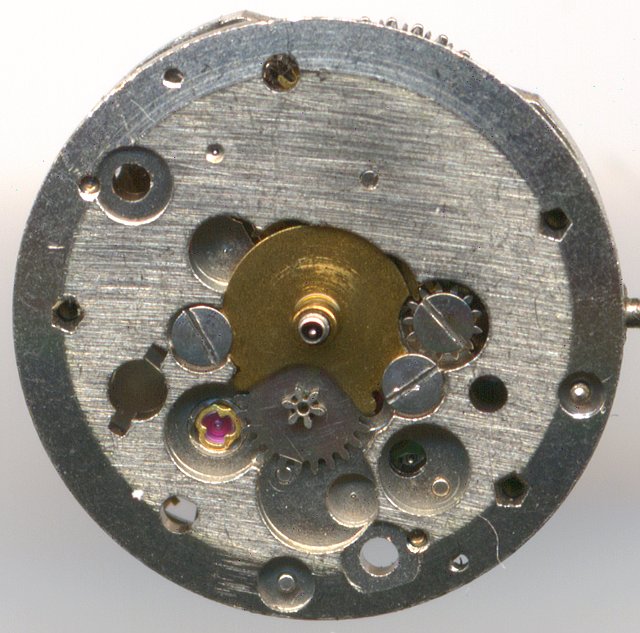

| dial side view of the 7 jewel version |
|
Technical data
| Manufacturer | EB |
| Caliber | 8341 |
| Number of jewels | 7/17 |
| Escapement | pin lever |
| Balance | Nickel |
| Shock protection(s) | KIF.P./non |
| Balance cock direction | clockwise |
| Hairspring stud | moveable |
| Regulator type | Hairspring key |
| Movement construction | Fork
Escapement wheel, Fourth wheel, Third wheel, Large driving wheel, Mainspring barrel |
| Features | SCD |
| Functions | Hour, minute, second |
| Beats per hour | 18000 |
| Size | 7''' |
| Image in Flume Werksucher | K3 60 |
|
| Factsheet |

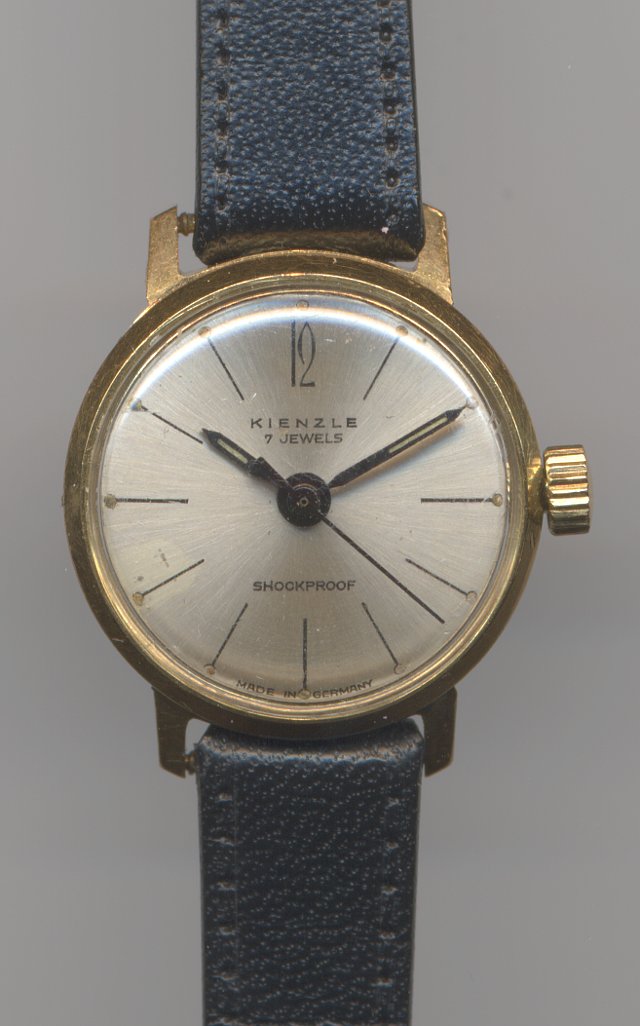

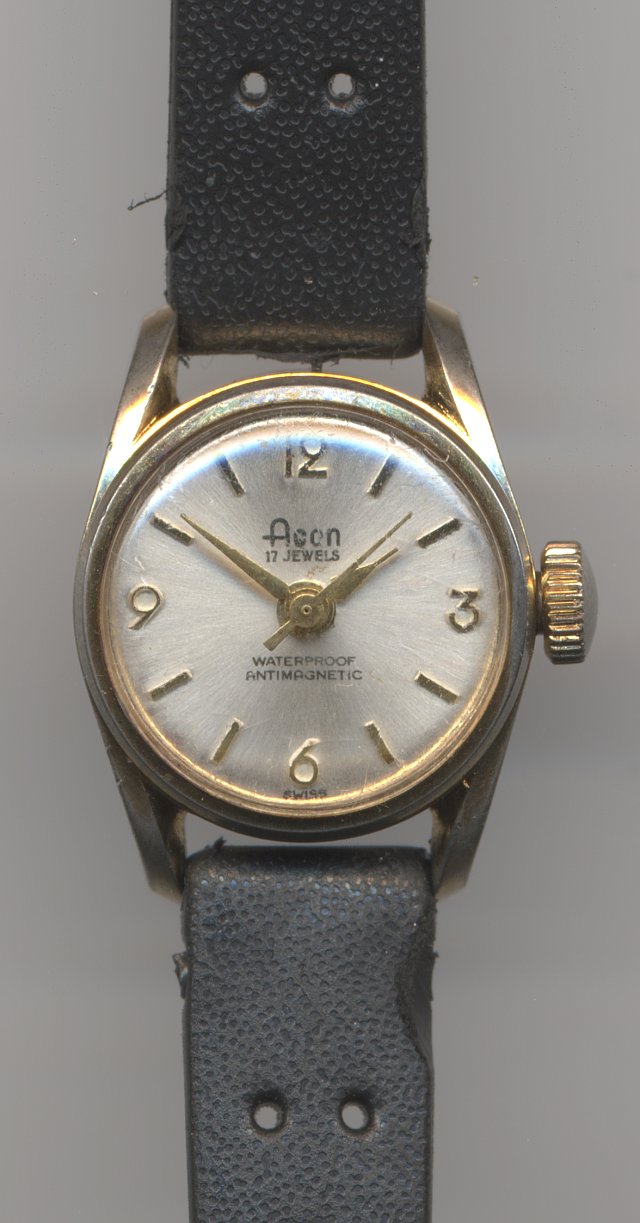

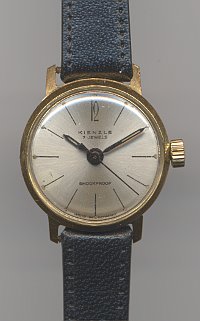

Usage gallery
