FE 68 / Dugena 4750
 |
| FE 68 / Dugena 4750 |
|
Description
The France Ebauches Caliber 68, which was also marked as Dugena 4750, is
a very typical ladies' form watch movement of the seventies. In construction and
size it is equal to many other movements.
The FE 68 has got an Antichoc shock protection system, is fully jeweled (except
the mainspring barrel) and shows hours and minutes.
In other versions, this movement was equipped with an Incabloc shock protection system.
With contemporary modern 21600 beats per hour it achieves sufficient precision.
 |

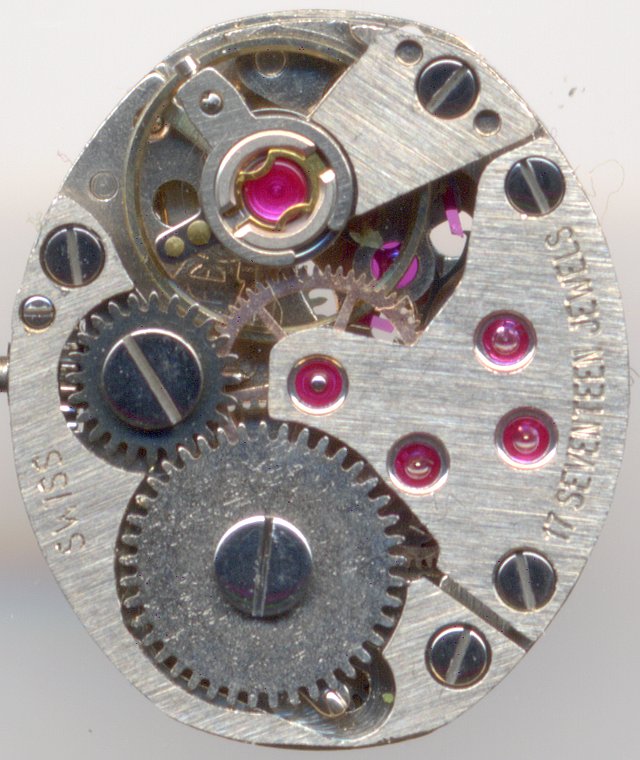

| version with Incabloc shock protection system |
|
 |

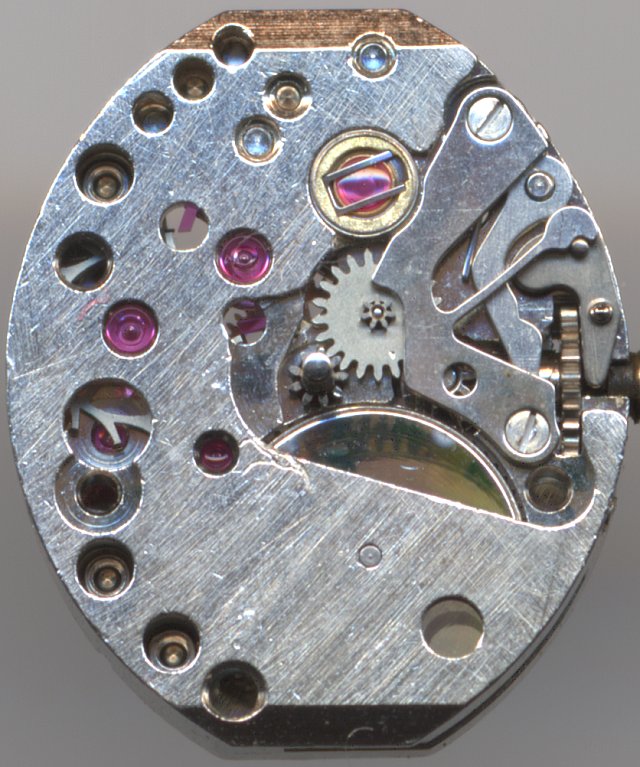

| dial side view |
|
 |

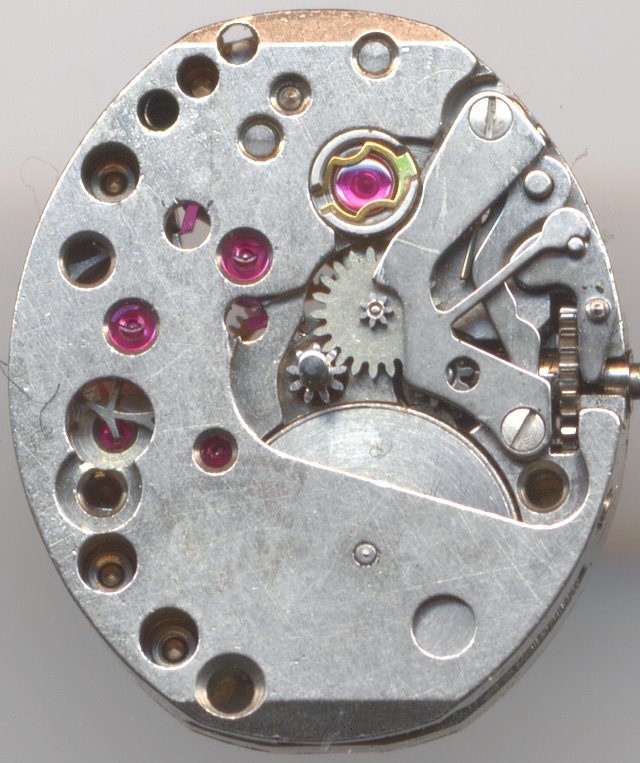

| dial side view, Incabloc version |
|
Technical data
| Manufacturer | France Ebauches |
| Caliber | 68 |
| Number of jewels | 17 |
| Escapement | Anchor with pallets |
| Balance | Nickel |
| Shock protection(s) | Incabloc,??? |
| Balance cock direction | counterclockwise |
| Hairspring stud | moveable |
| Regulator type | Hairspring key |
| Movement construction | Fork
Escapement wheel, Fourth wheel, Third wheel, Center wheel
Mainspring barrel |
| Construction type | solid construction |
| Bridge shape | Jetski, 4 gears |
| Winding mechanism | yoke |
| Setting lever spring | 3 holes |
| Functions | Hour, minute |
| Beats per hour | 21600 |
| Size | 51/2''' (measured: 13,0 x 15,0 mm) |
| Image in Flume Werksucher | K3N1 - |
|
| Factsheet |

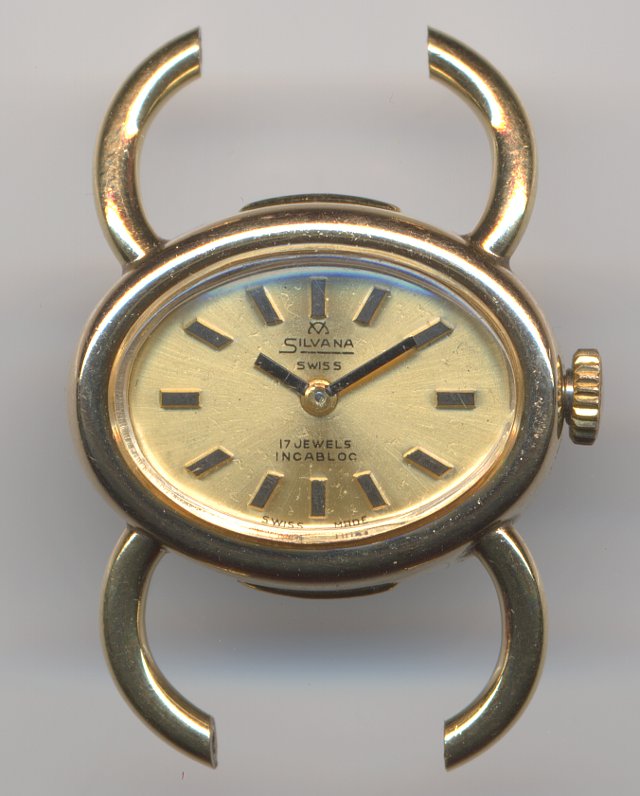

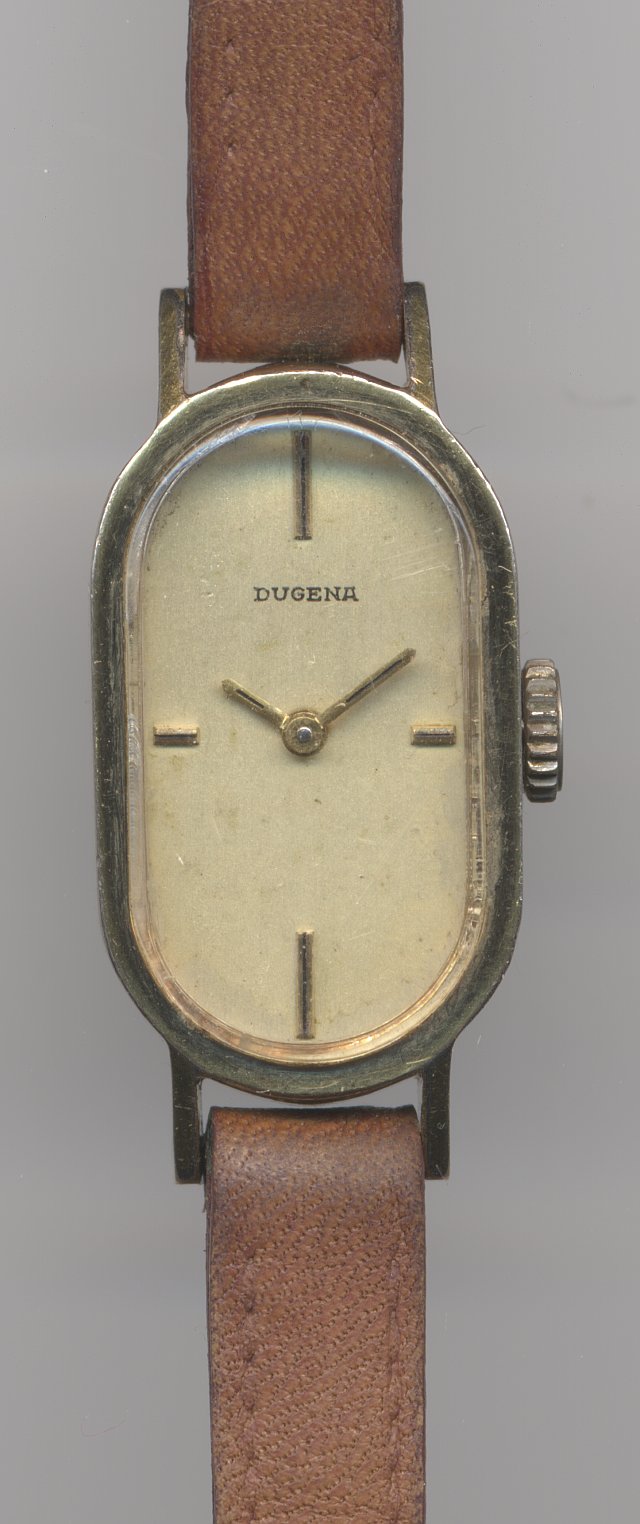

Usage gallery
This movement in the Incabloc version was donated by
Klaus Brunnemer. Thank you very much!
