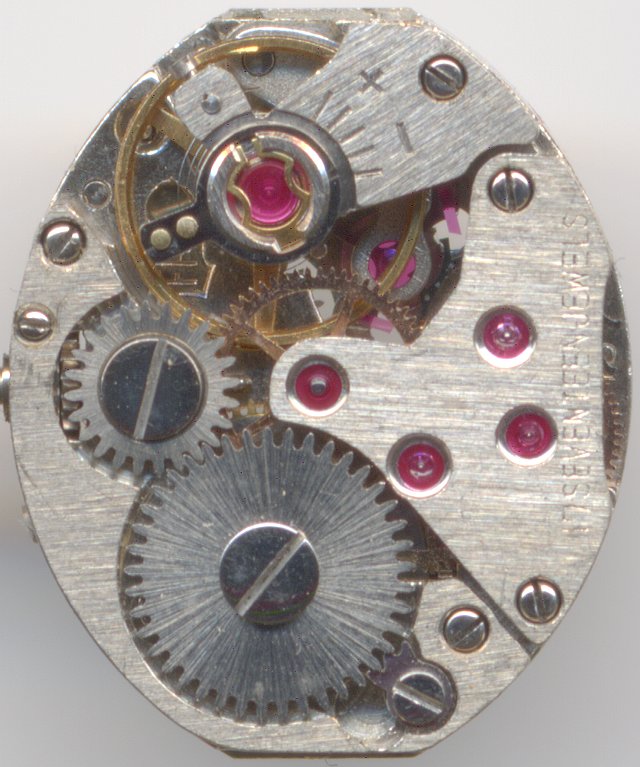

Femga 67

Description

The Femga 67 is a typical representative of the many, many 5 1/2 ligne ladies' watch movements of the sixties.

In terms of construction, it is a little bit unusual though, because on the one hand, it contains modern technology like a semi-fast, with 21600 A/h beating balance with three legs, on the other hand, it contains old fashioned details like a hairspring, which is fix connected to the balance cock.

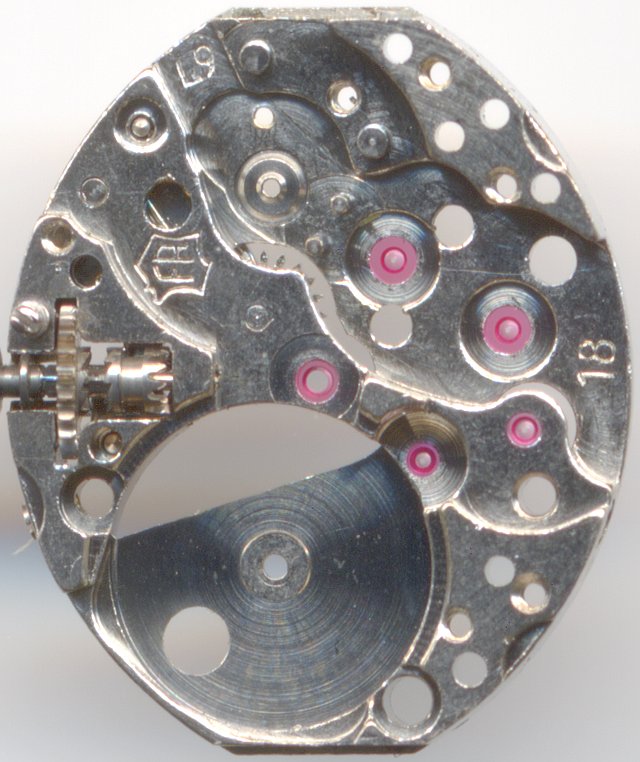

main plate

A detail, which is not often found on these movement is the ruby-beared minute gear. Usually, the seventeeth jewel is made as cap jewel for the escapement wheel, but here, it bears the minute gear on the dial side. Technically, there's no real need for this, because the power from the mainspring is still much too strong for any bearing issues.

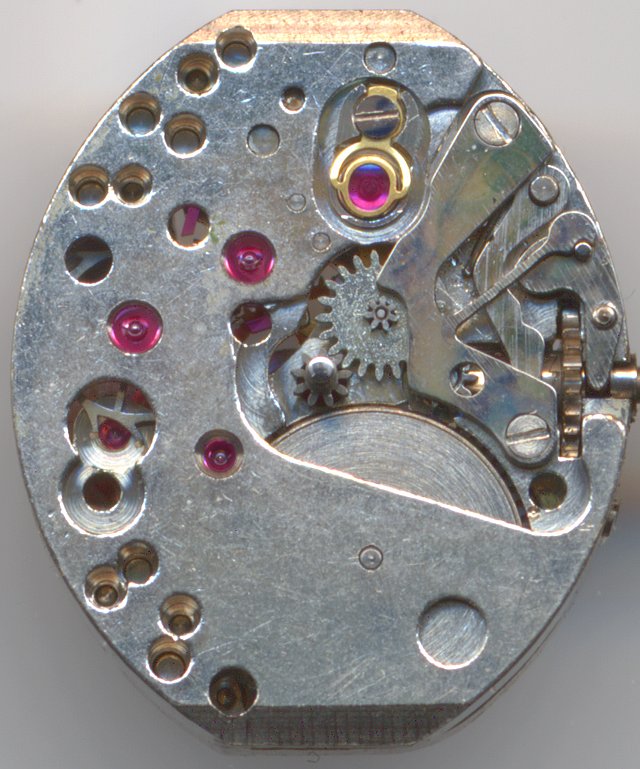

dial side view

On the dial side, you see the yoke winding system as well as the shock protection.

Technical data

Manufacturer	Femga
Caliber	67
Number of jewels	17
Escapement	Anchor with pallets
Balance	Nickel
Shock protection(s)	Incabloc
Balance cock direction	counterclockwise
Hairspring stud	fixed
Regulator type	Hairspring key
Movement construction	Fork Third wheel, Fourth wheel, Third wheel, Center wheel Mainspring barrel
Winding mechanism	yoke
Setting lever spring	3 holes
Functions	Hour, minute
Beats per hour	21600
Size	5¹/₂''' (measured: 13,0 x 15,1 mm)
Image in Flume Werksucher	K3 77
