FHF 190

Description

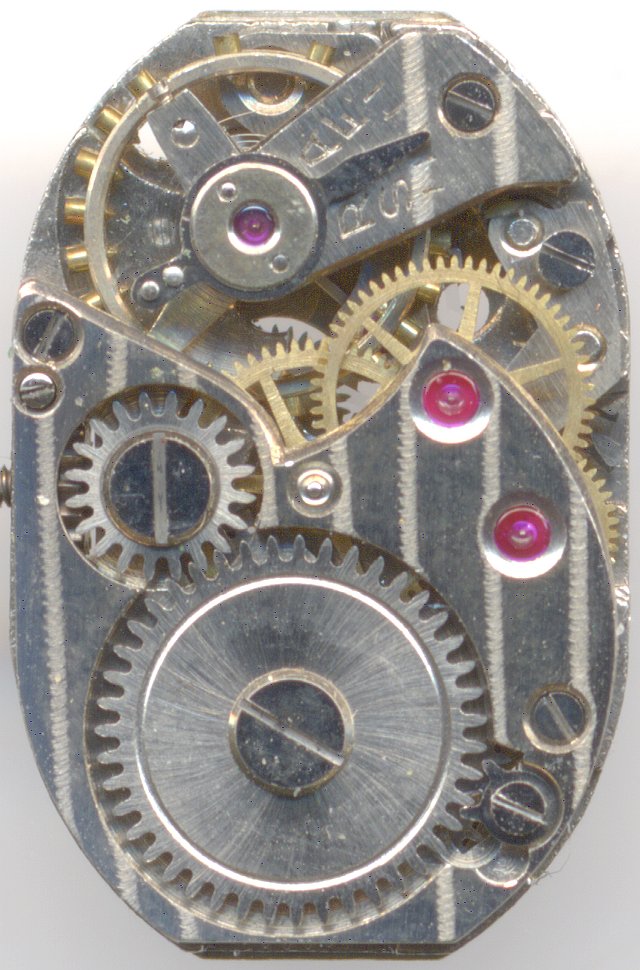

The FHF 190 is an unusually constructed ladies' watch form movement.

For having the possibility of using large gears, it uses a three-storied construction, on which the pallet lever (with transparent pallet stones) is located on the first layer, the minute- and fourth wheel on the second and the third wheel on the third layer. You can see this pretty well at position "3": On the bottom the silver colored escapement wheel, aboce the fourth wheel and on top the very large third wheel.

The regulation organ is made in a conventional way: The screw balance is of a normal size and not shock protected. It uses a flat hairspring, which is fix connected to the balance cock and can be regulated in its effective length with a long regulator arm.

For a nicer appearance, this movement got a stripe polishing.

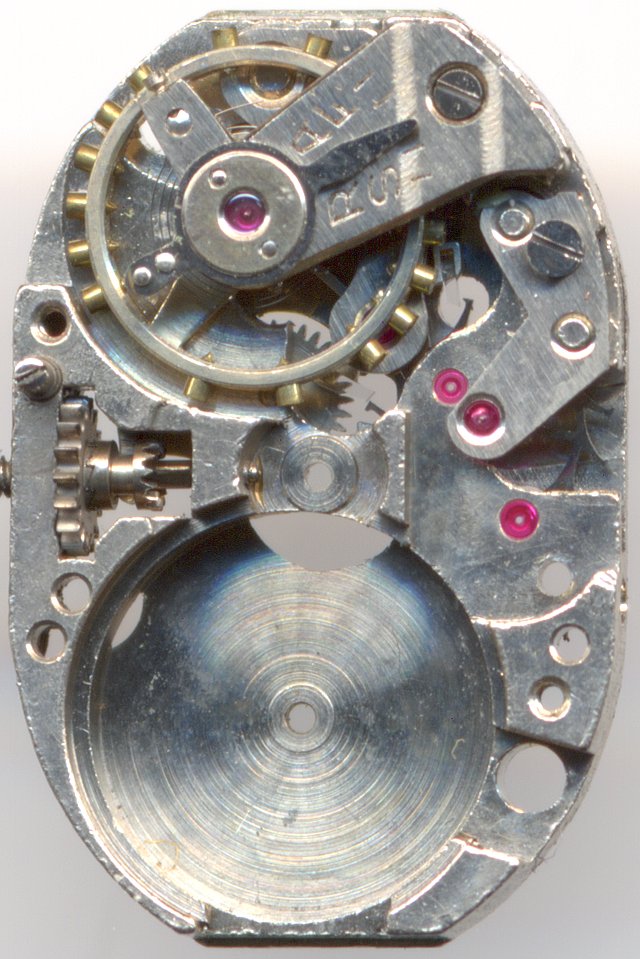

main plate

On this movement, we have speciality, that the main bridge does not only contain the bearings for fourth, third and minute wheel (the first two as jeweled bearings), but also the complete winding mechanism, including mainspring barrel bearing and safety catch. For a service, this is a bit unhandy.

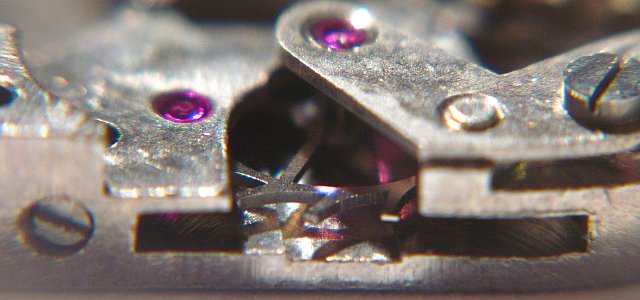

side view of the three-storied construction

On the side view, you see the escapement wheel cock. It is requied, since above, the third wheel is located. The bearing of the fourth wheel can be seen at the left of the macro photo.

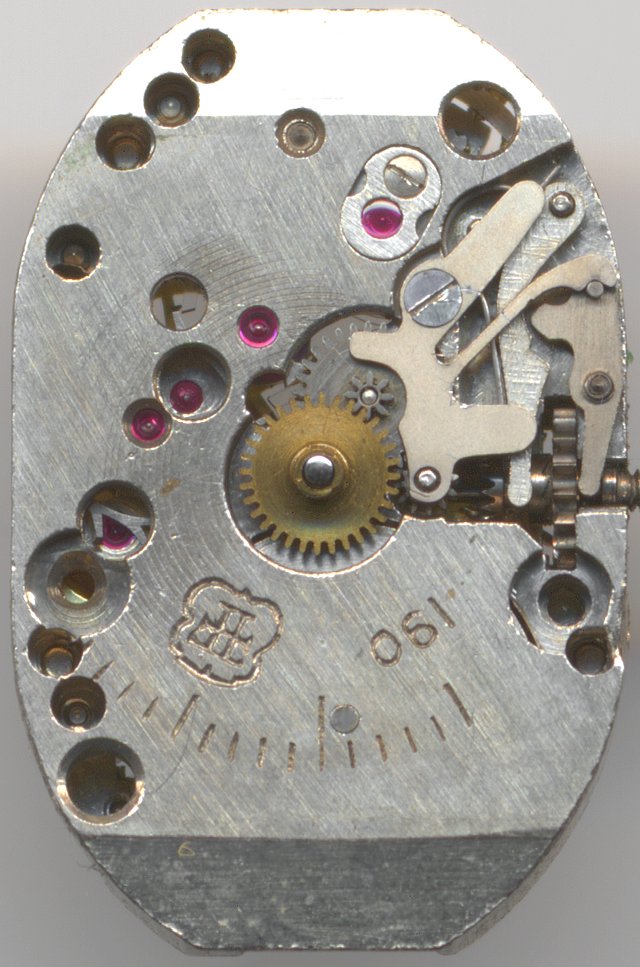

dial side view

On the dial side, you can spot the age of this movement, which was launched in the late 1940ies: At the bottom, there's an engraved minute dial, which helps the watchmaker on regulating the device. And, as sometimes seen on old movement, the escapement pallets are made of transparent material (but of which one exactly?) - at position "10", you can spot them.

Of course, this rather high quality form movement uses a yoke winding system.

Technical data

Manufacturer	FHF
Caliber	190
Number of jewels	15
Escapement	Anchor with pallets
Balance	Nickel screw balance
Shock protection(s)	none
Balance cock direction	counterclockwise
Hairspring stud	fixed
Regulator type	Long regulator arm
Movement construction	Fork Escapement wheel Fourth wheel, Third wheel, Center wheel, Mainspring barrel
Construction type	solid construction
Bridge shape	Laughing fisch, 3 gears
Winding mechanism	yoke
Setting lever spring	2 holes
Functions	Hour, minute
Beats per hour	18000
Size	5¹/₄''' (measured: 12,4 x 19,15 mm)
Image in Flume Werksucher	1949 19

Factsheet

Test Results

The specimen tested here is about 60 years old; when it was serviced last is not determinable, but since it came into the test lab without case, it can be assumed, that it is not in an optimal state. Because of that, the test results have to be taken with a grain of salt and are certainly not representative for the high quality FHF 190 series.

Timegrapher Protocol

On the timegrapher, the tested specimen showed very different results:

While on the horizontal positions, it ran very well (in position "dial down" with no deviation at all, even in "double precision" mode of the timegrapher), it performed very poor on the vertical positions with deviations of up to several minutes per day. This is a clear indication, that either the balance staff is bent or worn out, or that this specimen almost "cries" for a service. The wave patters at "12 up" and "9 up" confirm this, but they can also indicate, that the depthing of the escapement is not enough.
