FHF 37 (INT)
 |
| FHF 37 (INT) |
|
Description

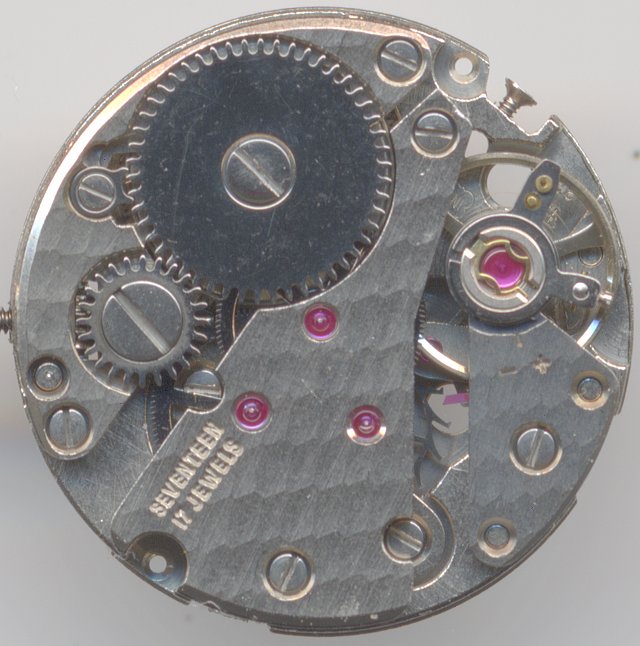

In the seventies, the FHF 37 was released as a movement of their late period. You see
on this movement, that it was designed with cost reduction in mind, by looking at the
"hammer-nail decoration" (or non-decoration) of the plates or the very large yoke spring,
which also keeps the minute wheel in position.
Technically, the movement is very well made, the tiny ring balance is of course secured by
two Incabloc shock protections and beats with contemporary fast 21600 A/h. The center second
hand is directly driven and is on the same position as the minute gear one layer deeper.
On the dial side, there's a yoke winding system, which is already equipped with a very
large and pretty ugly yoke spring and so doesn't look much better than a rocking bar
winding mechanism.
 |

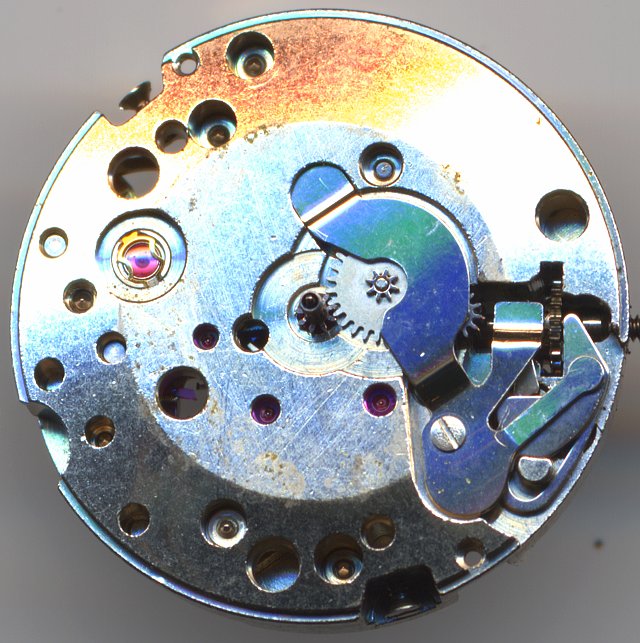

| dial side view |
|
Technical data
| Manufacturer | FHF |
| Caliber | 37 (INT) |
| Number of jewels | 17 |
| Escapement | Anchor with pallets |
| Balance | Nickel |
| Shock protection(s) | Incabloc |
| Balance cock direction | counterclockwise |
| Hairspring stud | moveable |
| Regulator type | Hairspring key |
| Movement construction | Fork
Escapement wheel, Fourth wheel, Third wheel
Center wheel
Mainspring barrel |
| Features | SCD |
| Functions | Hour, minute, second |
| Beats per hour | 21600 |
| Size | 83/4''' |
| Image in Flume Werksucher | K3N1 - |
|
| Factsheet |

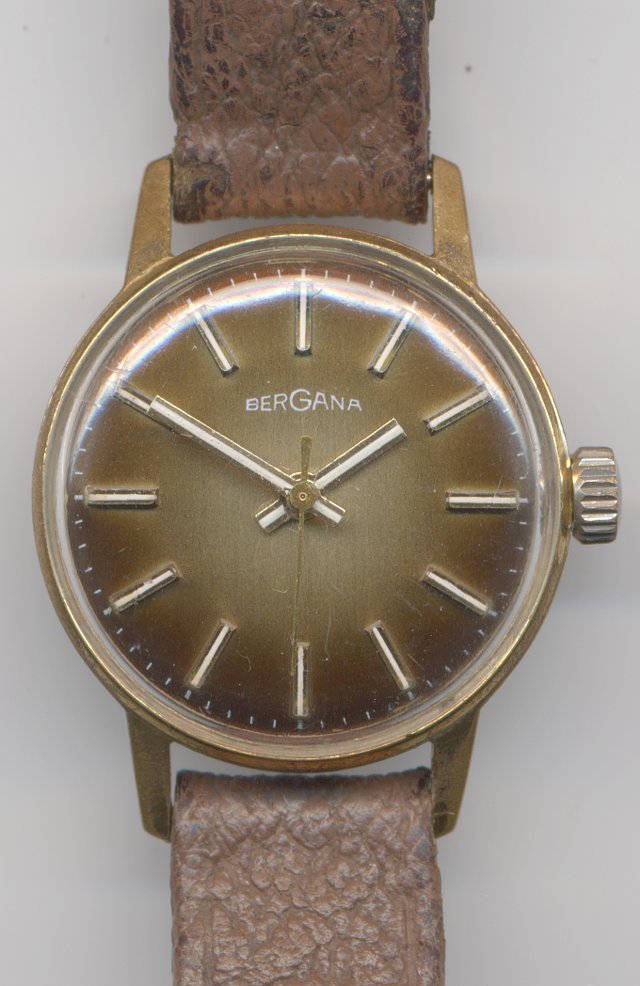

Usage gallery
