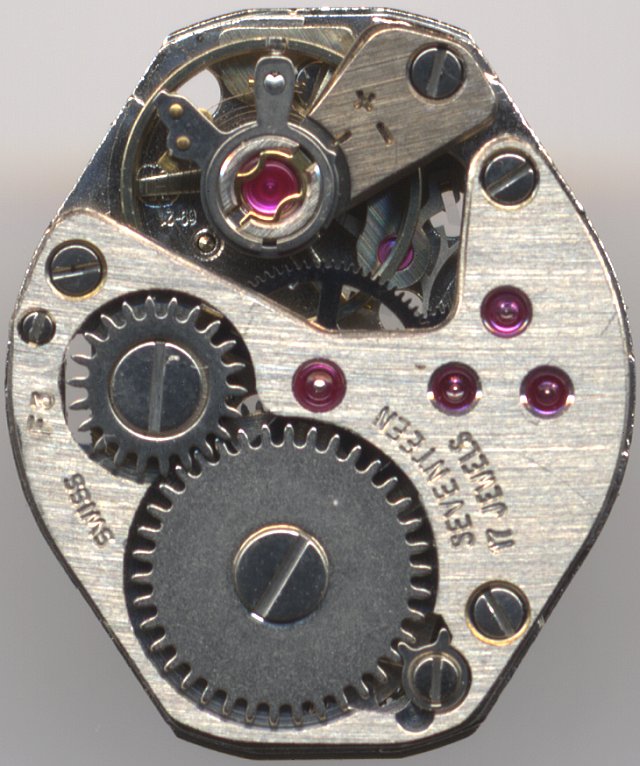

FHF 69-21 (Standard)
 |
| FHF 69-21 (Standard) |
|
Description
A truely standard ladies' watch form movement was the FHF caliber
69-21, which was markted with the "Standard" suffix.
It had the ubiqutous size of 6 3/4 x 8 lignes, 17 jewels, an
Incabloc-protected balance and the trailing "-21" denoted, that
it was a higher beating movement with 21600 A/h.
 |

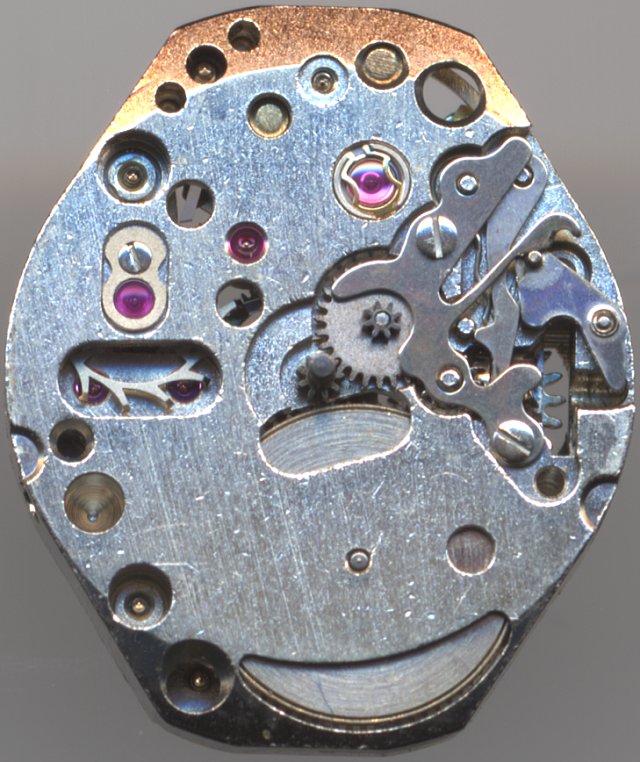

| dial side view |
|
Technical data
| Manufacturer | FHF |
| Caliber | 69-21 (St) |
| Number of jewels | 17 |
| Escapement | Anchor with pallets |
| Balance | Nickel |
| Shock protection(s) | Incabloc |
| Balance cock direction | counterclockwise |
| Hairspring stud | moveable |
| Regulator type | Fonto |
| Movement construction | Fork
Escapement wheel, Fourth wheel, Third wheel, Center wheel
Mainspring barrel |
| Functions | Hour, minute |
| Beats per hour | 21600 |
| Size | 63/4 x 8''' |
| Image in Flume Werksucher | K3 86 |
|
| Factsheet |

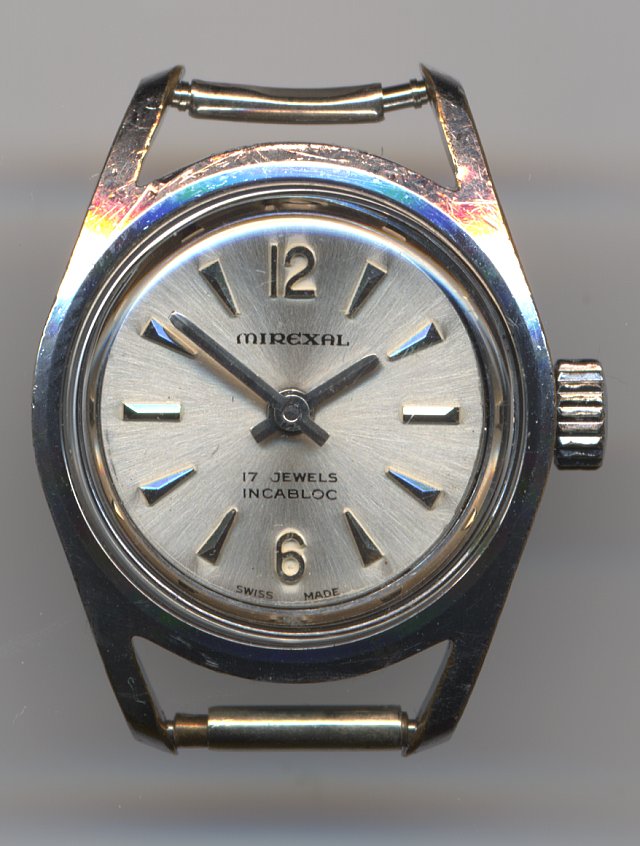

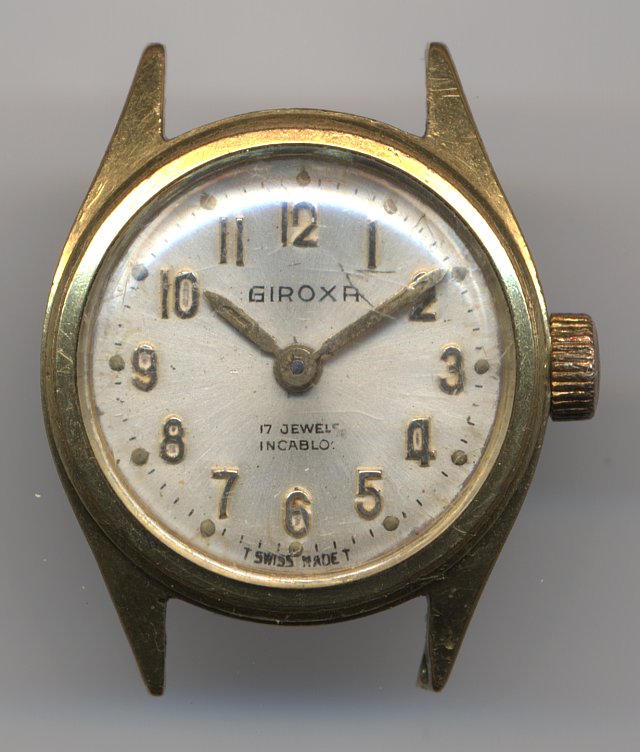

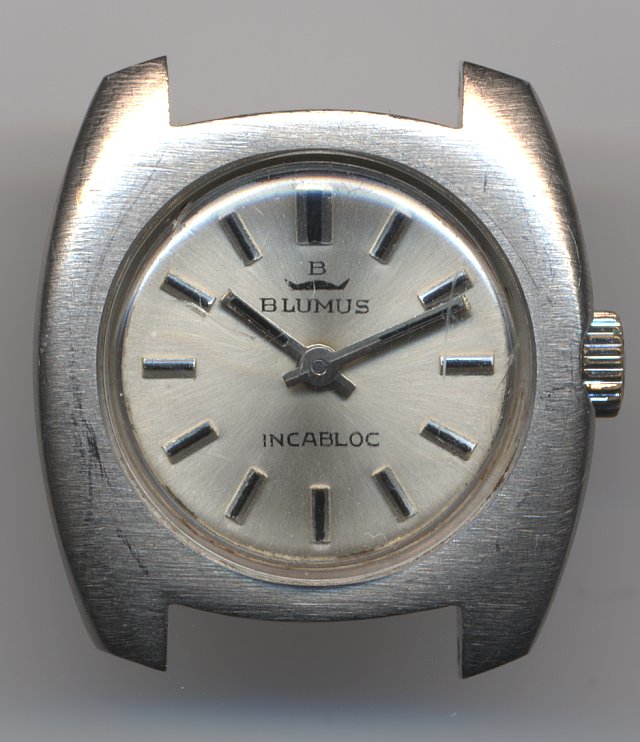

Usage gallery
