FHF 96 (ST)
 |
| FHF 96 (ST) |
|
Description

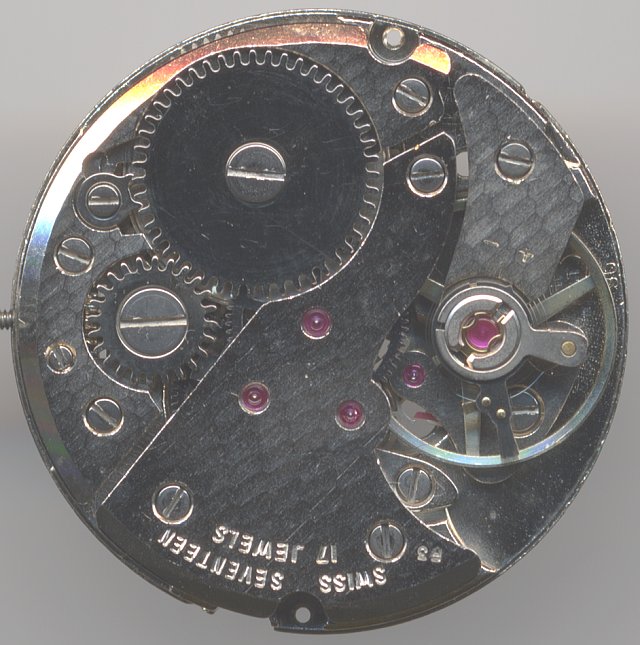

The FHF (Standard) caliber 96, a men's size movement, which was used
frequently, is a direct relative of the vintage
FHF 67,
althogh the shape and decoration of the bridges is much more modern.
The center second hand is driven directly; the ring balance does not have a
long regulator arm, but a quick release mechanism for the hairspring regulator -
a very useful detail for a service.

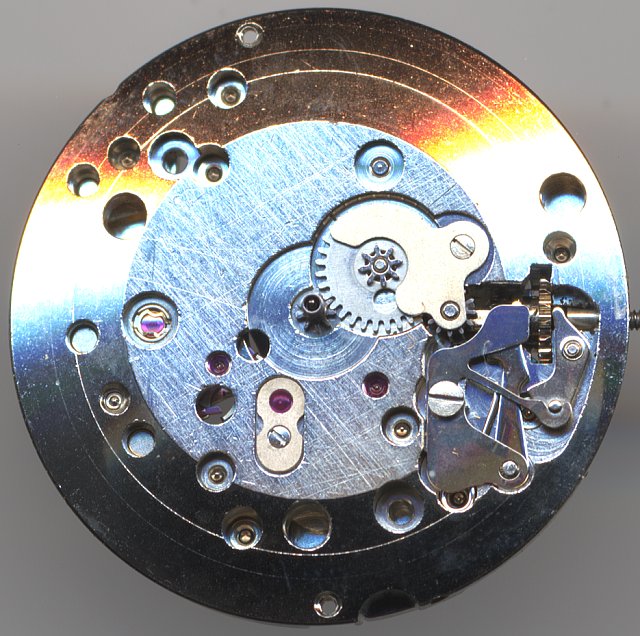

On the dial side, you see the familiar yoke winding mechanism.
 |
| dial side view |
|
Technical data
| Manufacturer | FHF |
| Caliber | 96 (ST) |
| Number of jewels | 17 |
| Escapement | Anchor with pallets |
| Balance | Nickel |
| Shock protection(s) | Incabloc |
| Balance cock direction | clockwise |
| Hairspring stud | moveable |
| Regulator type | Fonto |
| Movement construction | Fork
Escapement wheel, Fourth wheel, Third wheel
Center wheel
Mainspring barrel |
| Features | SCD |
| Functions | Hour, minute, second |
| Beats per hour | 18000 |
| Size | 111/2''' |
| Image in Flume Werksucher | K3 39 |
|
| Factsheet |

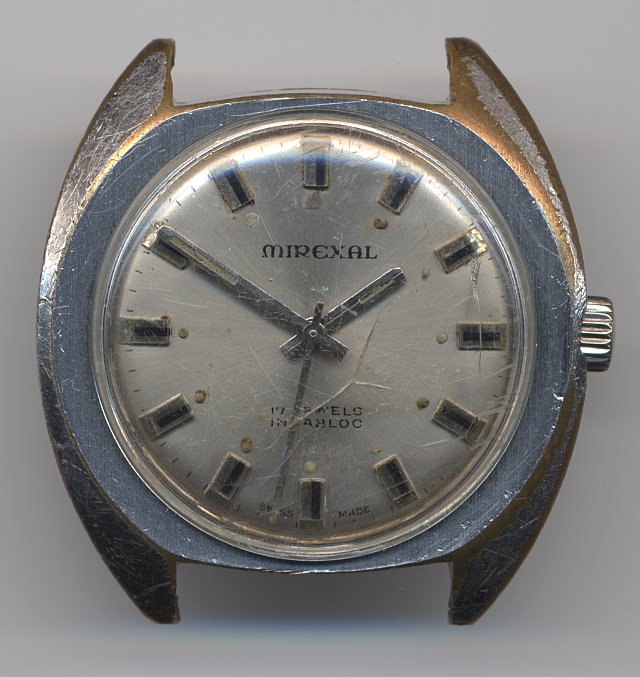

Usage gallery
