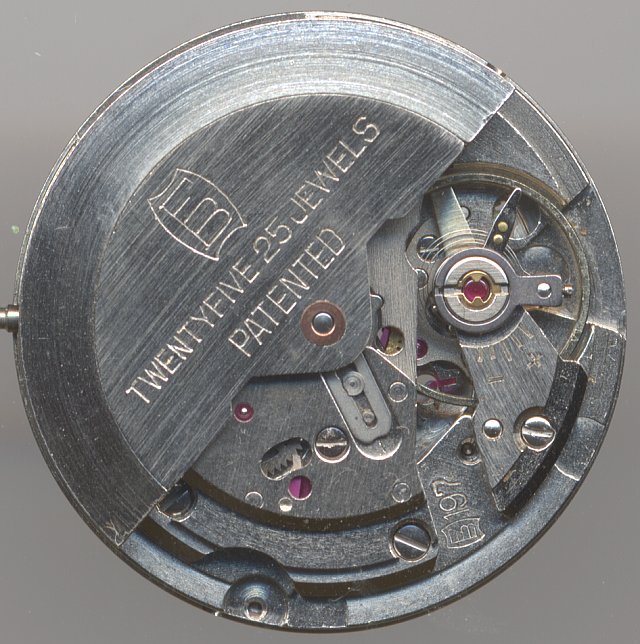

Förster 197
 |
| Förster 197 |
|
Description
Hard to beliege, but this modern Förster selfwindig movement was already the last but one
mens' selfwindig movement, which Förster launched. It was already available at the beginning
of the sixties.
The caliber 197 contains a bidirectional selfwindig system, which is disconnected on handwindig
by a Breguet-type clutch, which is located below the first gear (at 8:30). To save some space,
the crown wheel is slantedly mounted (with its deepest position at 8:30) - an unconventional
solution.
The contemporary two-leg ring balance is beared in two Antichoc S 65 shock protection systems
and still beats slowly with 18000 A/h. The hairspring is connected to a moveable stud and
the regulator contains an arm to achieve a simpler regulation.
On the dial side, there's a rather complex date mechanism, which slowly advances the date.
 |
| view without rotor |
|
 |

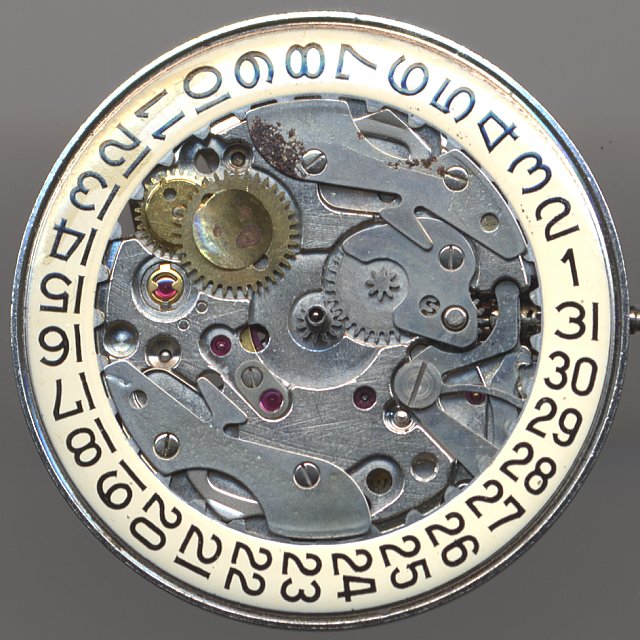

| dial side view |
|
Technical data
| Manufacturer | Förster |
| Caliber | 197 |
| Number of jewels | 25 |
| Escapement | Anchor with pallets |
| Balance | Nickel |
| Shock protection(s) | Antichoc S65 |
| Balance cock direction | counterclockwise |
| Hairspring stud | moveable |
| Regulator type | Hairspring key |
| Features | SCD,QG,AUT |
| Functions | Hour, minute, second, day, selfwinding |
| Beats per hour | 18000 |
| Size | 111/2''' |
| Image in Flume Werksucher | K2 - / K3 176 |
|
| Factsheet |

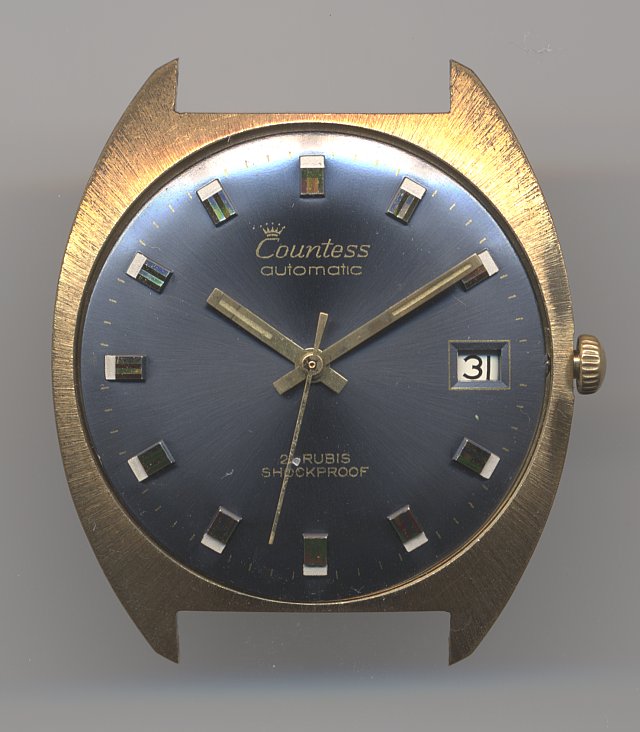

Usage gallery
