HB 115MS
 |
| HB 115MS |
|
Description
The HB caliber 115 MS originates from Pforzheim, Germany and is a typical mid class
german wristwatch movement.
It contains 17 jewels, with two of them used as cap jewels on the dial side, which is pretty
unusual. The screw balance runs in two shock protection systems, maybe Monorex, and there is
a long regulator arm with a nice dial on the balance cock.
The movement, which uses a directly driven center second hand, is built in two levels, which
makes it appear rather high.
 |

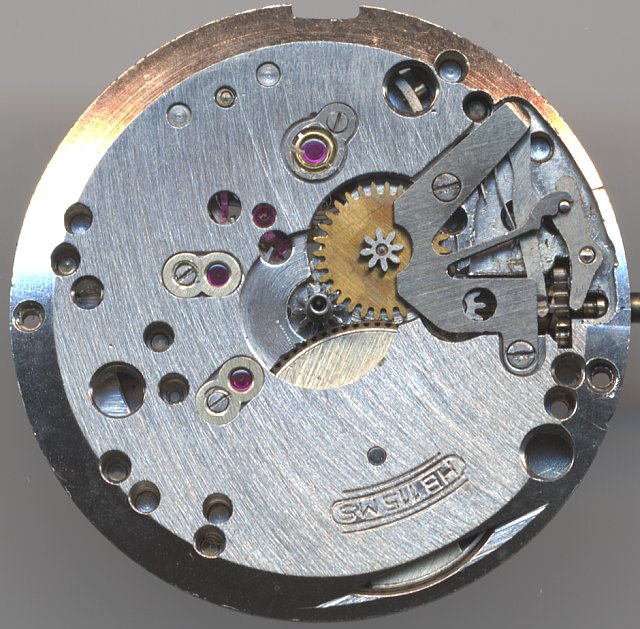

| dial side view |
|
Technical data
| Manufacturer | HB |
| Caliber | 115 MS |
| Number of jewels | 17 |
| Escapement | Anchor with pallets |
| Balance | Nickel screw balance |
| Shock protection(s) | ??? |
| Balance cock direction | clockwise |
| Hairspring stud | fixed |
| Regulator type | Long regulator arm |
| Movement construction | Fork
Escapement wheel, Fourth wheel, Third wheel
Center wheel, Mainspring barrel |
| Features | SCD |
| Functions | Hour, minute, second |
| Beats per hour | 18000 |
| Size | 111/2''' |
| Image in Flume Werksucher | 1957 33 |
|
| Factsheet |

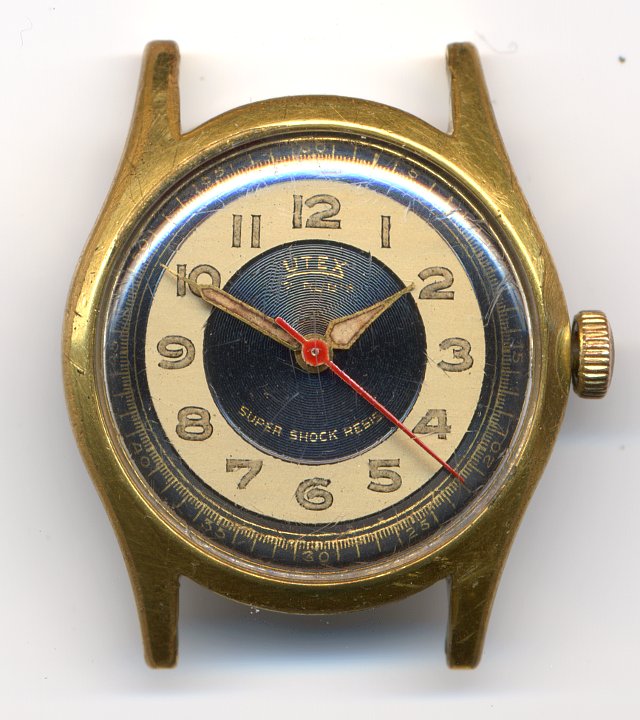

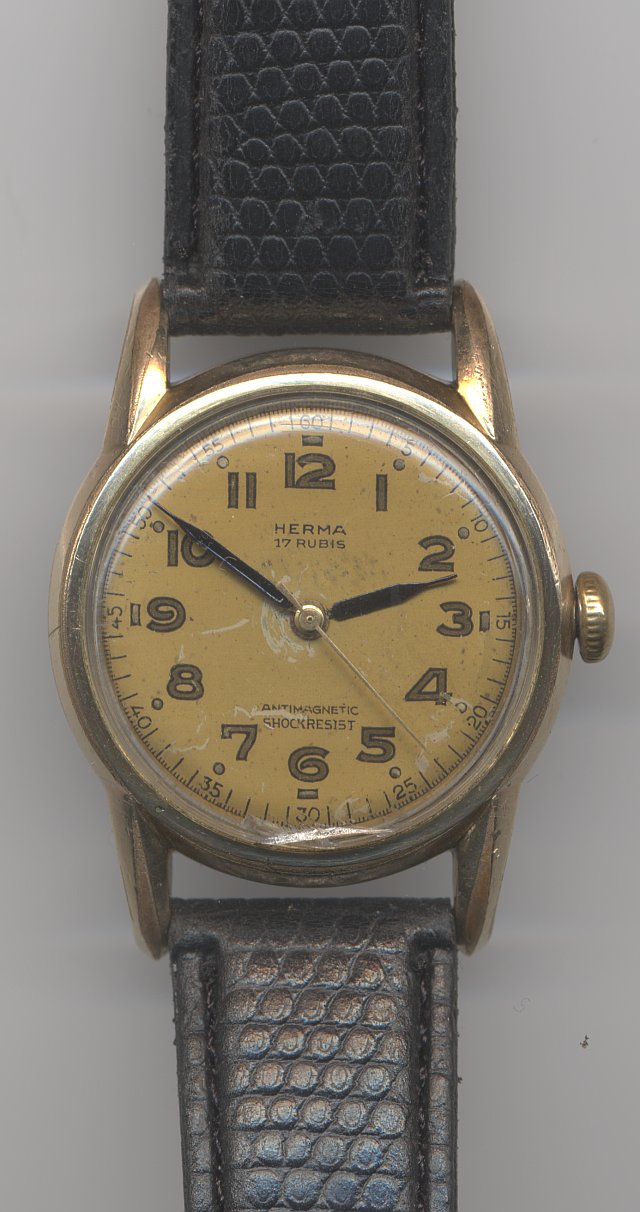

Usage gallery
