Description

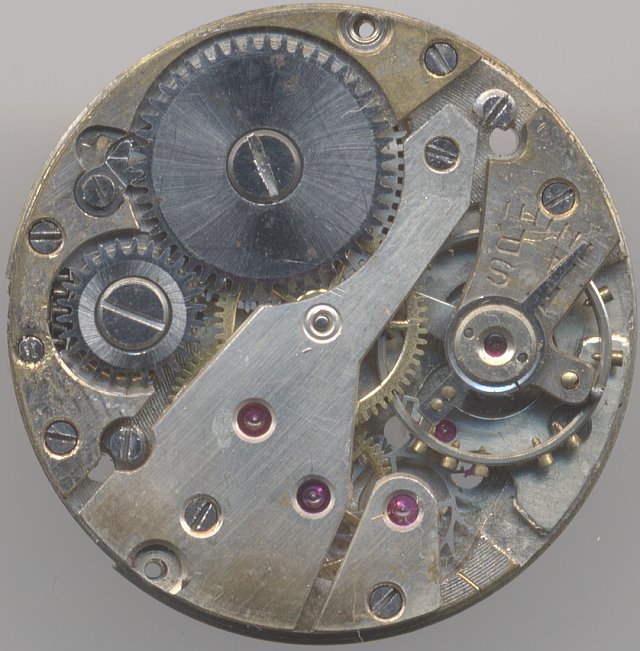

The Caliber 120 described here was made by the french ebauches manufactury Judex. It is a common pre-WW-II anchor movement with unsecured screw balance, fifteen jewels and a decentral second indication.

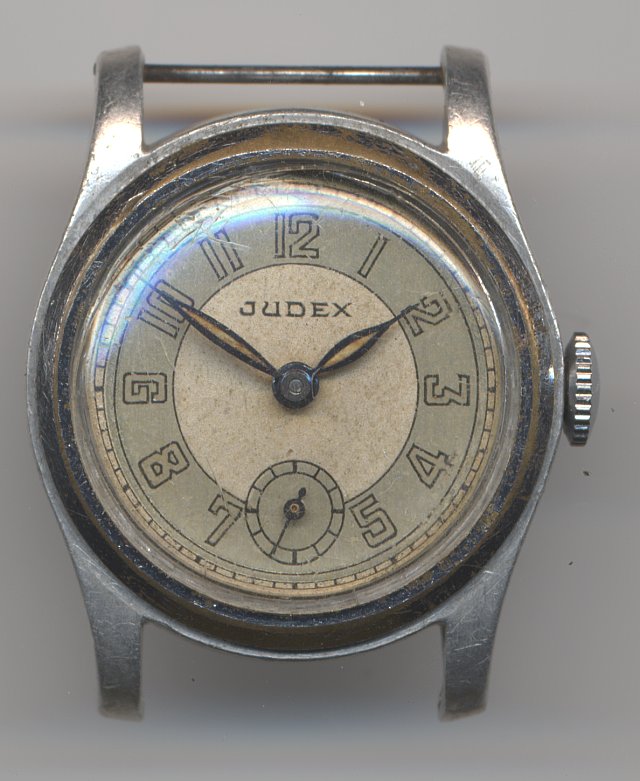

dial view
dial view



Technical data

ManufacturerJudex
Caliber120
Number of jewels15
EscapementAnchor with pallets
BalanceNickel screw balance
Shock protection(s)none
Balance cock directionclockwise
Hairspring studfixed
Regulator typeLong regulator arm
Movement constructionFork
Escapement wheel
Fourth wheel, Third wheel, Center wheel
Mainspring barrel
Featuress
FunctionsHour, minute, small second
Beats per hour18000
Size101/2'''
Image in Flume Werksucher 1947 28
