Junghans J 99/1
 |
| Junghans J 99/1 |
|
Description
In the 1950ies, Junghans produced the caliber J 99/1, which bases on the caliber J 99
but contains an inhouse shock protection system.
This form movement in ladies' size is a bit bellied, still uses 15 jewels and contains
a swiss pallet anchor escapement.
It has got a rather cheap rocking bar winding mechanism below the dial - a detail found
on many cheaper pallet anchor watches of the fifties. Technically a yoke winding mechanism
is more elaborated and long lasting and can be easier maintained, but on the rocking bar
mechanism used here, there's a helpful detail: The click spring can be moved away without
removing the detail, thus allowing the watchmaker to release the mainspring.
 |

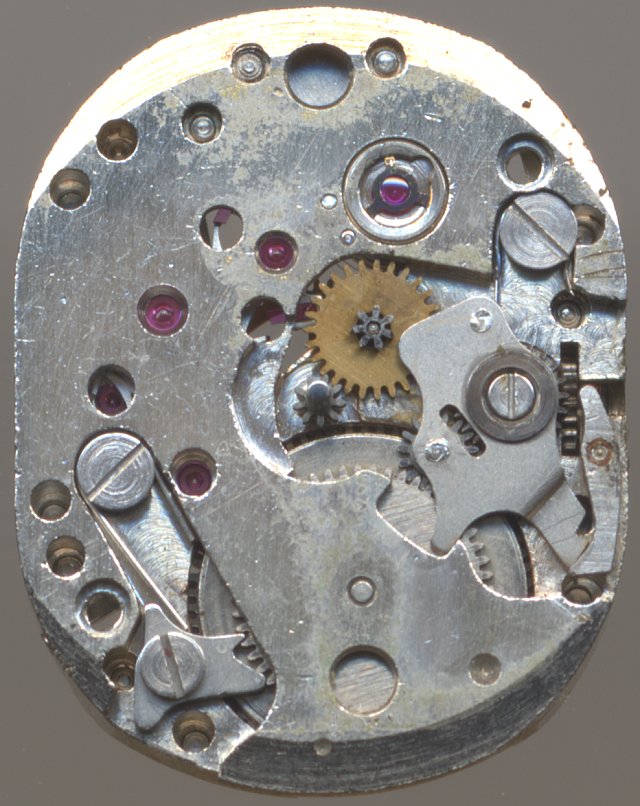

| Dial view |
|
Technical data
| Manufacturer | Junghans |
| Caliber | J 99/1 |
| Number of jewels | 15 |
| Escapement | Anchor with pallets |
| Balance | Nickel |
| Shock protection(s) | Junghans |
| Balance cock direction | clockwise |
| Hairspring stud | fixed |
| Regulator type | Long regulator arm |
| Movement construction | Fork
Escapement wheel, Fourth wheel, Third wheel
Center wheel, Mainspring barrel |
| Functions | Hour, minute |
| Beats per hour | 18000 |
| Size | 63/4 x 81/2''' |
| Image in Flume Werksucher | 1957 48 |
|
| Factsheet |
