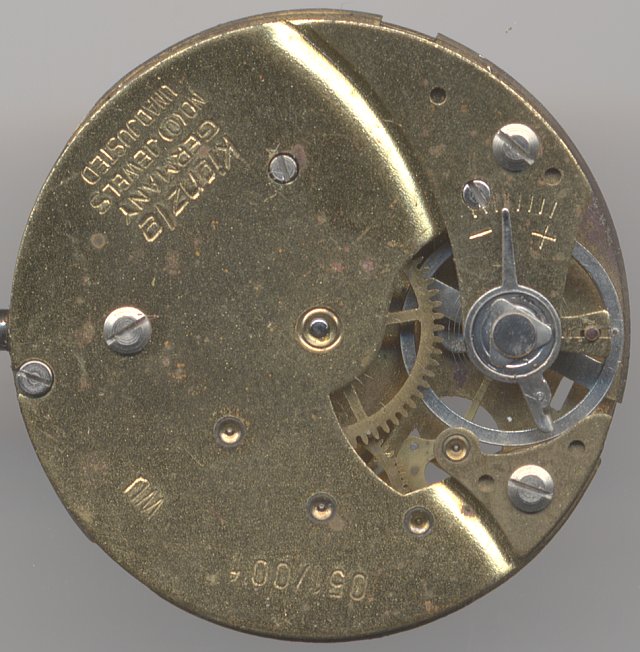

Kienzle 051/00f
 |
| Kienzle 051/00f |
|
Description
The Kienzle caliber 051/00f is a very typical Kienzle pin lever movement without jewel bearings.
The ring balance uses a pointed staff and therefor lacks a shock protection. Since the balance cock has
to be adjusted perfectly in height, Kienzle uses a quite ingenious and funny construction: A small
screw on the balance cock bends(!) it to the required height.
The rest of the movement is pretty standard for Kienzle: A simple pin lever escapement (without
jewel pins), a small decentral second hand and a rocking bar winding mechanism on the dial side.
 |

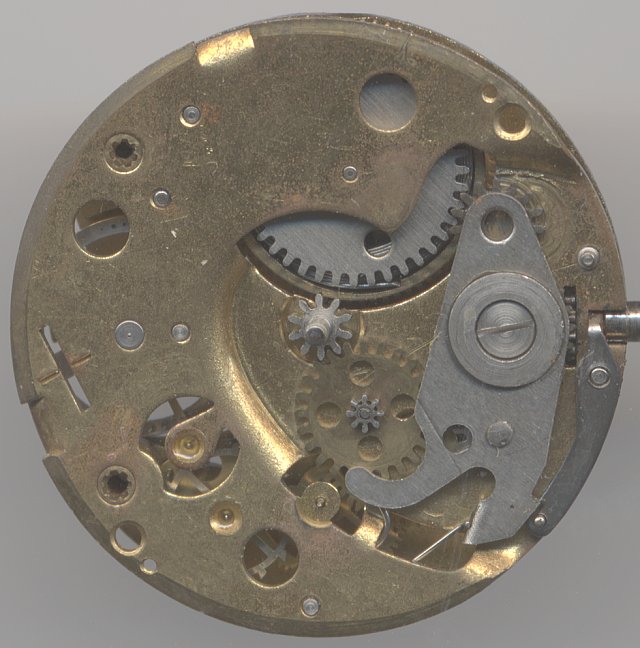

| dial side view |
|
Technical data
| Manufacturer | Kienzle |
| Caliber | 051/00f |
| Number of jewels | 0 |
| Escapement | pin lever |
| Balance | Nickel |
| Shock protection(s) | none |
| Balance cock direction | clockwise |
| Hairspring stud | fixed |
| Regulator type | Long regulator arm |
| Movement construction | Fork
Escapement wheel, Fourth wheel, Third wheel, Center wheel, Mainspring barrel |
| Features | s |
| Functions | Hour, minute, small second |
| Beats per hour | 18000 |
| Size | 12''' |
| Image in Flume Werksucher | 1958 r.90 |
|
| Factsheet |

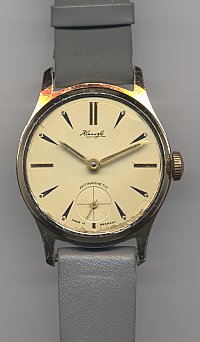

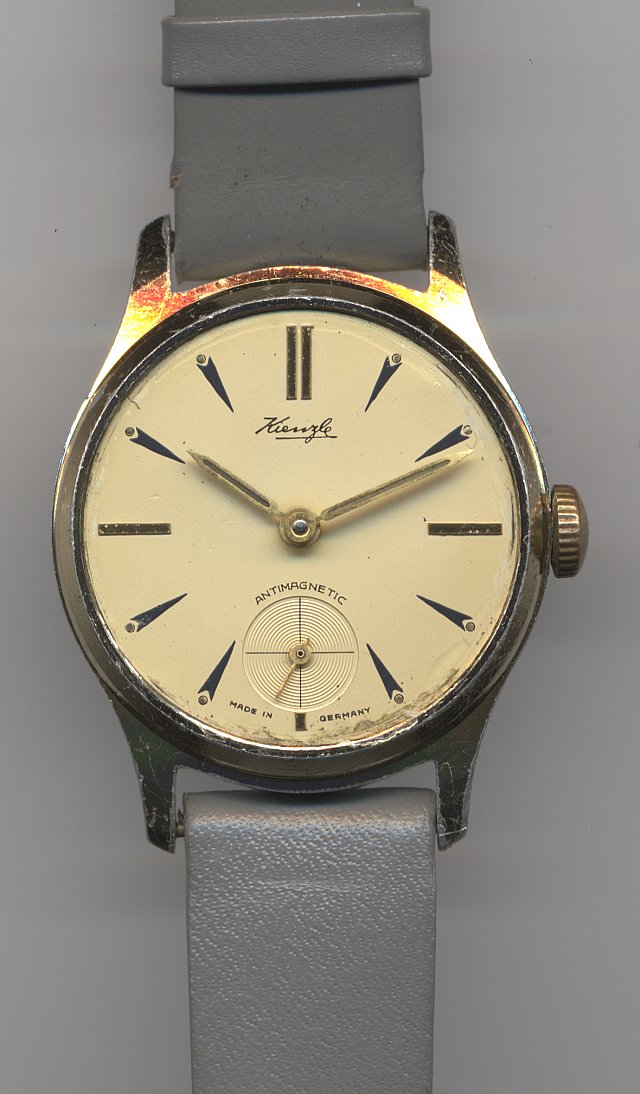

Usage gallery
