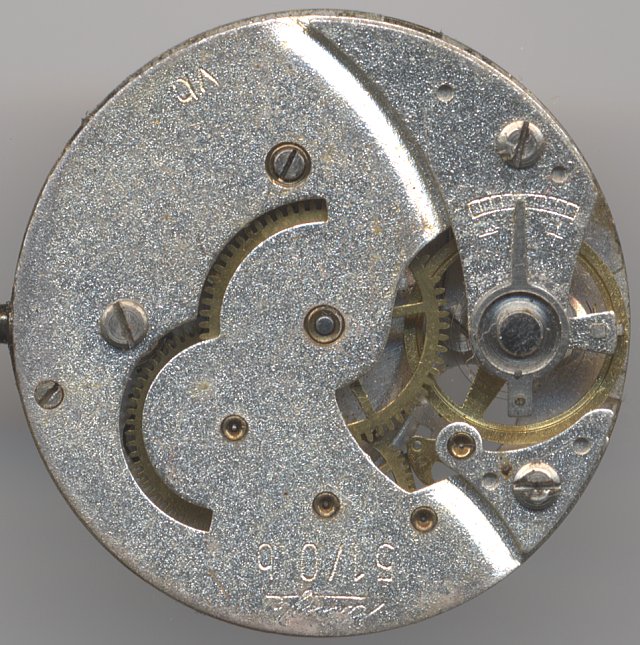

Kienzle 51/0 b
 |
| Kienzle 51/0 b |
|
Description

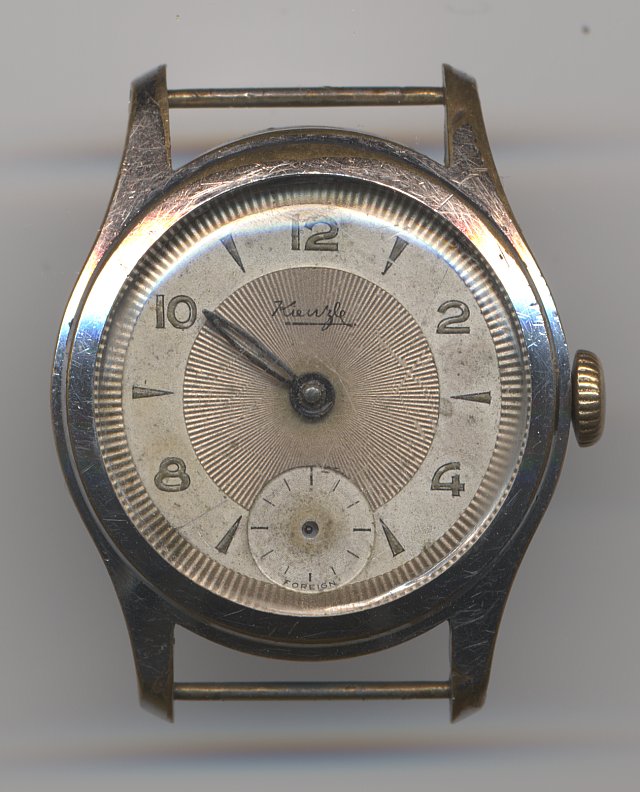

That Kienzle movement seems to be pretty old. It still carries the old
Kienzle sign and on the dial, that was attached to it, its origin country
was named "foreign", which refers to the 40ies or 50ies.
The movement is as most other Kienzle movements a simple pin lever
movement with no jewels, no shock protection and rocker winding mechanism.
As always, the mainspring barrel can be exchanged easily.
On the pro side, there are details like a long hairspring regulator or brass
bearings. They are responsible for the movement still running fine after
half a century.
 |

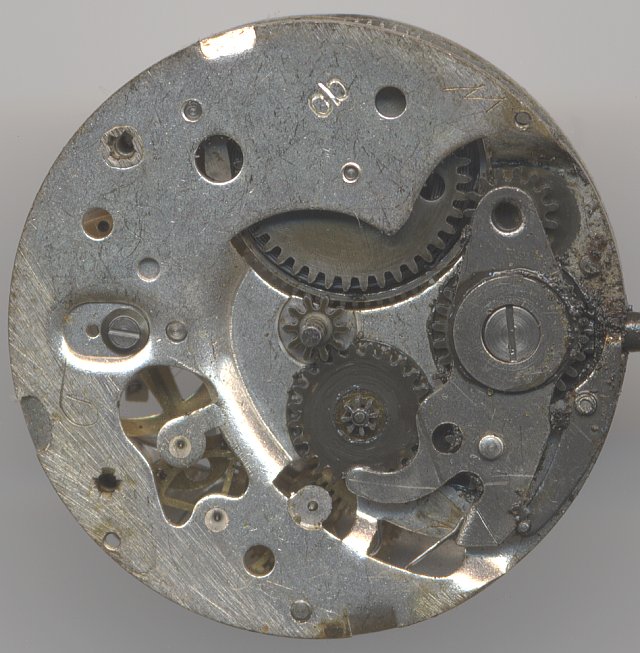

| dial side view |
|
Technical data
| Manufacturer | Kienzle |
| Caliber | 51/0 b |
| Number of jewels | 0 |
| Escapement | pin lever |
| Balance | Nickel |
| Shock protection(s) | none |
| Balance cock direction | clockwise |
| Hairspring stud | fixed |
| Regulator type | Long regulator arm |
| Movement construction | Fork
Escapement wheel, Fourth wheel, Third wheel, Center wheel
Mainspring barrel |
| Features | s |
| Functions | Hour, minute, small second |
| Beats per hour | 18000 |
| Size | 12''' |
| Image in Flume Werksucher | 1958 r.90 |
|
| Factsheet |
Usage gallery
