Langendorf 600
 |
| Langendorf 600 |
|
Description
The Langendorf 600 is a pretty small ladies' watch movement with a diameter of
6 3/4 lignes. It appeared on the marked in the 1960ies and was contemporarily modern with
its Incabloc-shock protected three-leg ring balance, it's
moveable hairspring stud
and its beating frequency of 21600 A/h.
 |

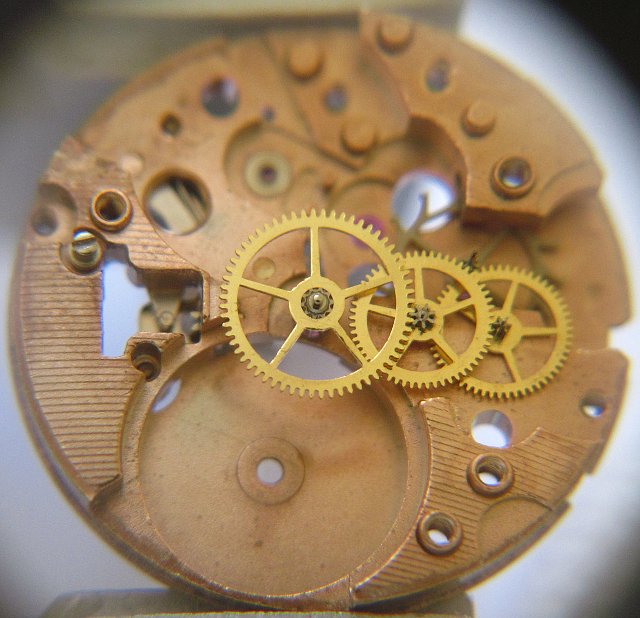

| motion works |
|
The space-saving construction does not use all the avalable space, especially on the sides,
there's a lot of unused space.
 |

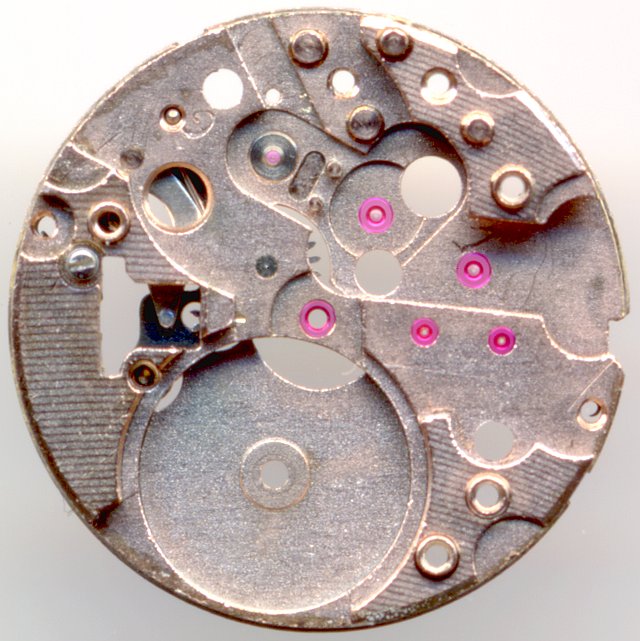

| main plate |
|
Of course, all gears run in synthetic rubies, even the minute wheel.
 |
| dial side view |
|
Like every good movement, the Langendorf 600 uses a
yoke winding system, too.
Technical data
| Manufacturer | Langendorf |
| Caliber | 600 |
| Number of jewels | 17 |
| Escapement | Anchor with pallets |
| Balance | Nickel |
| Shock protection(s) | Incabloc |
| Balance cock direction | counterclockwise |
| Hairspring stud | moveable |
| Regulator type | Hairspring key |
| Movement construction | Fork
Escapement wheel, Fourth wheel, Third wheel, Center wheel
Mainspring barrel |
| Construction type | solid construction |
| Bridge shape | 4 gears, 3 in one line |
| Winding mechanism | yoke |
| Setting lever spring | 3 holes |
| Functions | Hour, minute |
| Beats per hour | 21600 |
| Size | 63/4''' (measured: 15,35 mm) |
| Image in Flume Werksucher | K3 - |
|
| Factsheet |

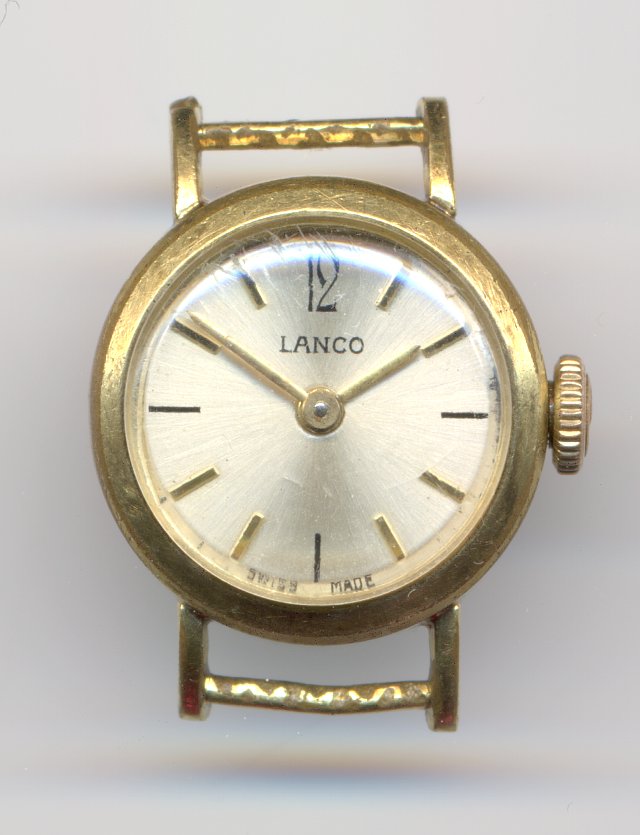

Usage gallery
