Langendorf 824
 |
| Langendorf 824 |
|
Description

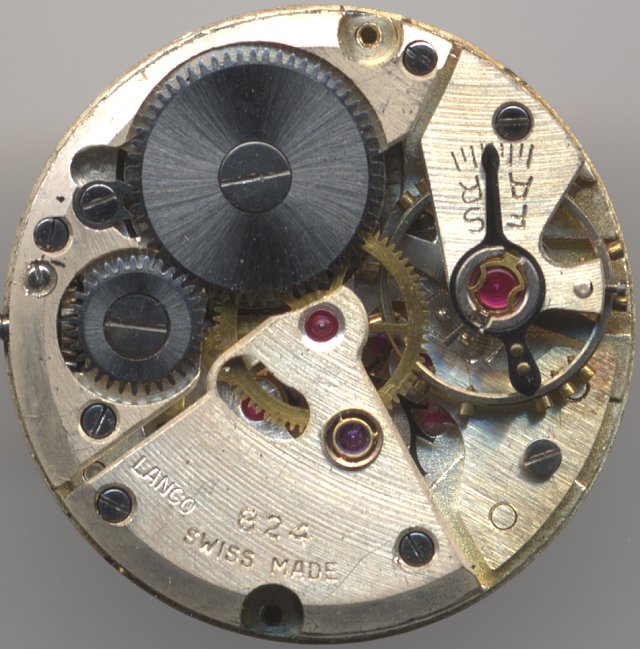

The Langendorf Caliber 824 is a very nice and very well made ladies' watch
movement, in construction, as well as optical with its nickel siver plates.
It has got a rather small screw balance, which runs in an Incabloc shock protection,
and whose hairspring is regulated by a very nicely shaped regulator arm.
The anchor wheel is, unusual for movements of that age, beared in a chator with
a shock protection. And unusual, too, is the direct driven center secind.
 |

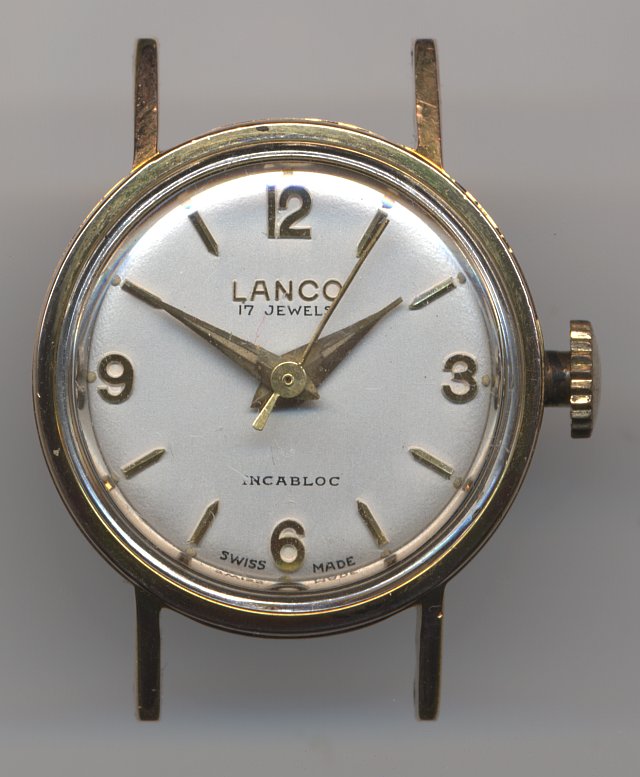

| dial side view |
|
Technical data
| Manufacturer | Langendorf |
| Caliber | 824 |
| Number of jewels | 17 |
| Escapement | Anchor with pallets |
| Balance | Nickel |
| Shock protection(s) | Incabloc |
| Balance cock direction | clockwise |
| Hairspring stud | fixed |
| Regulator type | Long regulator arm |
| Movement construction | Fork
Escapement wheel, Fourth wheel
Third wheel, Center wheel
Mainspring barrel |
| Features | SCD |
| Functions | Hour, minute, second |
| Beats per hour | 18000 |
| Size | 83/4''' |
| Image in Flume Werksucher | K2 - |
|
| Factsheet |
