Parrenin 1641D
|
Description

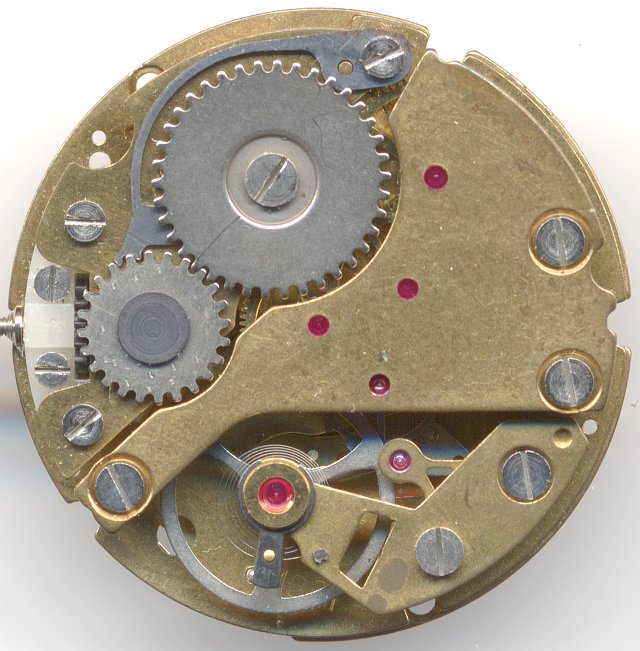

The Parrenin caliber 1641D is a very cheaply constructed pin lever movement.It was probably constructed in the early 1970ies and uses a modern three-leg balance, but on the other hand lacks a shock protection and a moveable hairspring stud.
Nevertheless, all bearings of this movement use synthetic rubis, those of third and
fourth weel are even covered with a cap jewel, which finally enables the manufacturer
to print the "17 jewels" inscription on the dial and makes it impossible for the
potential buyer to find out about the low quality inside. The second hand is by the
way directly driven.
|

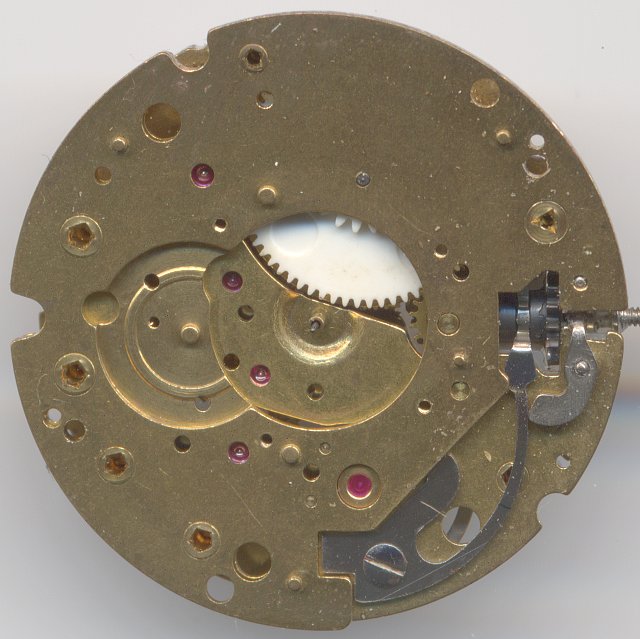

On the dial side, you'll find the familiar Roskopf-type construction, which can often be found on pin lever movements. The mainspring barrel wheel works in this construction as reduction wheel for the hour hand and so drives both hands, minute- and hour hand directly. They can both be removed easily.
Interestingly, this movement used a yoke winding system, which is constructed in a very
simple, but quite genious way: The spring yoke works as yoke, thus dramatically reducing
the number of parts for the winding system.
|

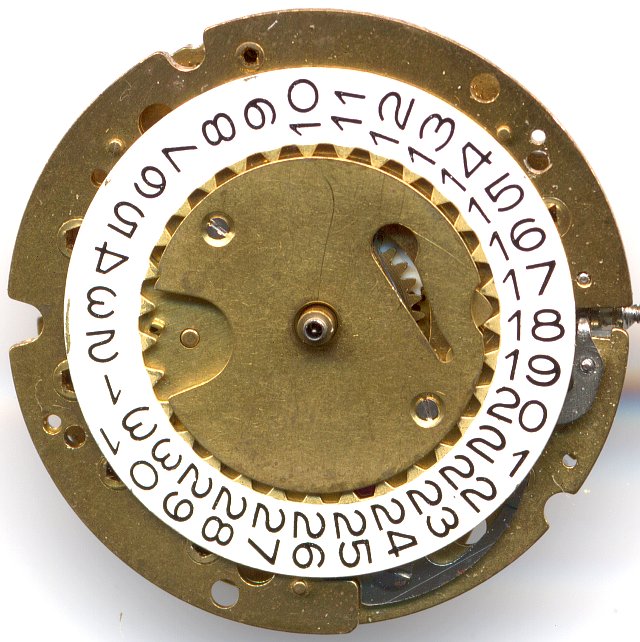

The Parennin 1641D uses a very simple made date mechanism, which advances slowly and cannot be corrected in a faster way.
P.S.: Big thanks to dutchwatch1, who identified this movement.
Technical data
Manufacturer Parrenin Caliber 1641D Number of jewels 17 Escapement pin lever Balance Nickel Shock protection(s) none Balance cock direction clockwise Hairspring stud fixed Regulator type Hairspring key Movement construction Fork
Escapement wheel, Fourth wheel, Third wheel, Large driving wheel
Mainspring barrelFeatures SCD,QG Functions Hour, minute, second, day Beats per hour 18000 Size 111/2''' Factsheet

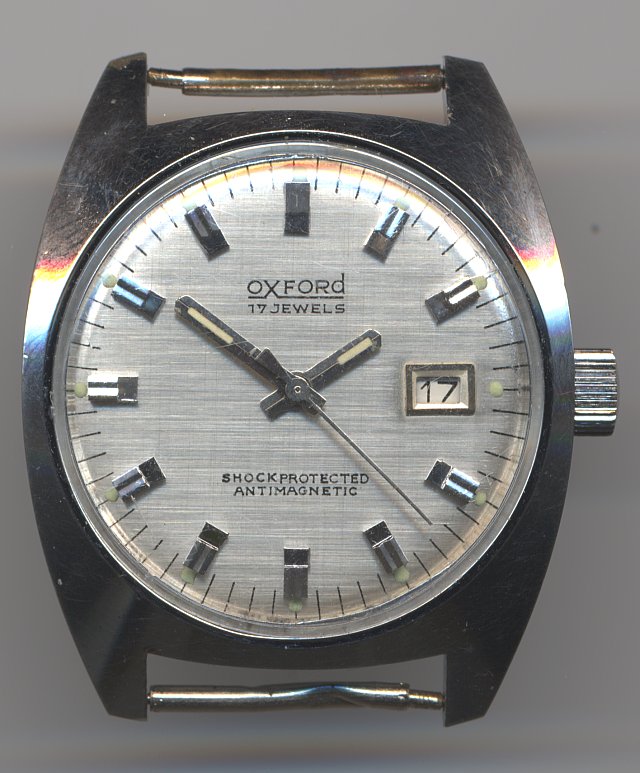

Usage gallery
