PUW 700
 |
| PUW 700 |
|
Description
The PUW 700 is one of the earliest, probably
the earliest movement of the
german Pforzheimer Uhrenrohwerke factory. It still uses a cylinder escapement and
was produced before WW II.
 |

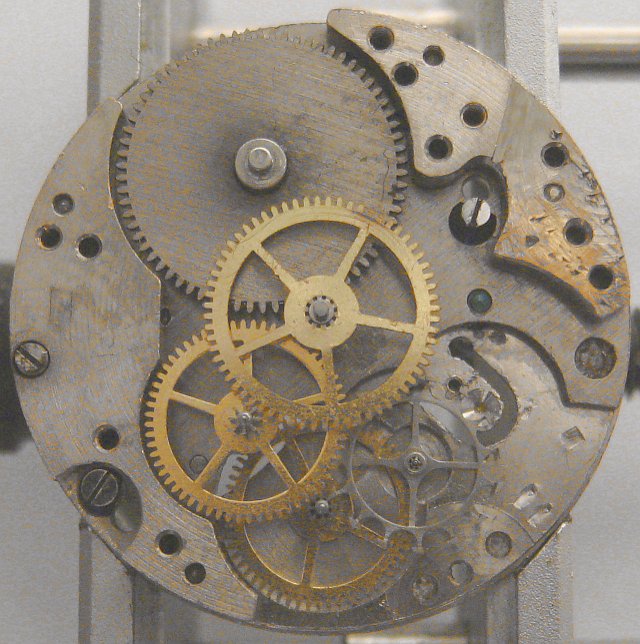

| motion works |
|
The plates of this movement are already silver-colored. This is an indication, that
the PUW 700 is a rather modern movement - as long as you can say this from cylinder movements.
 |

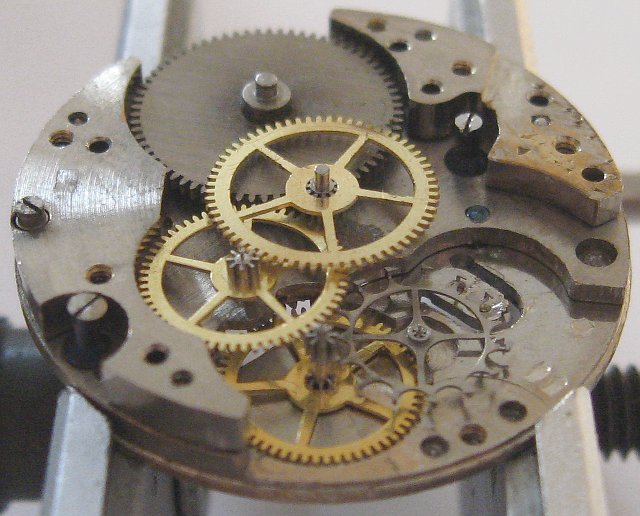

| side view |
|
The ring balance is of course not shock protected, but is ruby-beared on both sides (both
with bearing ruby and cap ruby). There are no further jewels in this movement.
 |

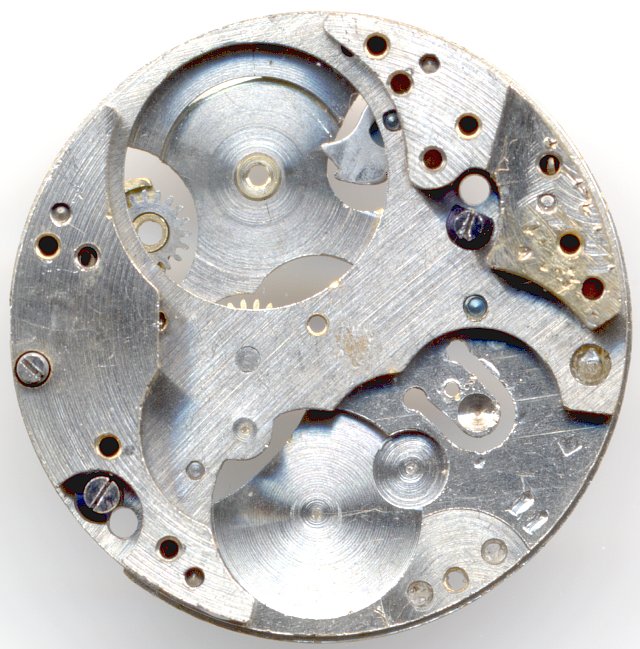

| main plate |
|
A notable fact on this movement is, that besides it simple construction, it shows details
of "better" movement, such as blued screws on the dial side.
 |

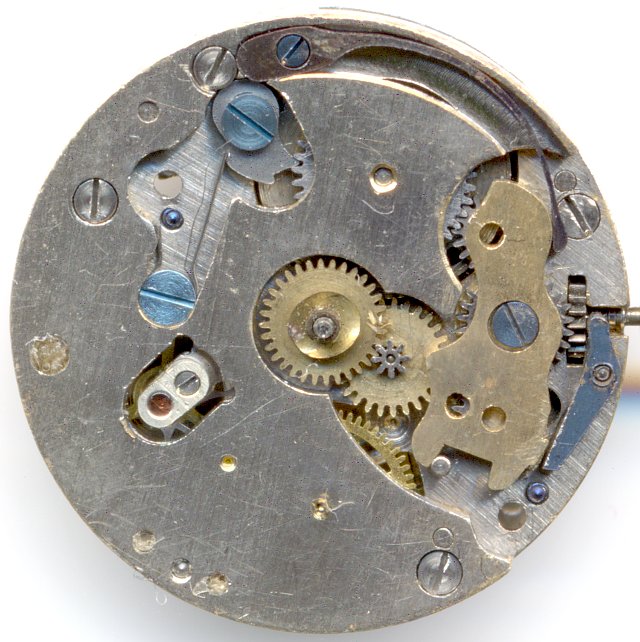

| dial side view |
|
The PUW 700 has got a rocking bar winding system and a constructively well made
click mechanism.
Technical data
| Manufacturer | PUW |
| Caliber | 700 |
| Number of jewels | 4 |
| Escapement | cylinder |
| Shock protection(s) | none |
| Balance cock direction | clockwise |
| Hairspring stud | fixed |
| Regulator type | Long regulator arm |
| Movement construction | Escapement wheel
Fourth wheel, Third wheel, Center wheel
Mainspring barrel |
| Construction type | solid construction |
| Bridge shape | half-round half-arrow to right, 3 gears |
| Winding mechanism | Rocking bar |
| Setting lever spring | 4 holes |
| Features | s |
| Functions | Hour, minute, small second |
| Beats per hour | 18000 |
| Size | 93/4''' (measured: 21,55 mm) |
| Image in Flume Werksucher | 1947 101 |
|
| Factsheet |
