Q&Q 26
 |
| Q&Q 26 |
|
Description
This is probably the simplest selfwinding movement, ever made: The korean (with japanese parts)
caliber 26 (other speak of caliber 2604 here) from Q&Q is in many parts made of plastic. The
escapement is plastic, the balance bearings, the selfwindig plates and springs and the
gears unter the dial.
 |

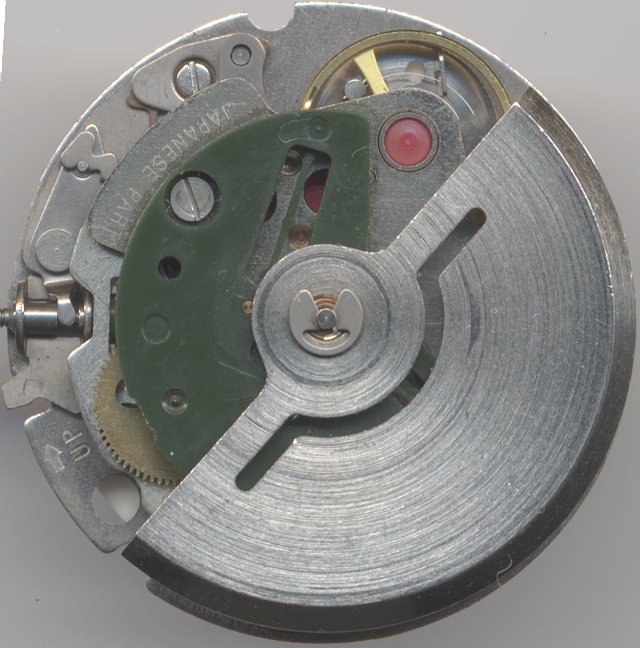

| Escapement |
|
It is pretty astonishing, that this movement was able to run for several years, but the
watches and their large sings of wearing proof this.
 |

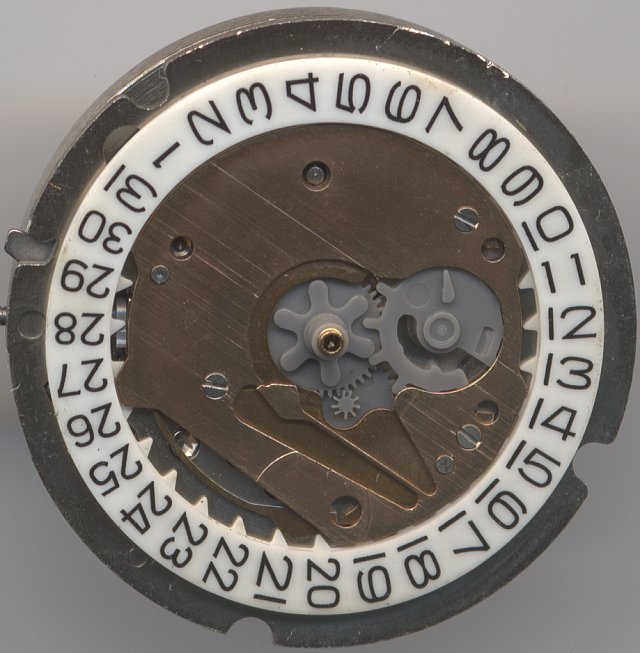

| Dial view |
|
Technical data
| Manufacturer | Q&Q |
| Caliber | 26 |
| Number of jewels | 0 |
| Escapement | Lever with plastic pallets |
| Balance | Nickel |
| Shock protection(s) | none |
| Regulator type | Hairspring key |
| Features | SC,QG,JG,RDR,AUT |
| Functions | Hour, minute, second, day, weekday, selfwinding |
| Beats per hour | 21600 |
| Size | 111/2''' |
|
| Factsheet |
