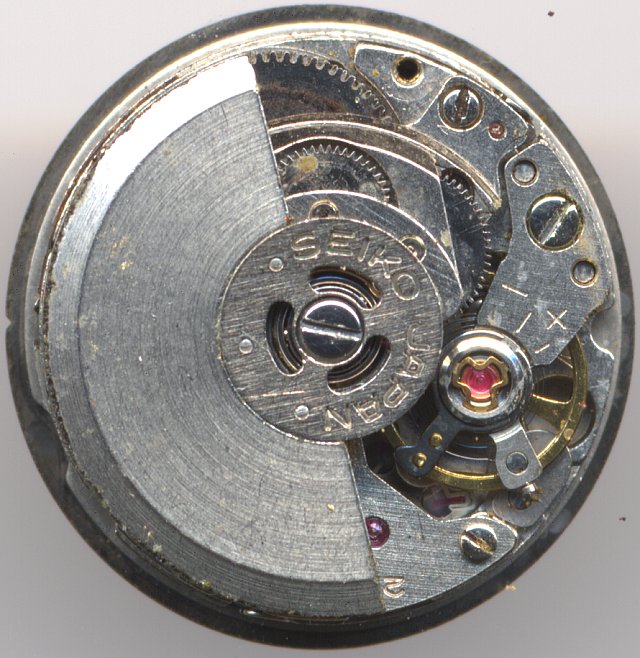

Seiko 2206A
 |
| Seiko 2206A |
|
Description
The Seiko 2206A is a technically interesting ladies' watch movement from Japan.
The small, but rather fat selfwinding movement impresses by its features, since it can
display hours, minutes and seconds as well, as day and weekday.
The mainspring is wound by a bidirectional turning rotor, which works on a rocking
bar mechanism. The Glucydur balance of the 2206A beats with fast 28800 A/h and achieves
a good precision.
An interesting detail of this movement is, that the center second hand is driven
indirectly by gears below the selfwinding plate.
Day and date are advancing slowly, but can be adjusted quicky on the middle crown position.
 |

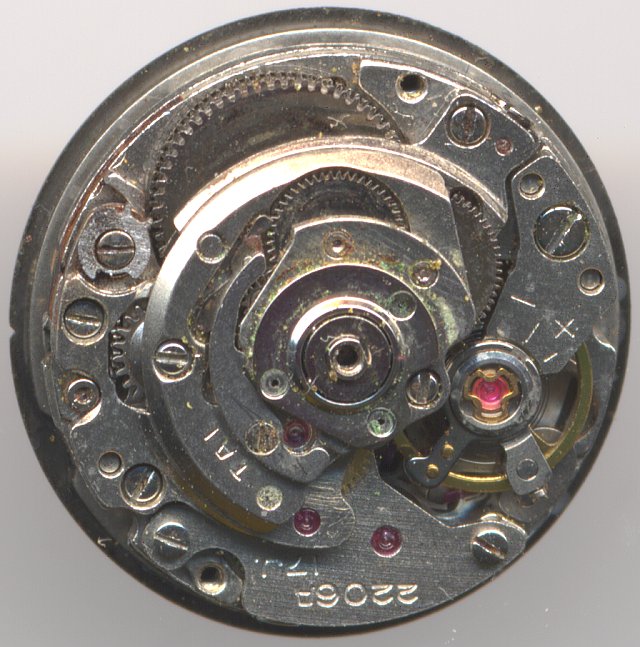

| without rotor |
|
 |

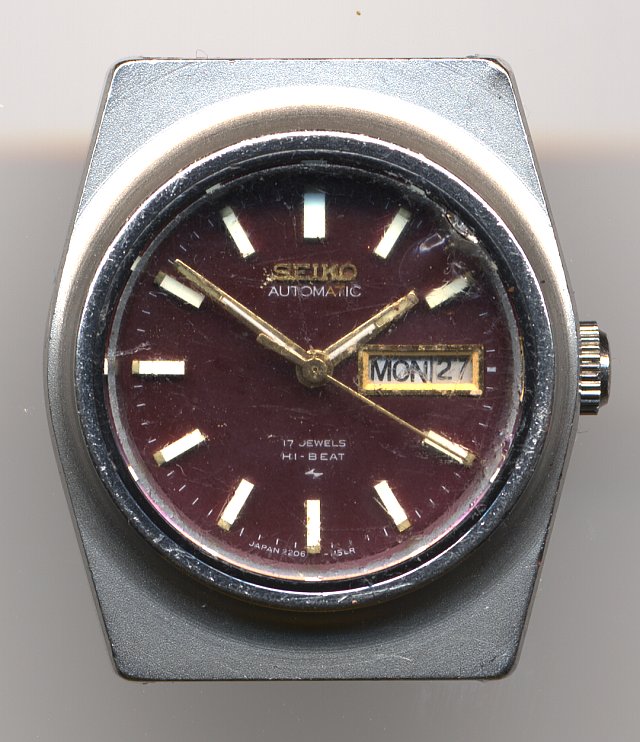

| dial side view |
|
Technical data
| Manufacturer | Seiko |
| Caliber | 2206A |
| Number of jewels | 17 |
| Escapement | Anchor with pallets |
| Balance | Glucydur |
| Shock protection(s) | Diashock (Seiko) |
| Balance cock direction | clockwise |
| Hairspring stud | moveable |
| Regulator type | Hairspring key |
| Features | SCI,QG,JG,RDR,AUT |
| Functions | Hour, minute, second, day, weekday, selfwinding |
| Beats per hour | 28800 |
| Size | 73/4''' |
|
| Factsheet |
