Seiko 4206B
 |
| Seiko 4206B |
|
Description
The last Seiko ladies' selfwinding movement is the caliber 4206(B). It
measures a little less than 8 lignes in diameter, has got a ball beared
quarter-arc rotor and can be handwound.
The enormous amount of functions is astonishing: It does not only display the
hours, minutes and seconds, but also the date and bilingual weekday. Both can be
quickset in the middle crown position.
The Seiko 4206B has got seventeen jewels, an excenter winding mechanism and a
Glucydur balance, which is secured in two inhouse Diashock absorbers.
 |
| dial side view |
|
Technical data
| Manufacturer | Seiko |
| Caliber | 4206B |
| Number of jewels | 17 |
| Escapement | Anchor with pallets |
| Balance | Glucydur |
| Shock protection(s) | Diashock (Seiko) |
| Balance cock direction | clockwise |
| Hairspring stud | moveable |
| Regulator type | Hairspring key |
| Features | SC?,QG,JG,RDR,AUT |
| Functions | Hour, minute, second, day, weekday, selfwinding |
| Beats per hour | 21600 |
| Size | 73/4''' |
|
| Factsheet |

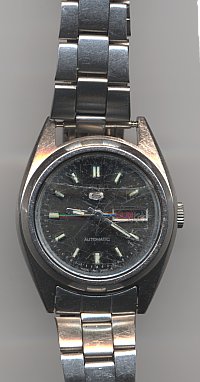

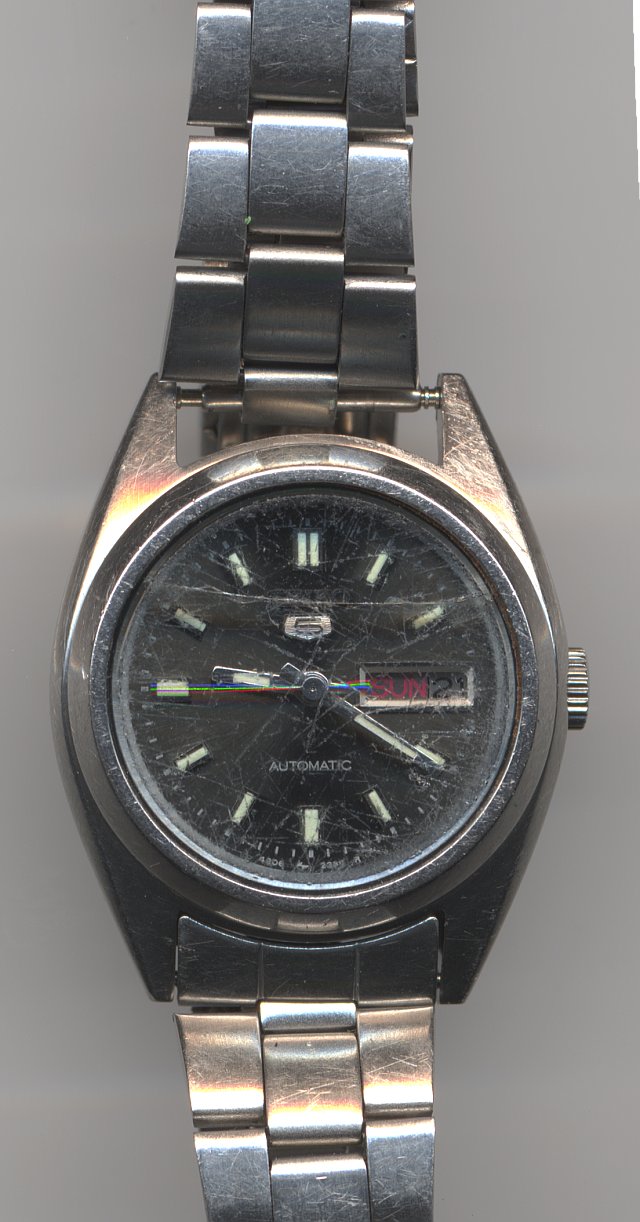

Usage gallery
