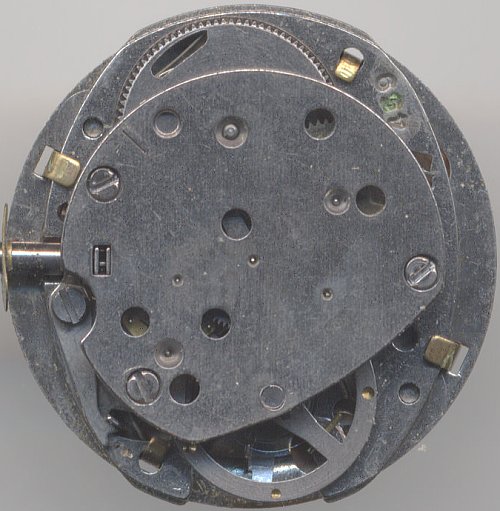

Timex M100
 |
| Timex M100 |
|
This movement is a generic ladies' watch movement, which only shows
hour and second. Different than on its relative
caliber M78, the dial is mounted
with a spacer on the main plate.
There do exist other versions of this caliber, which are using the center
second.
Technical data
| Manufacturer | Timex |
| Caliber | M100 |
| Number of jewels | 0 |
| Escapement | pin lever |
| Balance | Nickel |
| Shock protection(s) | none |
| Balance cock direction | centered (bridge) |
| Hairspring stud | fixed |
| Regulator type | Hairspring key |
| Movement construction | Fork, Escapement wheel, Fourth wheel, Third wheel, Large driving wheel, Mainspring barrel |
| Features | (SCD) |
| Functions | Hour, minute,(s) |
| Beats per hour | 18000 |
| Size | 8 x 91/2''' |
|
| Factsheet |

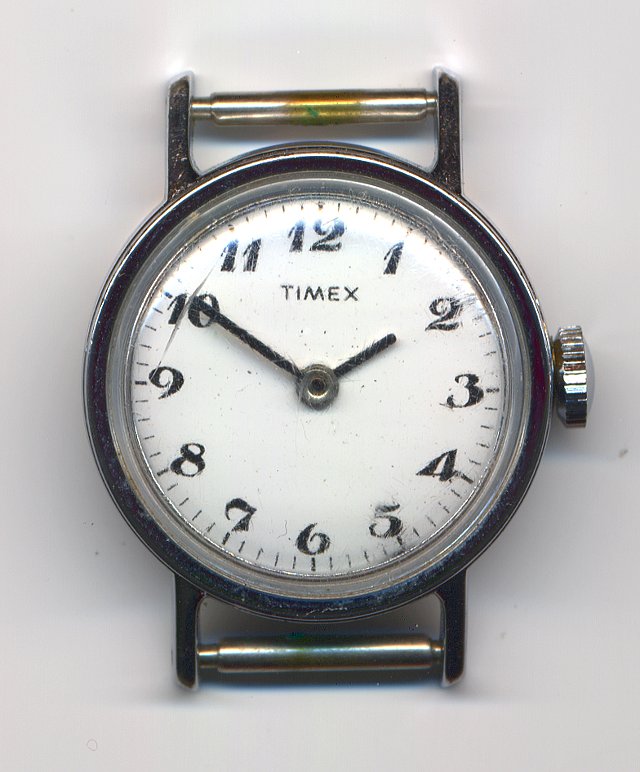

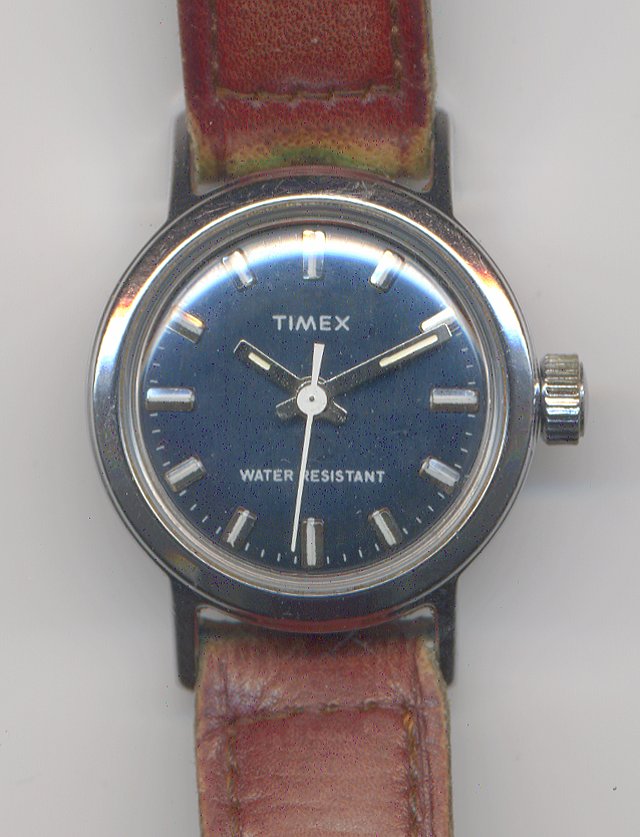

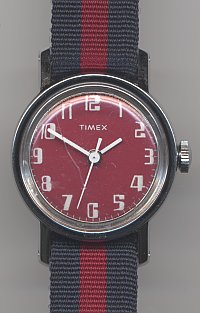

Usage gallery
