Timex M101
 |
| Timex M101 |
|
Description

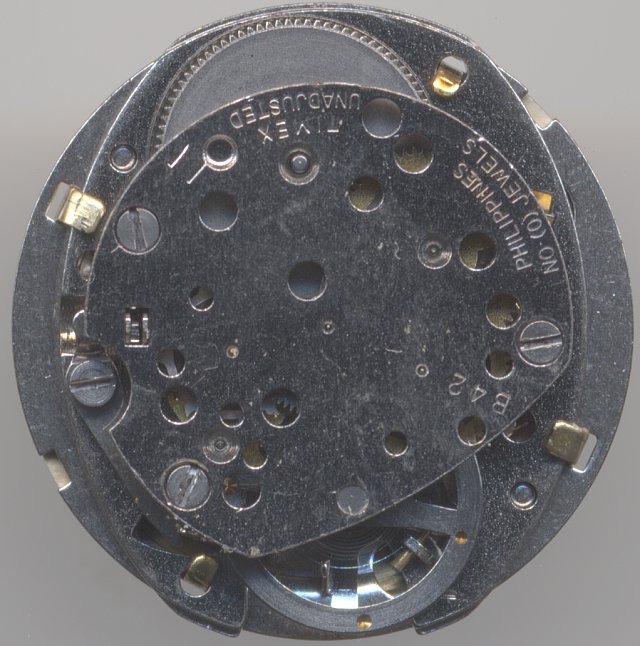

The Caliber M101 was made in the very last years of mechanical Timex
movements, in 1984. As all other movements of the series 100, it bases on the
caliber M100. The caliber 101 only adds a
date indication.
It is a very simple and rugged pin lever movement. Theoretically it can be
serviced, but normally, defective movements are swapped and easily replaced by
working ones.
Technical data
| Manufacturer | Timex |
| Caliber | M101 |
| Number of jewels | 0 |
| Escapement | pin lever |
| Balance | Nickel |
| Shock protection(s) | none |
| Balance cock direction | centered (bridge) |
| Hairspring stud | fixed |
| Regulator type | Hairspring key |
| Movement construction | Fork, Escapement wheel, Fourth wheel, Third wheel, Large driving wheel, Mainspring barrel |
| Features | SCD,QG |
| Functions | Hour, minute, second, day |
| Beats per hour | 18000 |
| Size | 91/2''' |
|
| Factsheet |

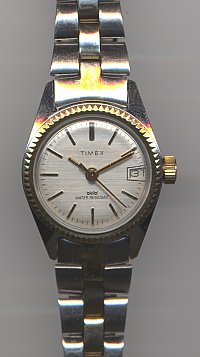

Usage gallery
