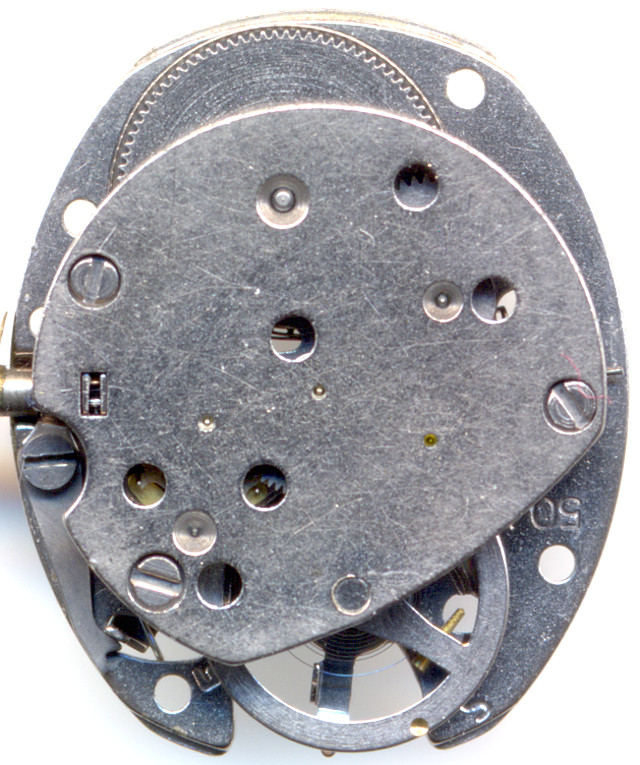

Timex M78
 |
| Timex M78 |
|
This movement is a variation of the generic ladies' watch movement
Timex M100. In this simplest version, only with
hour and minute indication, the dial is mounted directly onto the movement
plate without spacer. In contrast to other Timex movements, it is
directly servicable, as is uses traditional screws.
As all simple timex movement, it uses no jewels and beats with slow
18000 A/h.
| Manufacturer | Timex |
| Caliber | M78 |
| Number of jewels | 0 |
| Escapement | pin lever |
| Balance | Nickel |
| Shock protection(s) | none |
| Balance cock direction | centered (bridge) |
| Hairspring stud | fixed |
| Regulator type | Hairspring key |
| Movement construction | Fork, Escapement wheel, Fourth wheel, Third wheel, Large driving wheel, Mainspring barrel |
| Functions | Hour, minute |
| Beats per hour | 18000 |
| Size | 8 x 91/2''' |
|
| Factsheet |
