Uhrwerk with cylinder escapement

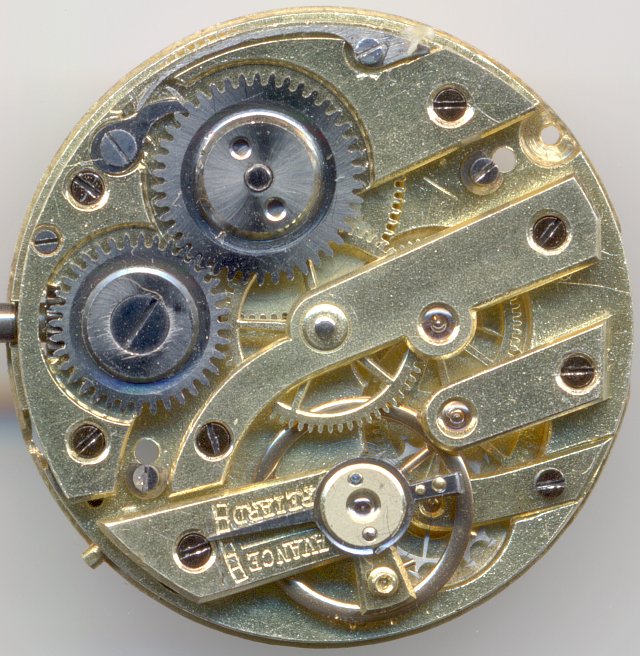

unidentified movement with cylinder escapement
unidentified movement with cylinder escapement

This old cylinder movement without markings has got 10 jewels.
Its mounting diameter is 25.3mm, which equals 11 1/2 lignes.

Its construction is characteristic for a contemporary cylinder movement, it probably dates from the early 20th century.

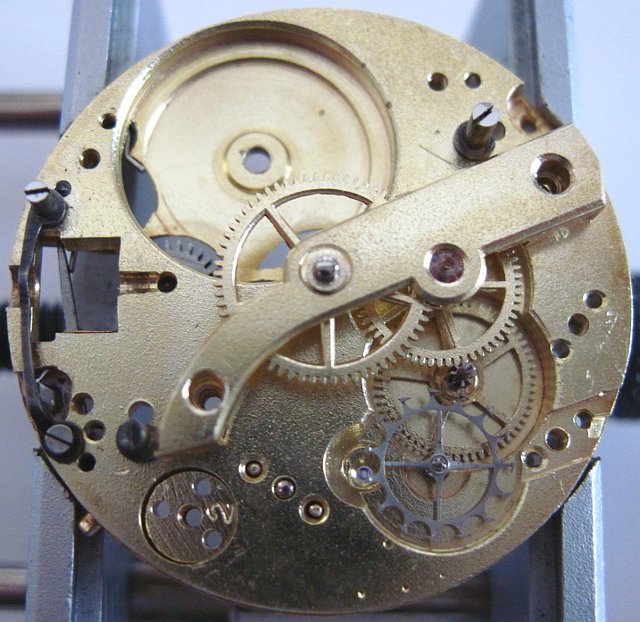

motion works
motion works

The motion works is not able to display a decentral second hand, as you can see here.

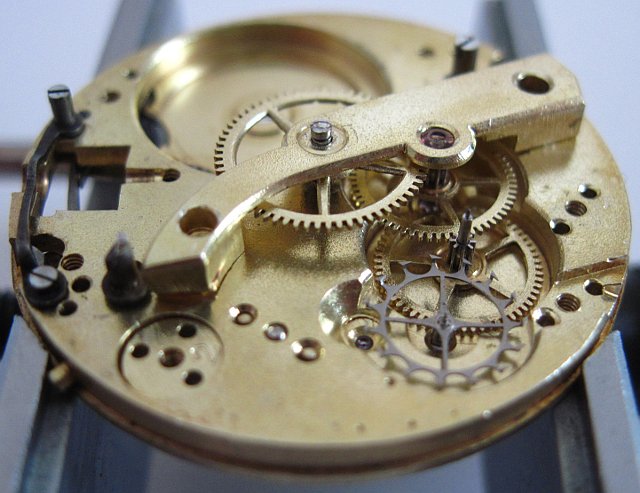

side view
side view

The cylinder wheel has got 15 teeth.

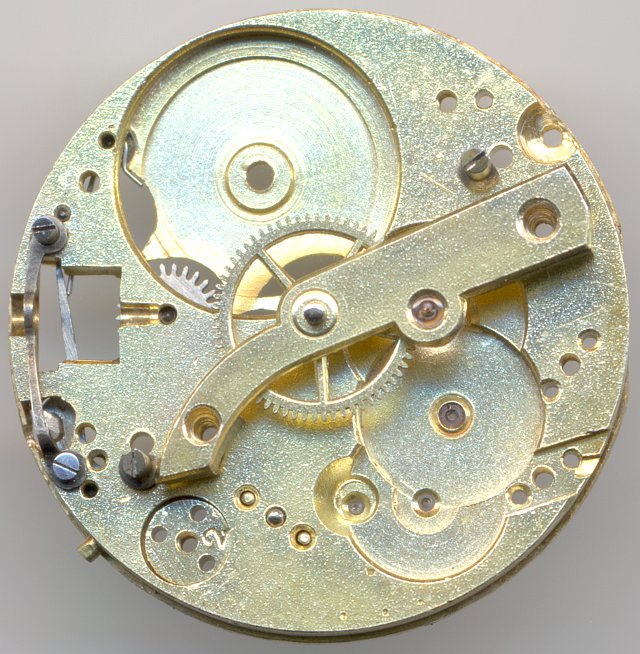

main plate
main plate

On this specimen, the minute wheel bridge cannot be unmounted, since the minute wheel has got a cannon pinion mechanism on the movement side (above the bearing ruby), which cannot be released without damage.

dial side view
dial side view

By pressing a sunken lever at "4", you can switch the swinding mechanism between winding and setting the hands.

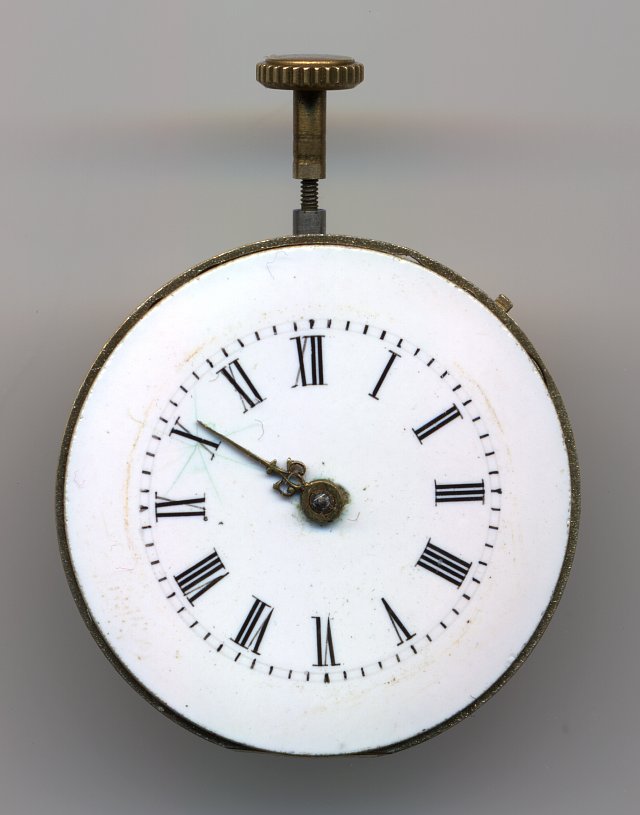

anonymous pocket watch
anonymous pocket watch

This movement was donated by Harald Hoeber. Thank you very much!
