HB 313

Description

At the beginning of the 60ies, the movement manufactury Hermann Becker of Pforzheim, Germany released their last selfwinding movement, the caliber 313, called “Ultramatic”.

The HB 313 is a 11 1/2 ligne selfwinding movement whose rotor winds in both directions with a rocking bar winding system. It contains a contemporary two-leg ring balance, which is beared in two Antichoc S65 (or Rufa-Anti-Shock on the movement side) shock protection systems. The hairspring is connected to a moveable stud and can be regulated by a short regulator arm.

The selfwinding mechanism features a rocking bar changer, which drives the crown wheel via a friction clutch. This clutch decouples the selfwindig mechanism when the movement is manually wound.

The 25 jewel movement has got a directly driven center second hand and on the dial side a yoke winding mechanism and a number of cap jewels to reach the high nimber of 25 jewels.

The large date ring advances slowly and can be corrected semi-fast by turning the time back and forth.

During its production time, the movement was changed a bit, the (probably) older version which was marked with the old “HB” marking, had a massive balance cock.

HB 313: movement view of the old version

movement view of the old version

HB 313: movement view without rotor

movement view without rotor

HB 313: movement view without rotor of the old version

movement view without rotor of the old version

HB 313: selfwinding mechanism

selfwinding mechanism

HB 313: without selfwinding mechanism, old version

without selfwinding mechanism, old version

HB 313: empty main plate, old version

empty main plate, old version

HB 313: HB 313 dial side

HB 313 dial side

HB 313: dial side view, old version

dial side view, old version

Technical data

Manufacturer:HB
Caliber:313
Size:11 1/2''' (measured: 25,4mm)
A/h:18000
lift angle:52°
Number of jewels:25
Escapement:Pallet lever
Balance types: Nickel anular balance
Shock protection(s): Antichoc S65
Rufa-Anti-Shock
Balance bearing / direction hairspring:Clockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:1 hole(s)
Features:
  • SCD (direct center seconds)
  • QG (date indication (aperture))
  • RDR (date corrector)
  • AUT (selfwinding)
References: Flume: K3 207
Mentioning in literature (years): 1964

Usage gallery

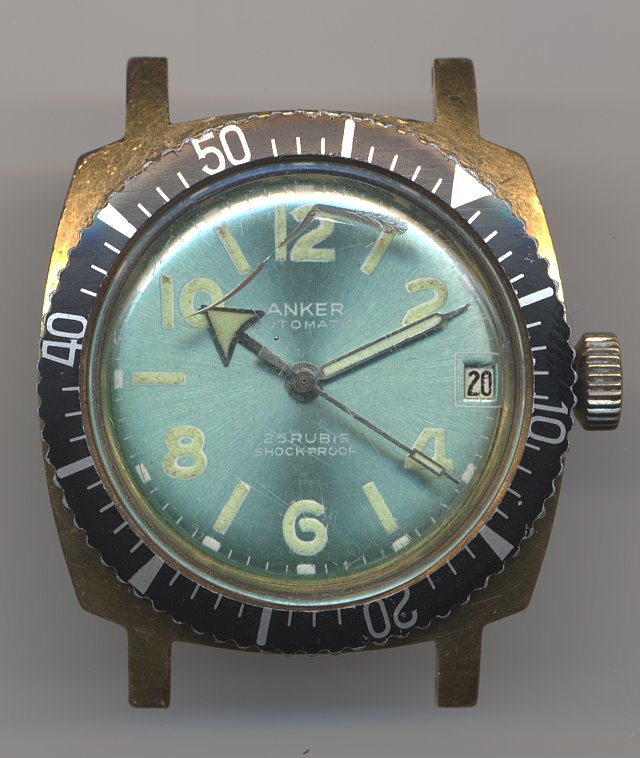

HB 313: Anker selfwinding divers' watch

Anker selfwinding divers' watch

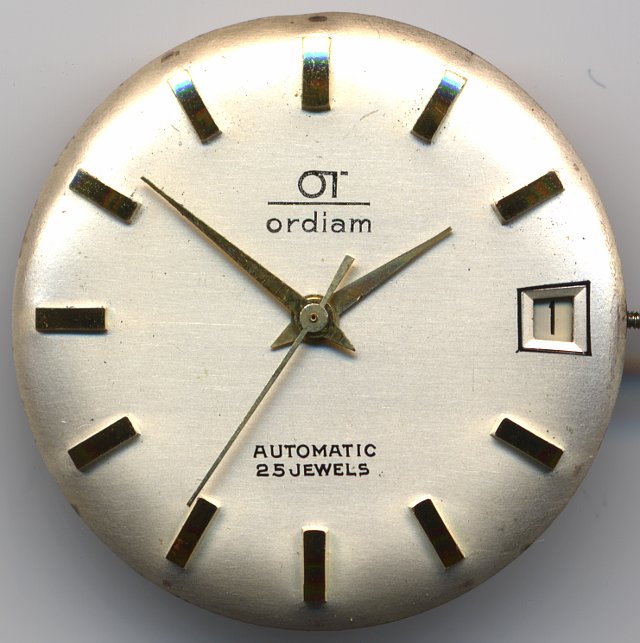

HB 313: Ordiam gents watch  (dial only)

Ordiam gents watch (dial only)
